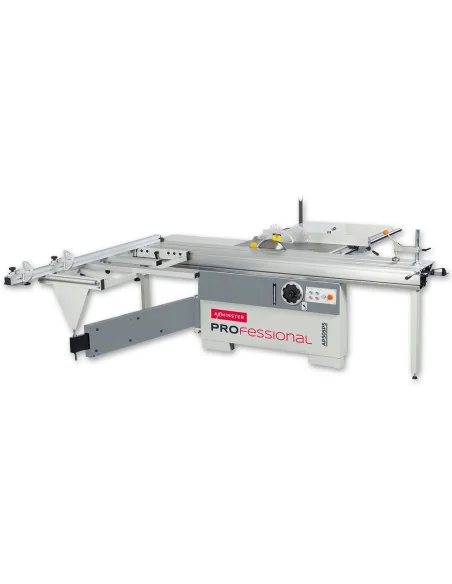

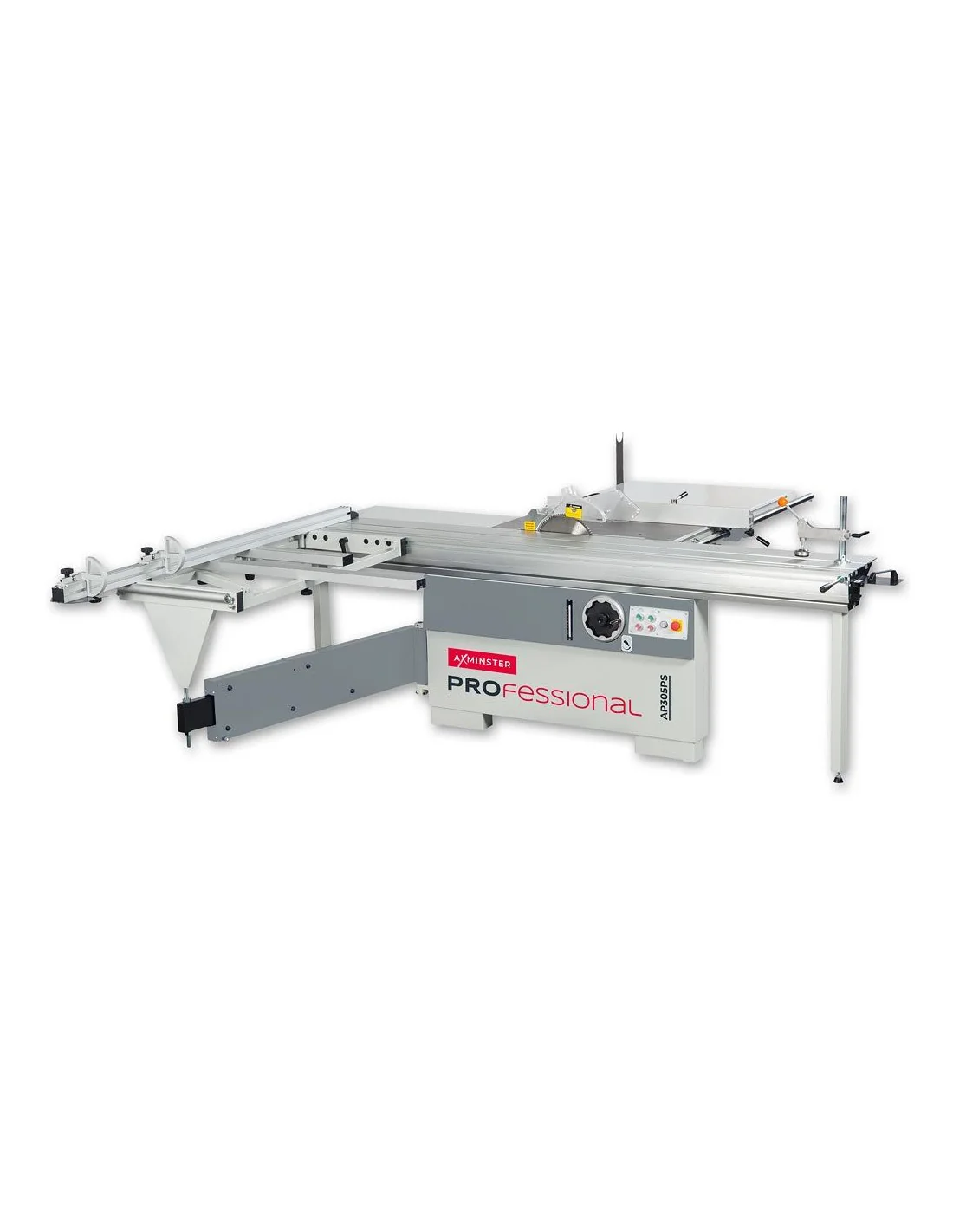

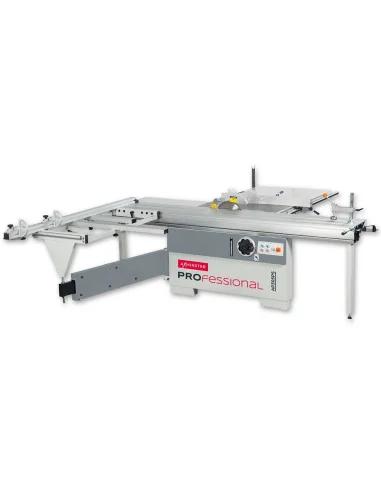

    Форматен циркуляр Axminster Professional AP305PS - 230V

    107663
    Няма наличност!
    18809,94 лв.
    • Powerful, accurate, compact panel saw
    • Crosscut frame fully supported by a heavy duty telescopic arm
    • Indepentently adjustable120mm scoring blade
    -bg

    Описание

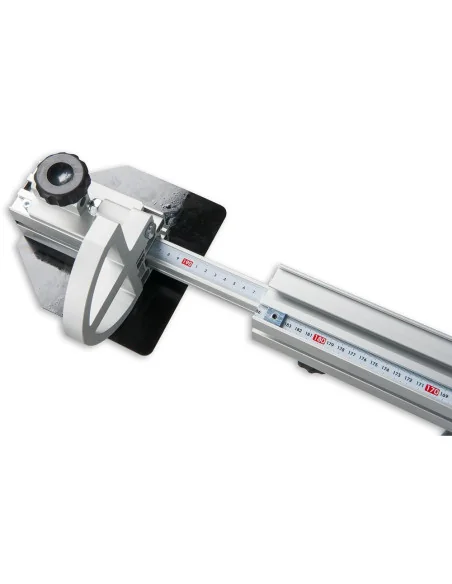

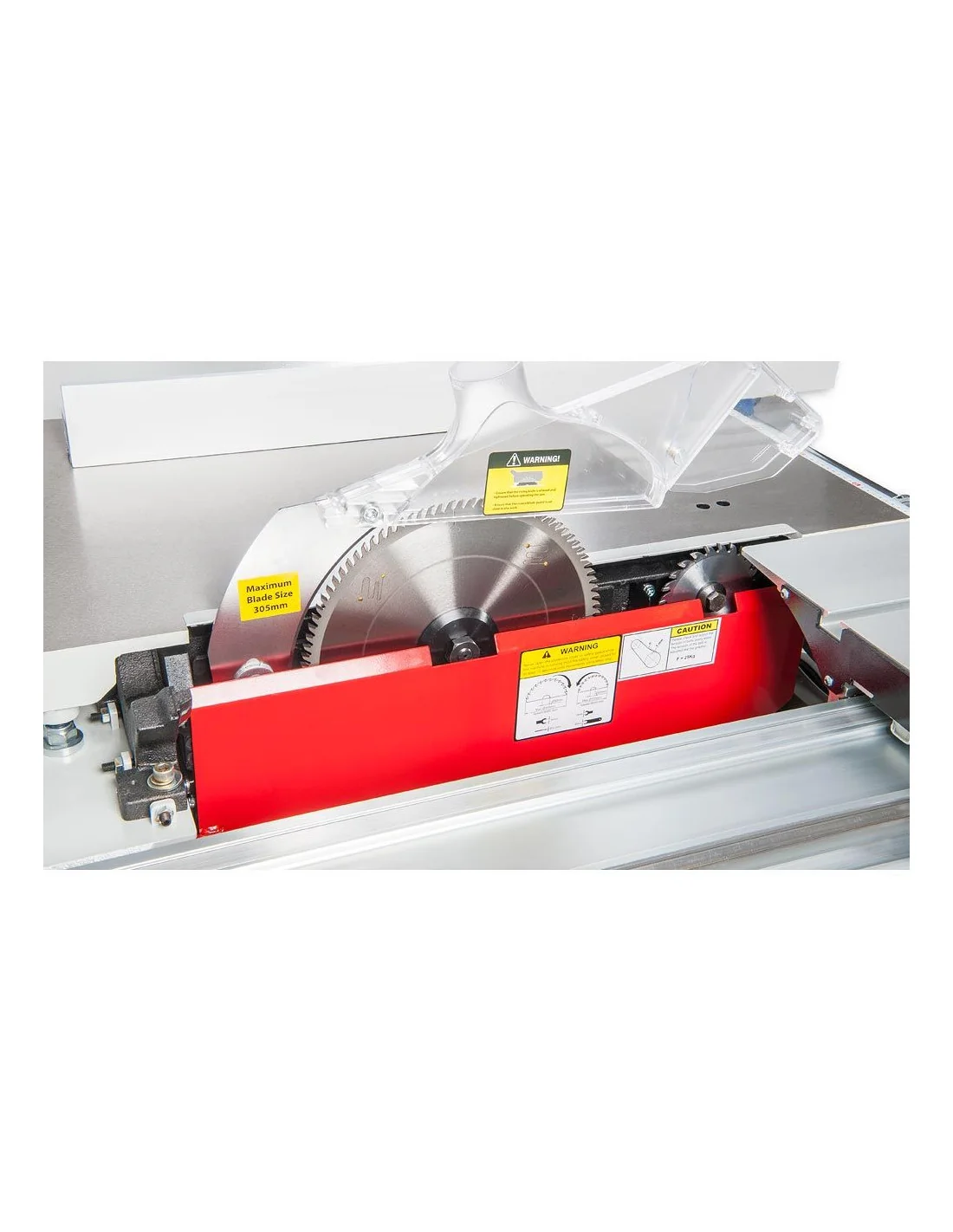

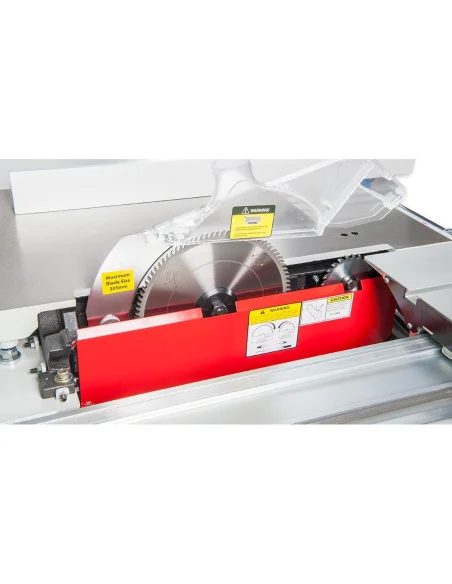

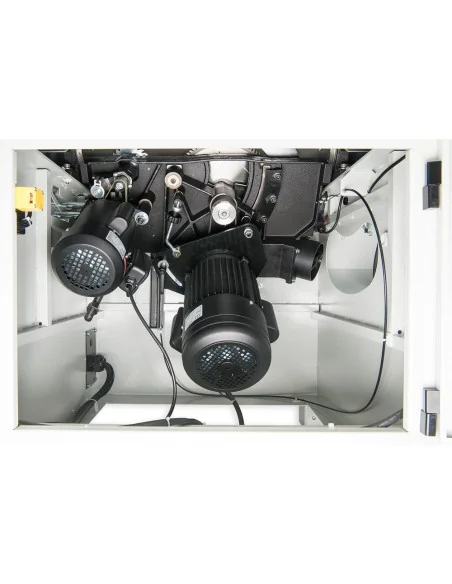

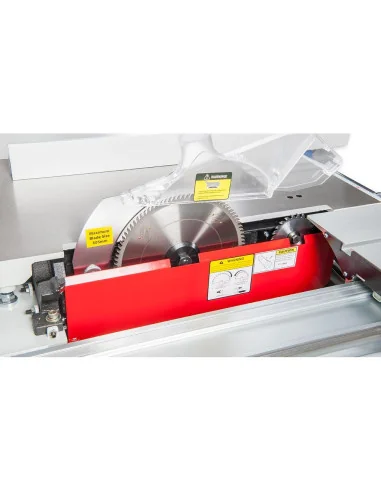

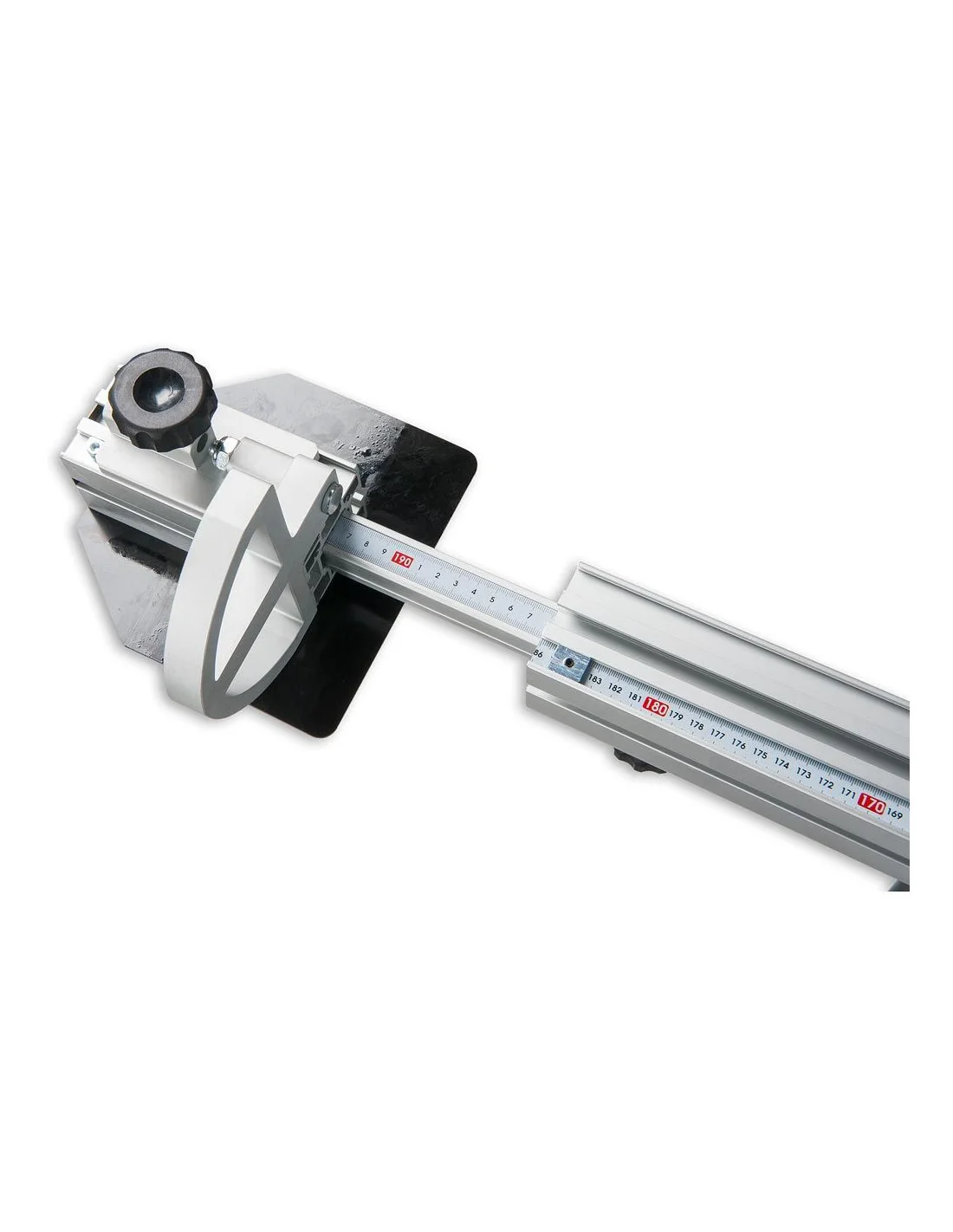

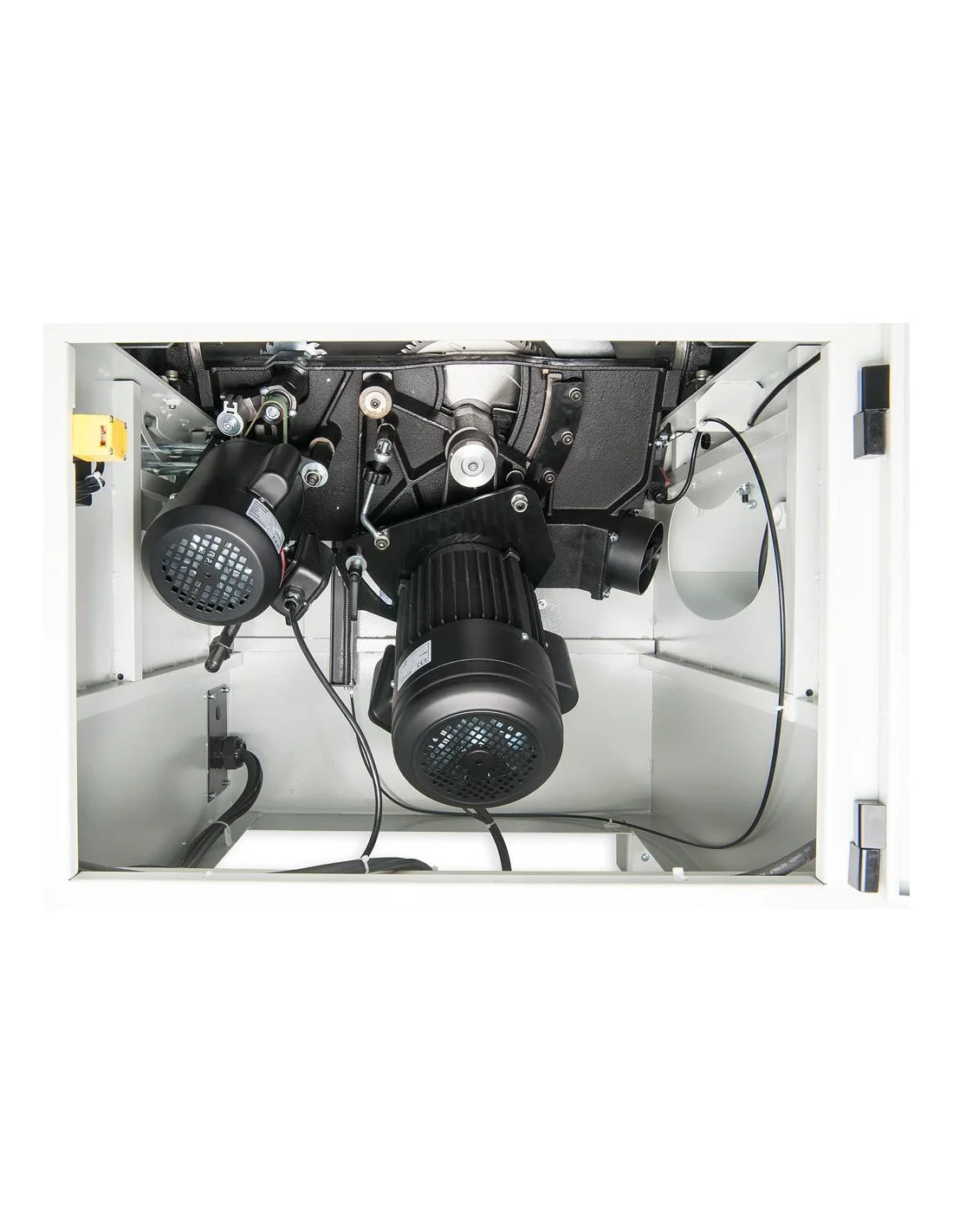

    The Axminster AP305PS is packed with all necessary functions and features required from a panel saw in a small professional modern workshop. This is a well built machine with a heavy gauge steel base and a generous cast iron table, providing stability and vibration free running. The machine is fitted with separate main blade and scoring motors. Both blades are independently adjustable. The 305mm main blade gives a maximum depth of cut of 90mm. The blade is driven by a 2.2kW braked motor via a multi-V-belt ensuring quiet operation with high reliability. The 2,600mm sliding table runs very smoothly, carries a sizable crosscut table and includes a long mitre fence complete with length stops. The sliding table's travel easily handles a standard 2,440 x 1,220mm panel. The crosscut table can be removed if required, saving space when not needed. Rear outfeed and right hand support tables are included, giving a sizable working area for sheet work. An Axcaliber Premium 96 tooth low noise, fine crosscut blade is included. Efficient dust control from the blade is via a direct dust outlet and ensures dust free operating when connected to a suitable extraction system. The AP305PS combines accuracy with ease of use, a great asset to any busy workshop. N.B. This Machine requires a 32amp supply and it's recommended that a C Type breaker is used, if you are unsure please contact a qualified electrician. The optional Overhead Crown Guard Kit is recommended for more efficient dust collection from above the blade.-bg

    Подробности за продукта

    Размер на таблицата
    896 mm x 548 mm
    Обороти на острието
    4,000 rpm
    Височина на масата
    880 mm
    Максимална дълбочина на рязане при 45º
    370 mm
    Наклон на острието
    0° to 45°
    Максимална ширина на рязане с ограда
    1,300 mm
    Отвор на острието за точкуване
    20 mm
    Диаметър на острието за пробиване
    120 mm
    Размери на плъзгащата се маса
    2,600 mm x 360 mm
    Ход на плъзгащата се маса
    2,500 mm
    Обща дължина x ширина x височина
    2,765 mm x 3,520 mm x 1,100 mm
    Изход за прахоулавяне
    120 mm & 64 mm
    Монтиран щепсел
    UK 32A Plug
    Захранване
    2.25 kW
    Нетно тегло
    480 kg
    Рейтинг
    Trade/Professional
    Необходим минимален въздушен поток за извличане
    1,500 m³/hr
    Брой двигатели
    2
    Напрежение
    230 V
    Диаметър на острието
    305 mm
    Размер на отвора
    30 mm
    Максимална дълбочина на рязане при 90º
    90 mm
