Veritas Low Angle Smoothing Planes
Veritas Low Angle Smoothing Planes

Veritas Low Angle Smoothing Planes

  • Shootg mitres or cleanly slice end-grain
  • Adjustable mouth with unique stop-screw
  • Combined feed and lateral adjustment knob for blade setting
  • Ductile cast iron body
  • Supplied with either O1 or PM-V11 lapped 25° blade
Plane Blade Type
717397
Няма наличност!
BGN662.45

Description

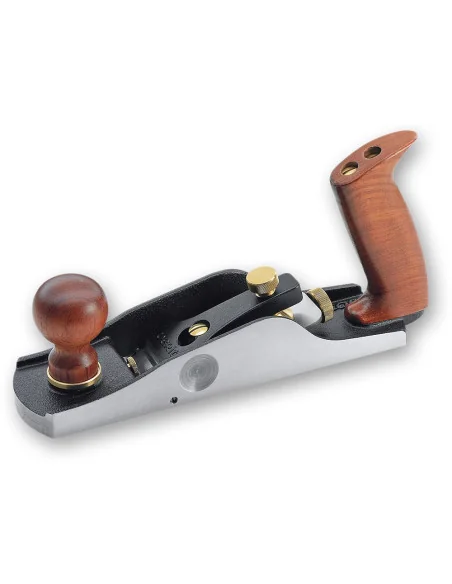

A low angle smoothing plane has three key uses. It is used to smooth surfaces, preferably taking a diagonal cut, partly across and partly along the grain. With its generous side wings, it is ideal for shooting mitres and great for end-grain work. The low cutting angle of 37° minimises fibre tearing. With a bed angle of 12°, this is a bevel-up plane like a low angle block plane. It features an adjustable mouth with a unique stop-screw, a combined feed and lateral adjustment knob for blade setting, and a generous hardwood front knob and rear handle. The ductile cast iron body is 254 x 63mm(10" X 2.1/2"). Overall weight is just over 1.1kg(3.1/2 lb.). The supplied 25° bevel blade is 50mm(2") wide by 3.2mm(1/8") thick, lapped, and available in O1 or PM-V11 alloy steel. For working difficult grain, additional blades are available with 38° or 50° bevels. The lapped blades have a flatness tolerance of ±0.005mm or better over the working surface, and with an average roughness surface finish of 0.000127mm(5 micro inches) or better.

Product Details

Nett Weight
1.6 kg (3lb 8oz)
Plane Blade Width
50 mm (2")
Sole Length
254 mm
5052511076437
