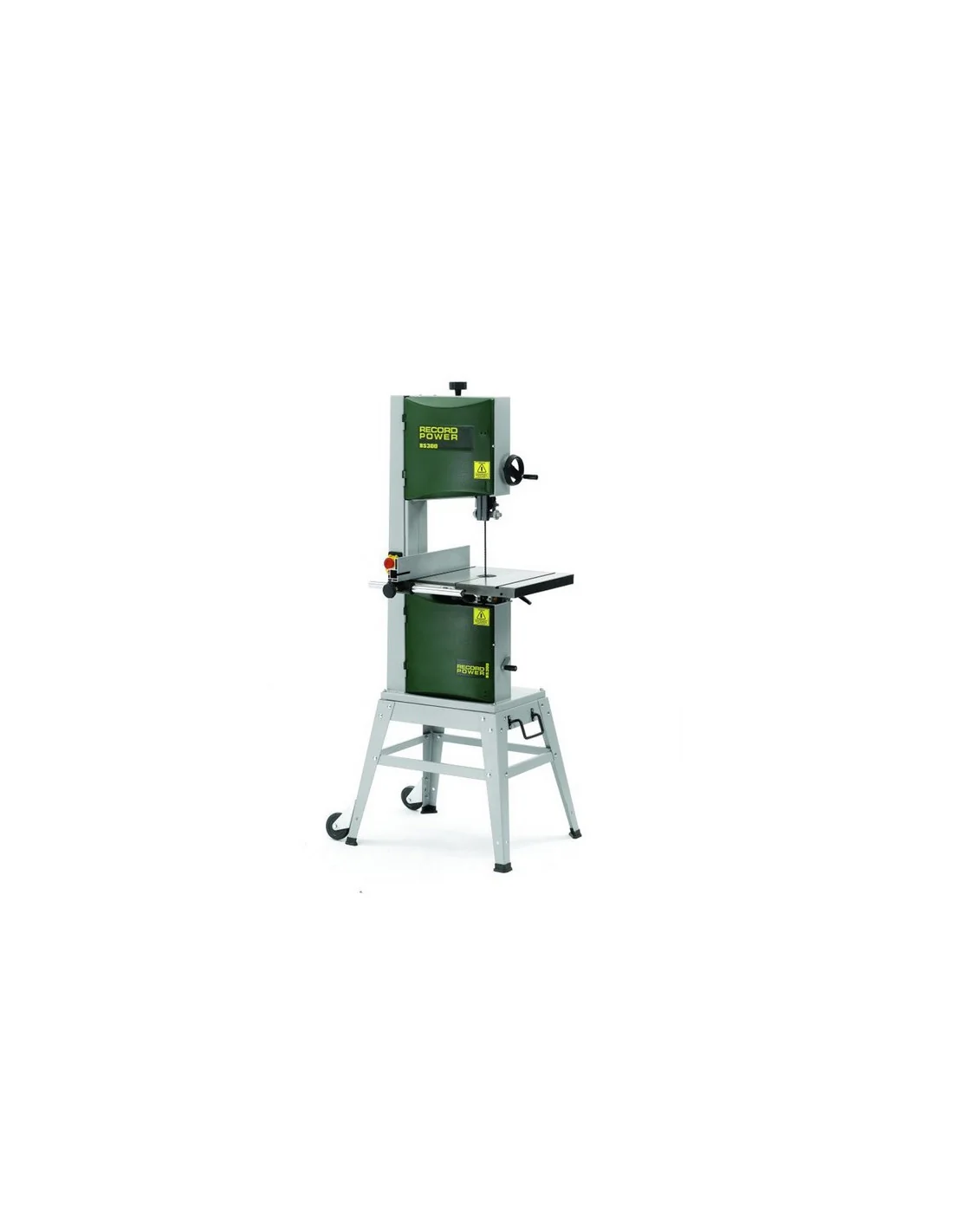

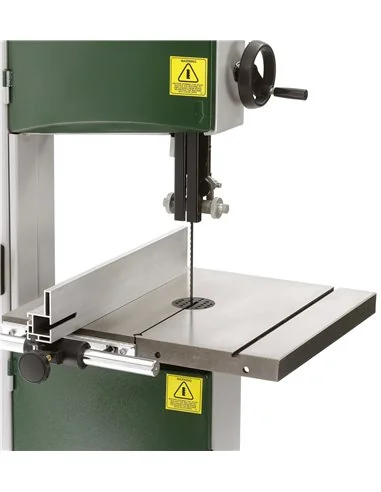

The Record Power BS300E is a great all rounder perfectly specified for the medium sized workshop where a range of duties will be required.Featuring a solid fence, vital for accurate ripping, which has a heavy extrusion mounted on a cast iron base and fixed to a solid steel bar for maximum rigidity and support.This is based on an industrial Startrite design and much more solid than other fences at this level.

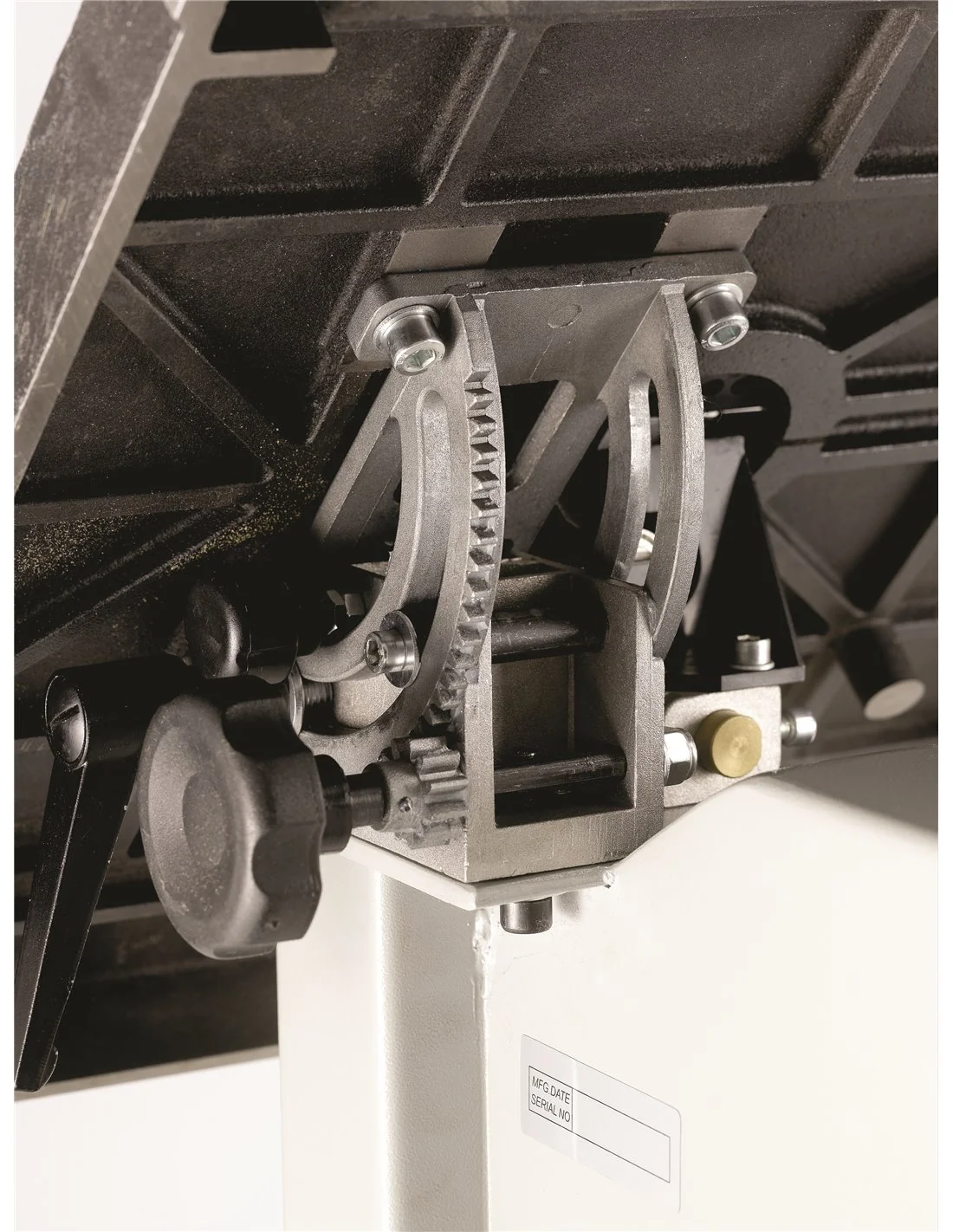

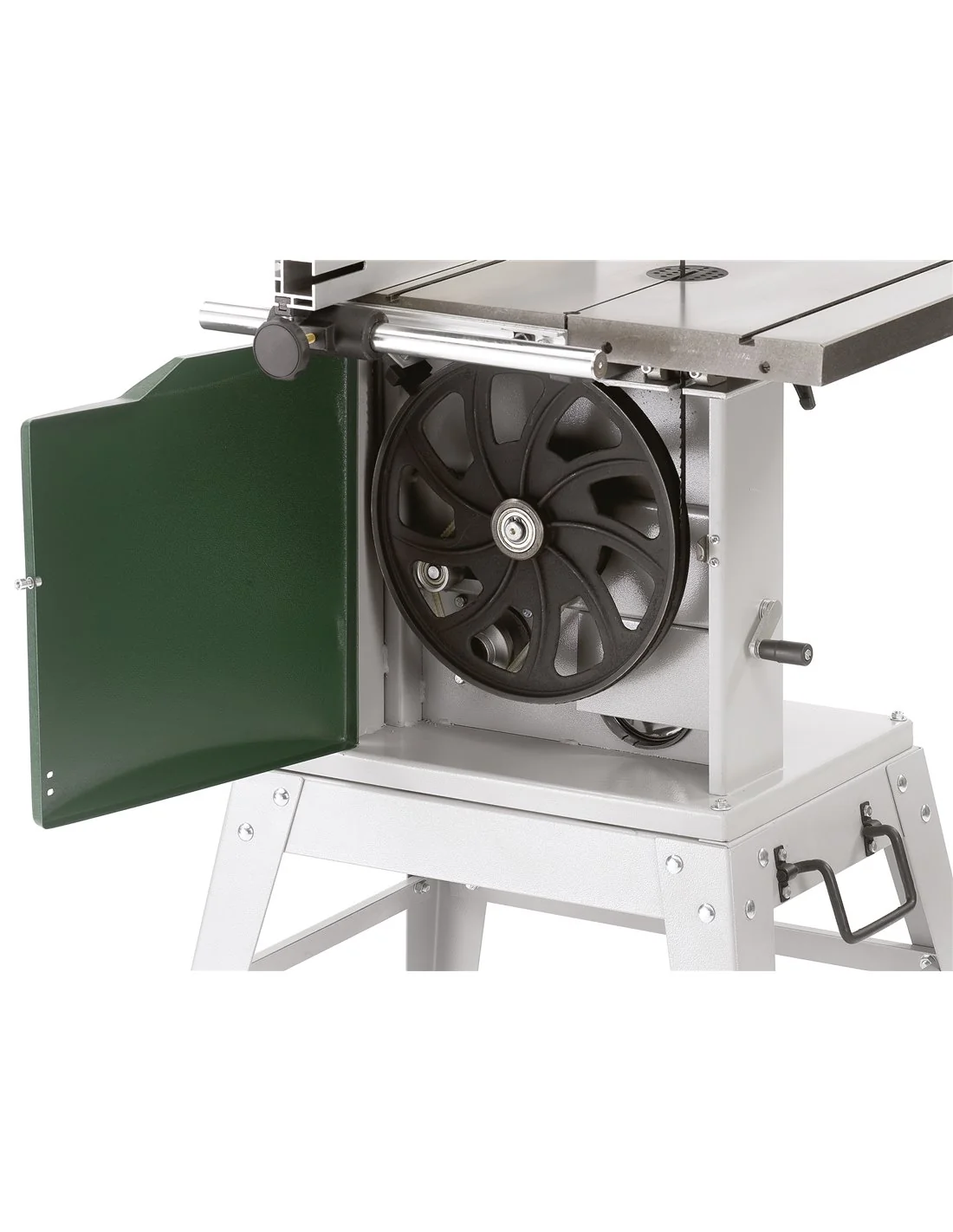

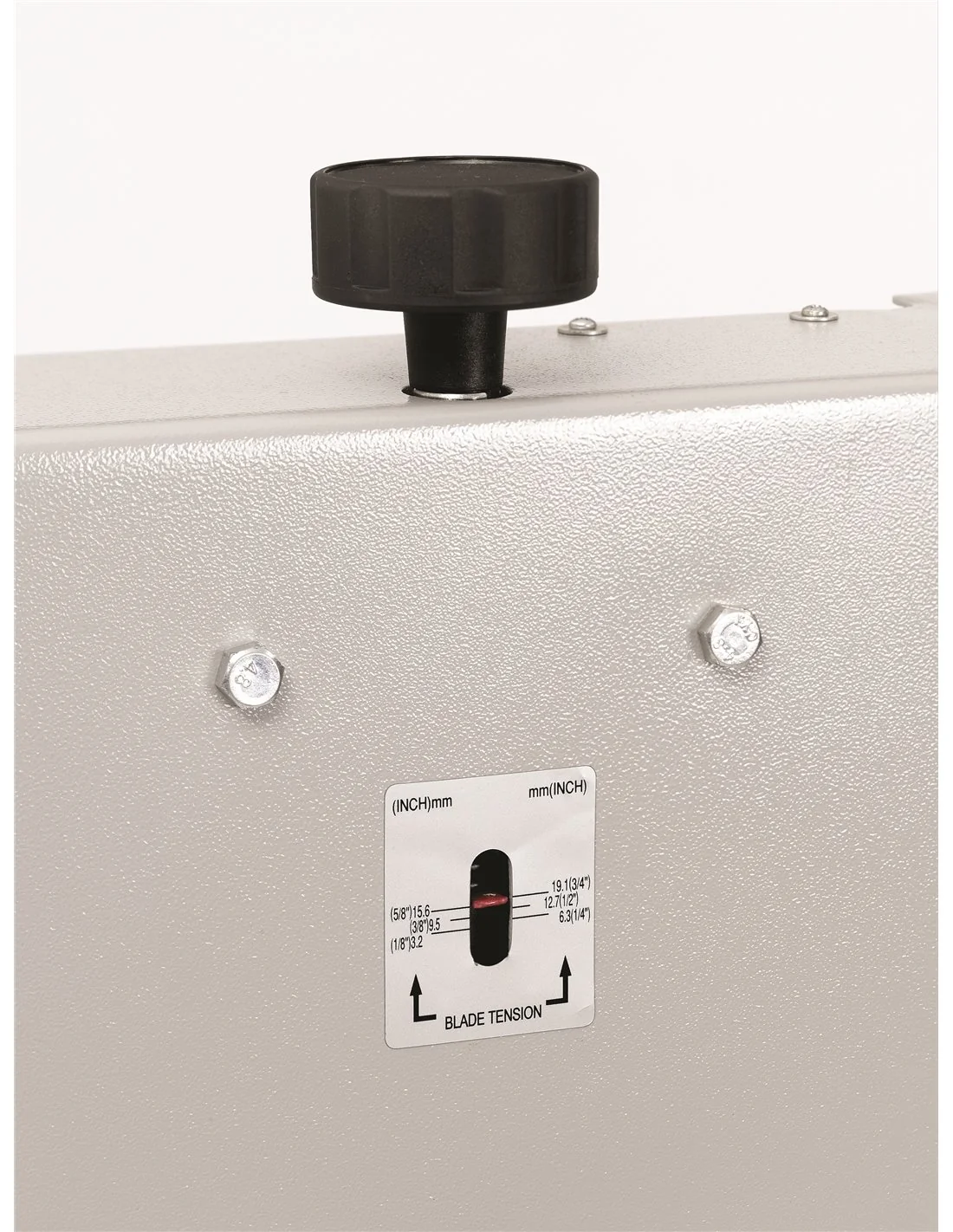

The machine also features a solid double trunnion fence mount to provide rigid table support and one-handed table tilt on a smooth rack and pinion. Adding to the structural integrity of the BS300E are the cast iron bandwheels which are fitted with precision ground rubber tyres to provide a flywheel effect for smooth cutting. A solid blade tension indicator is fitted to the rear of the machine to allow for easy setup. Microswitches are fitted top and bottom for added safety, cutting power to the machine if the doors are opened.The BS300E is also supplied with a basic wheelkit as standard.
Spec
- Maximum Depth of Cut: 190 mm
- Throat Depth: 305 mm
- Table Size: 480 x 400 mm
- Table Height from Floor: 990 mm
- Motor input P1: 1 kW
- Motor output P2: 0.75 kW
- Blade Length: 93 1/4"
- Blade Width Capacity: 1/4 - 3/4"
- Blade Speed: 820 & 380 M / minute
- Extraction Port Diameter: 100 mm
