Proxxon PD 250/E Precision Lathe - 5608 -

Proxxon PD 250/E Precision Lathe - 5608 -

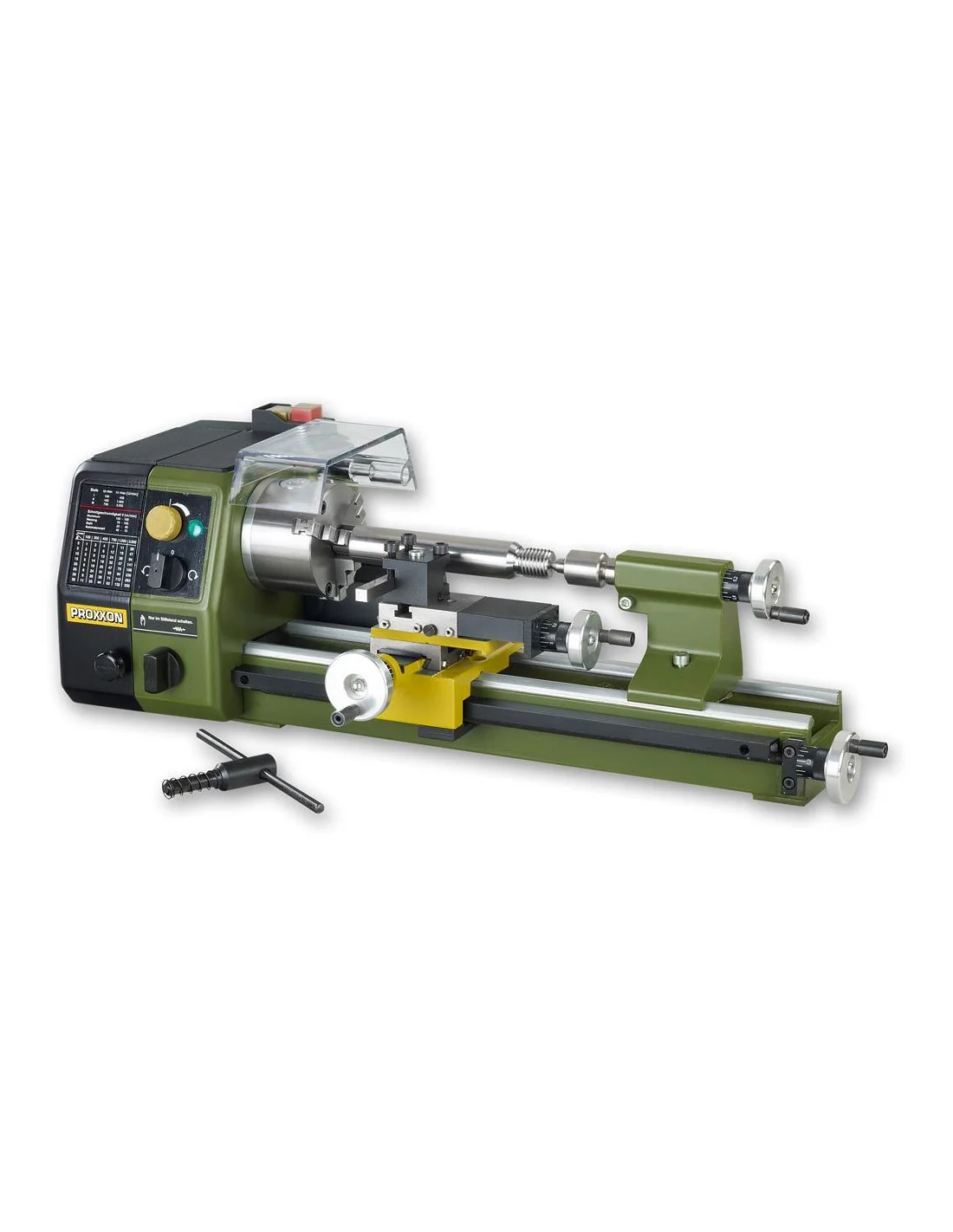

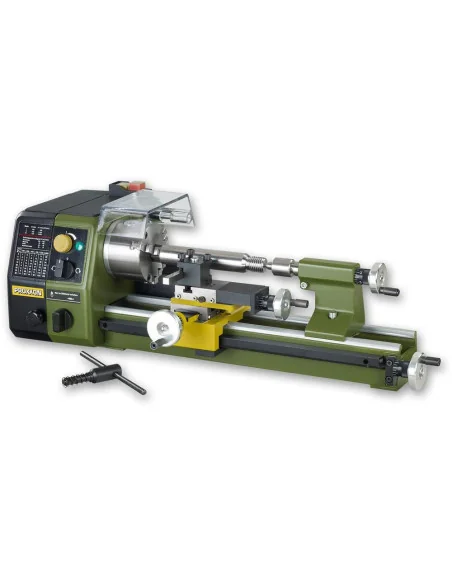

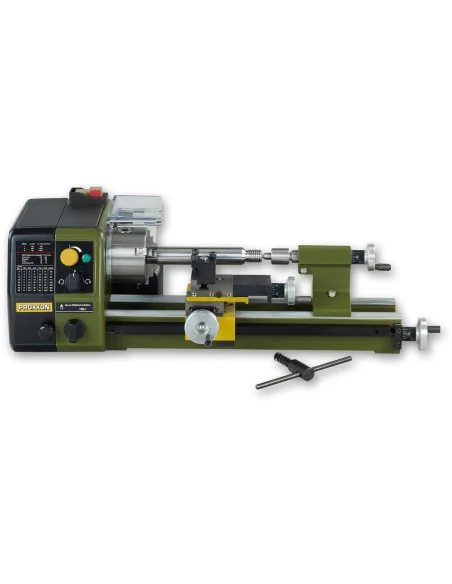

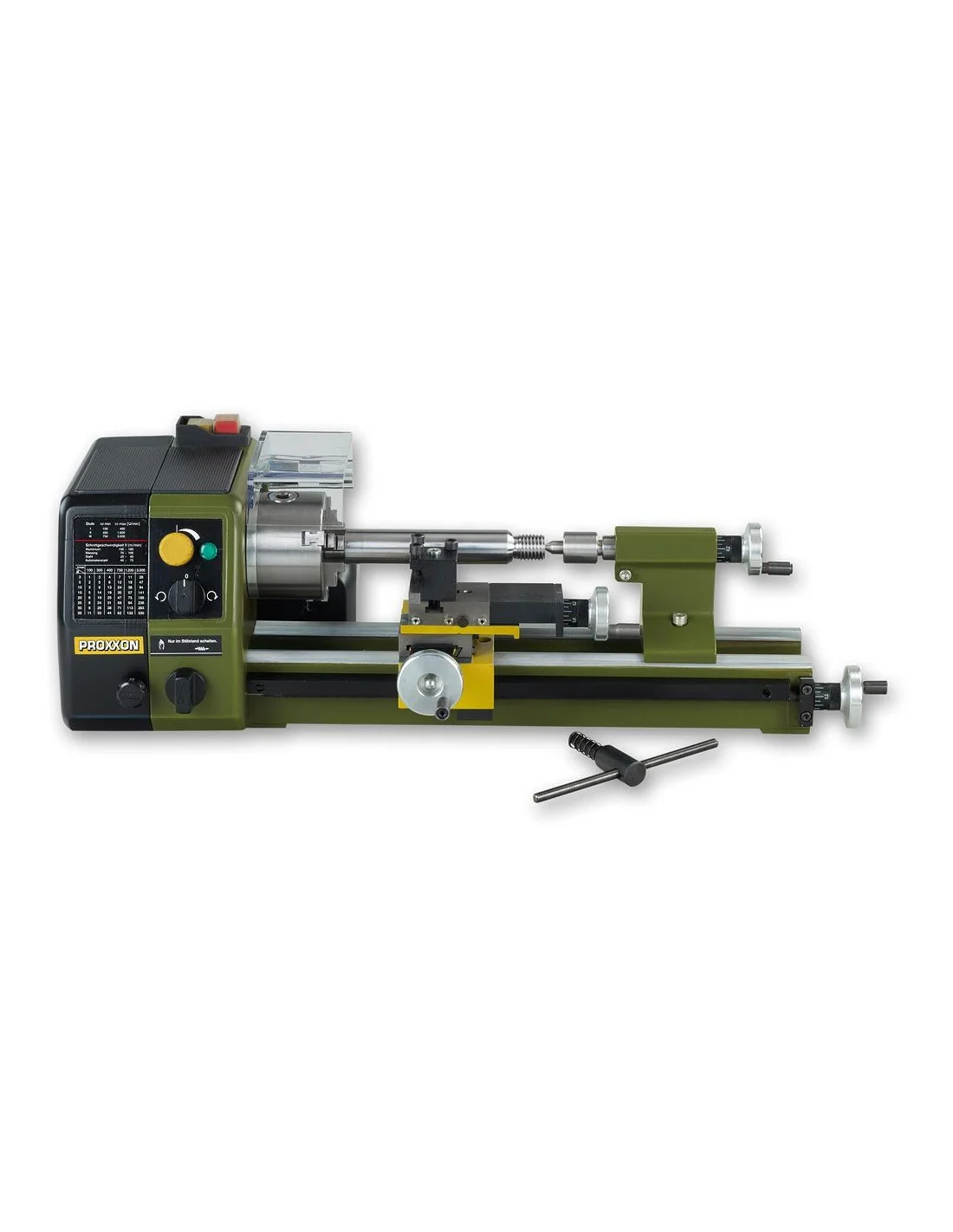

PROXXON PD 250/E Precision Lathe

Reference 507249

BGN3,456.45

Impressive 250mm between centres and 140mm swing
Automatic feed and thread cutting facilities
Electronic speed control; spindle range of 100rpm to 3000rpm

Description

The PROXXON PD250/E has the capacity between centres of 250mm, and a swing of 140mm with an impressive 43mm over the slide. It has an automatic feed, thread cutting facilities, headstock chuck, live centre and top slide for taper turning. Equipped with an electronic speed control with a spindle range of 100rpm to 3000rpm, depending on belt ratio. The lathe chuck has a high quality 3-jaw chuck made to DIN 8386 Class 1 (concentricity tolerance 0.04mm). Capacity through reversing jaws is from 2-75mm. Included is a lathe chuck guard with safety shutdown. The lathe has a mounting plate for the PF230 mill/drill head to be fixed to it and a full range of accessories is available.

Product Details

Distance Between Centres: 250 mm
Centre Height: 70 mm
Chuck Fitting: Flange Mounted
Cross Slide Travel: (x) 45 mm, (z) 60 mm
Tool Shank Size: 8 mm
Height Over Cross Slide: 43 mm
Spindle Speed: 100 - 3,000 rpm
Overall L x W x H: 560 mm x 270 mm x 170 mm
Nett Weight: 12 kg
Rating: Home/Light Trade
Voltage: 230 V

EAN13 4006274240025

Related products

Axminster Master Precision Tape 5m/16ft - 2367 -

Axminster Master Precision Tape 5m/16ft - 2367 - 2

Tape Measures

Axminster Professional Master Precision Tape

Axminster Professional

Class 1 accuracy – the most accurate tape measure availableHeavy duty, impact resistant casePositive blade lockBlade pause buttonTrue zero tipBelt clipMetric and imperial graduations

Axminster Four Grit Diamond Hone - 2594 -

Axminster Four Grit Diamond Hone - 2594 - 2

Diamond Sharpening Stones

Axminster Workshop Four Grit Diamond Hone

Axminster Workshop

4 different diamond grits, double-ended & double-sided honeEachsurface 52 x 20mm, sharpen or touch-up many toolsXcoarse 120grit, coarse 180grit, med 240grit and fine 320grit

UJK Technology Level Box - 2784 -

UJK Technology Level Box - 2784 - 2

Bandsaw Accessories

UJK Level Box

Digital readings with a resolution of 0.1°Displays either absolute or relative anglesBack lit LCD screen with 10mm high figures; easy to readMagnets in base grip onto steel and ferrous surfacesDurable aluminium frame, dust and waterproof to IP54Lightweight and portable; 60 x 60 x 25mm, weight 70gAuto shut-off after 5 minutesPowered by a standard AAA...

Axminster Rider Square Blade Awl with Hornbeam Handle - 2794 -

Axminster Rider Square Blade Awl with Hornbeam Handle - 2794 - 2

Scribers

Rider Square Blade Awl with Hornbeam Handle

Smooth pear shaped hornbeam handle for controlQuick and simple method pre-drilling starter holes for screwsSquare blade severs wood fibres, reaming and enlarging hole

WoodSpur Torx Head Wood Screw Trial Pack - 5036 -

WoodSpur Torx Head Wood Screw Trial Pack - 5036 - 2

Torx Head Woodscrews

WoodSpur Torx Head Wood Screw Assortment (1,500 Pieces)

Top quality zinc plated wood screws with a self countersinking headThey have deep sharp threads that cut into the wood, not forcing throughPenetrating tip that requires no pilot hole or pre-drillingHeat treated to ensure they are hard and resistant to snappingFor use in soft or hard wood, MDF or chipboardTorx heads and wax lubricated for the easiest...

Axminster Trade Clamps Forged Flat Bar Clamp - 5351 -

Axminster Trade Clamps Forged Flat Bar Clamp - 5351 - 2

F Clamps

Axminster Professional Forged Flat Bar Clamp 200 x 80mm

Axminster Professional

Convenient, lightweight clamp great for general useStrong clamping pressure, quick and positive adjustmentBoth jaws feature plastic caps to protect the work

Axminster Trade Bitz Centrotec Compatible Depth Adjustable Bit...

Axminster Trade Bitz Centrotec Compatible Depth Adjustable Bit... 2

Bit Holders

Axminster Workshop Centrotec Compatible Depth Adjustable Bit Holder

Axminster Workshop

75mm longAdjustable depth settingFit all hex shank and quick change systems, including Festool's CentrotecMagnetic ring securely holds the screw on the screwdriver bitSleeve locks for consistent screw depth

Proxxon Fixed Steady for PD 250/E Lathe - 5612 -

Steadies

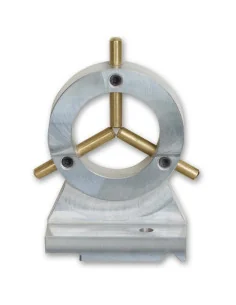

PROXXON Fixed Steady for PD 250/E Lathe

For turning long, slender workFits directly to the bed; maximum diameter 40mmUsed when the tailstock support is inadequate

Proxxon Quick-Change Tool Post for PD 250/E Lathe - 5614 -

Tool Posts

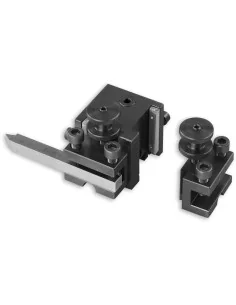

PROXXON Quick-Change Tool Post for PD 250/E Lathe

Includes two holders; tool size up to 8 x 8mmProvides quick tool changesEasy height adjustment

Proxxon Splash Guard & Chip Collecting Tray for PD 250 - 5617 -...

Drip Trays & Splash Guards

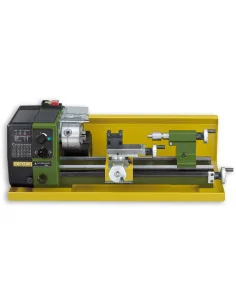

PROXXON Splash Guard & Chip Collecting Tray for PD 250
