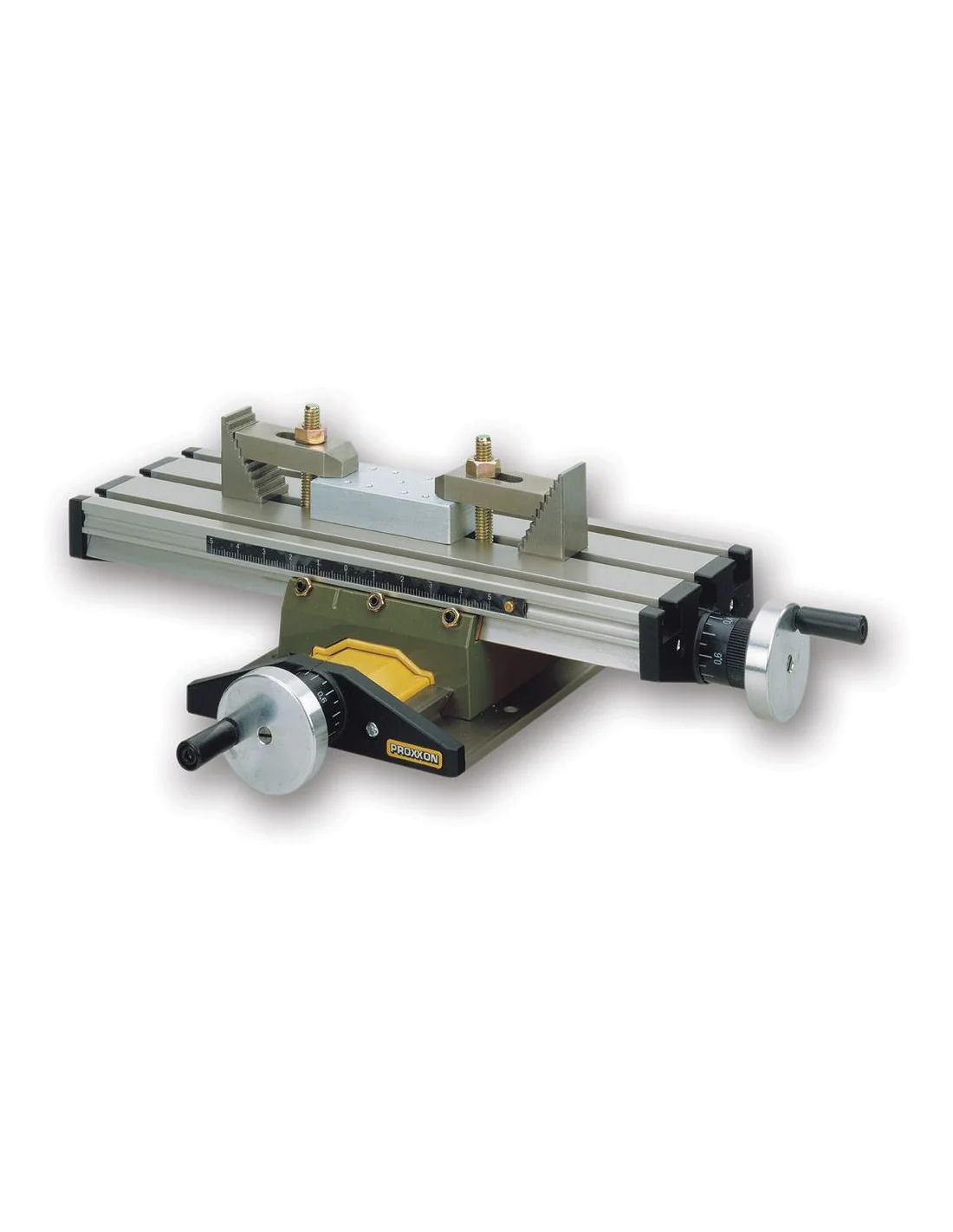

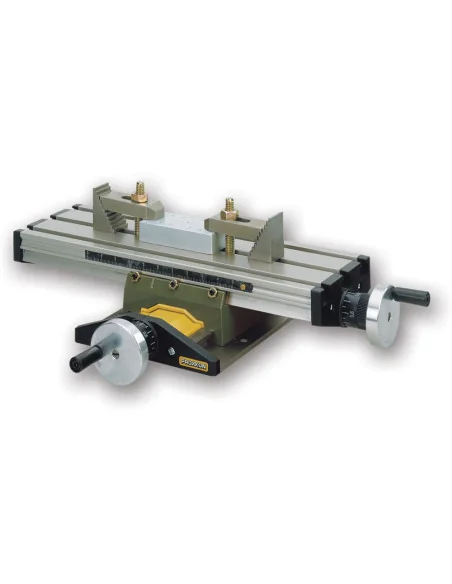

PROXXON KT 70 MICRO Compound Table

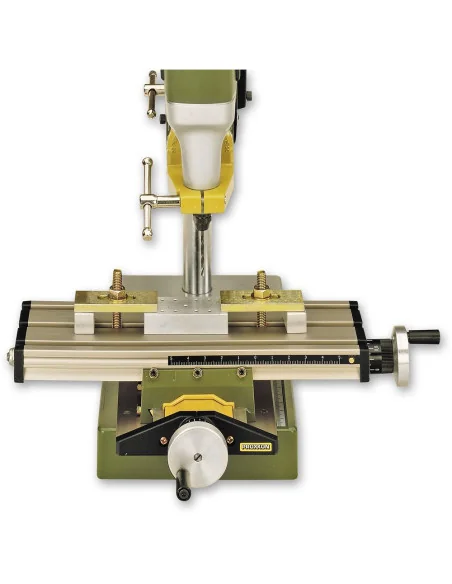

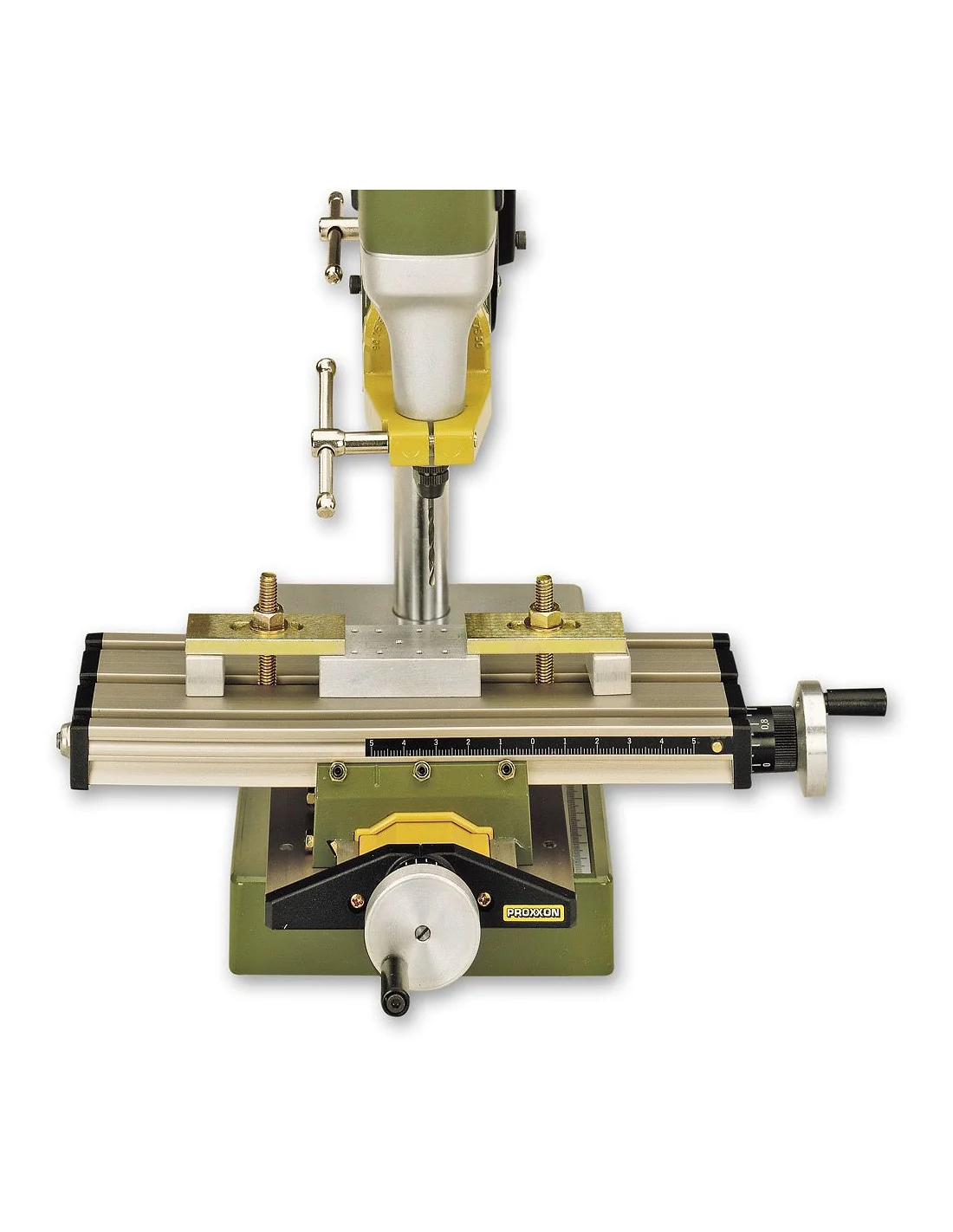

Made of solid aluminium with surface treatment and fitted with adjustable dovetail gibs and three T-slots of the MICROMOT standard (12 x 6 x 5mm). Adjustable ruler eases workpiece positioning. Both handwheels have zero-resettable dials with graduations indicating 1 revolution = 1.0mm and 1 division = 0.05mm. X travel 134mm and Y travel 46mm having a table height of 43mm and table size of 200 x 70mm. Supplied with two step clamps and the clamps and securing bolts for the TBM bench drill.
