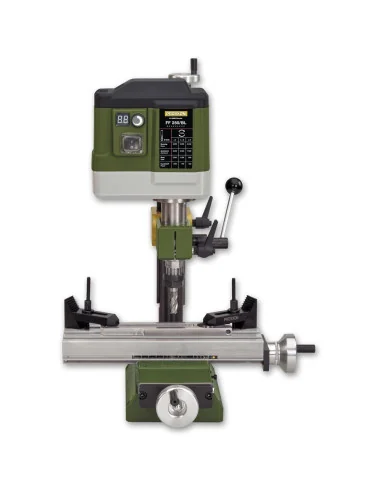

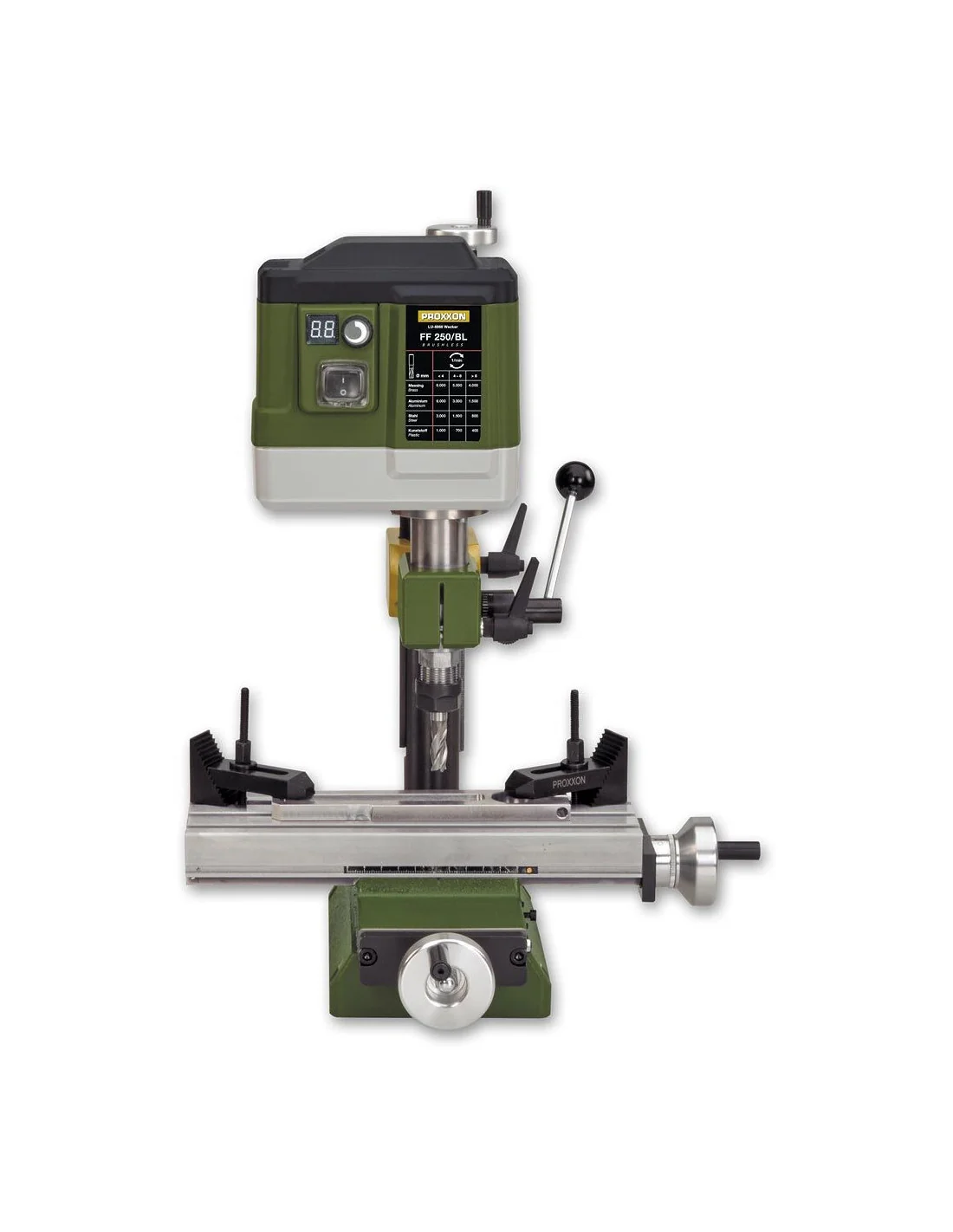

    PROXXON FF 250/BL MICRO Mill

    • Variable speed pre-selection from 400 - 6.000rpm
    • Solid plane-milled steel compound table with 3 T-slots
    • Digital speed indication
    • Tool holder uses ER 16 (DIN ISO 15488) collets
    • Supplied with 6mm, 8mm and 10mm collets
    109490
    Out-of-Stock
    BGN3,079.45

    Description

    The FF 250/BL is a stand alone mill/drill, and a high quality addition to the PROXXON Micromot range of engineering machines. The FF 250/BL features variable speed pre-selection from 400 - 6.000rpm with digital speed display. Speed sensors guarantee high torque also in the lower speed range. A rotational speed chart on the front of the housing shows the appropriate spindle speeds for the most common applications. The headstock swivels through 360°, and tilts 90° left and right. The mill/drill’s table offers X-Y travel, longitudinally and cross-wise respectively of 110 x 70mm, with 3 T-slots. The tool holder uses ER 16 collets. The FF 250/BL is supplied with 6mm, 8mm and 10mm collets.

    Product Details

    Diameter of Column
    35 mm
    Max Drilling Mild Steel
    10 mm
    Nose of Spindle to Table [Max]
    200 mm
    Table Size
    270 mm x 80 mm
    Head Tilt
    90° - 0° - 90°
    Spindle Speed
    400 - 6,000 rpm (Var)
    Spindle Travel
    30 mm
    Lateral Table Movement
    170 mm
    Longitudinal Table Movement
    65 mm
    T Slot Size
    12 mm x 8 mm
    Spindle Taper
    ER16 Collet
    End Milling Capacity
    10 mm
    Face Milling Capacity
    10 mm
    Throat
    65 mm
    Overall L x W x H
    180 mm x 130 mm x 500 mm
    Plug Fitted
    UK 3 pin plug
    Power
    250 W
    Nett Weight
    17 kg
    Rating
    Home/Light Trade
    Voltage
    230 V
    EAN Barcode
    4006274241145
    Model
    FF 250/BL
    4006274241145
