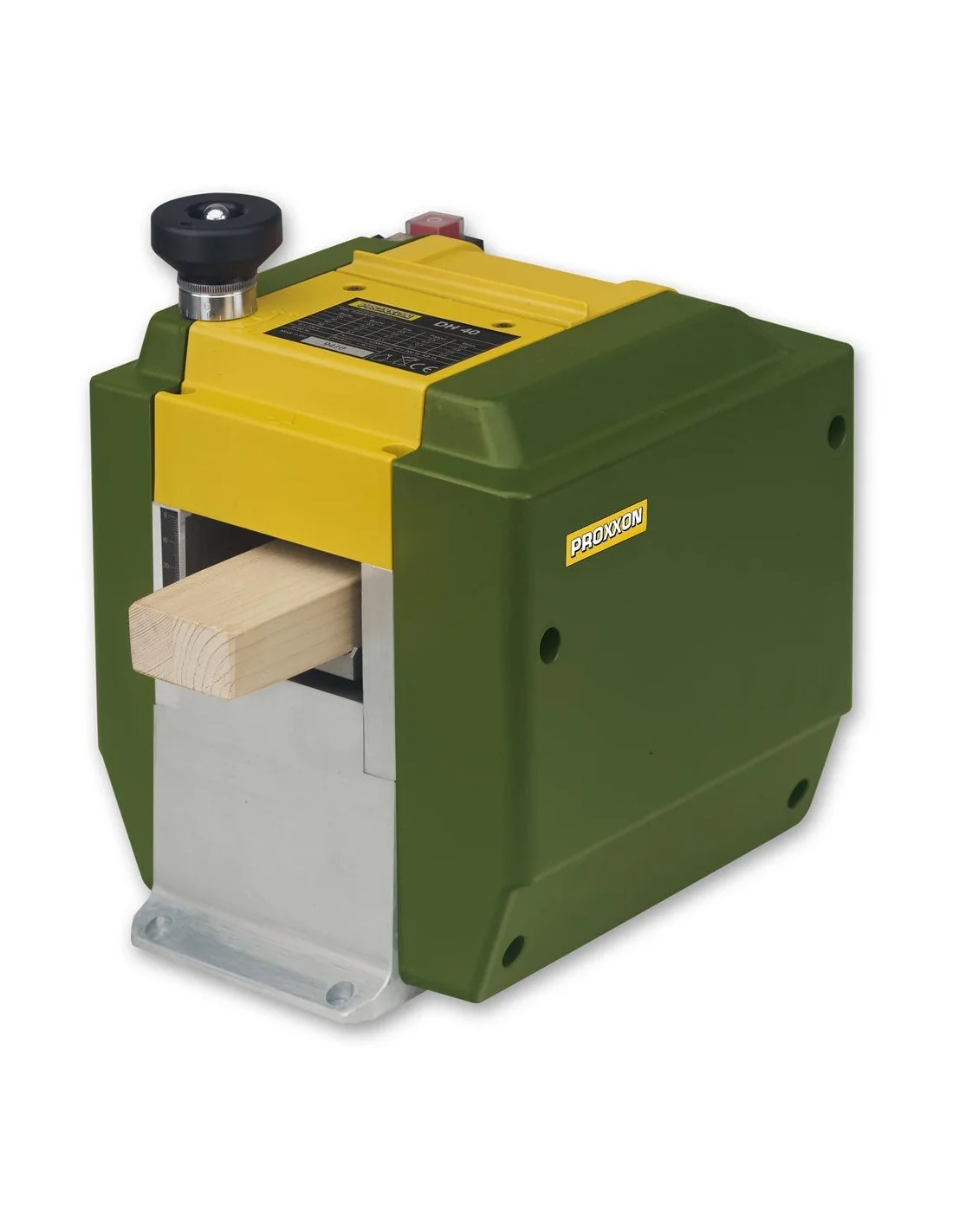

    PROXXON DH 40 Thicknesser

    702064
    BGN1,641.34
    • Load bearing components made of die-cast aluminium
    • Auto feed
    • Riffled and spring loaded infeed roller
    • Rubber coated outfeed roller
    • 2 HSS knives
    • Dust protected No-Volt release switch

    Description

    The PROXXON DH 40 is a superb small machine for producing precision stock for fine furniture or musical instruments. Capable of machining even very hard, close grained woods, leaving a fine finish. All load bearing components are all made of die-cast aluminium, with milled seats for bearings and spindles, for vibration-free, smooth thicknessing of hard and soft woods. The result is a high grade, very smooth surface. The triple spindled table is made from die-cast aluminium and milled to close tolerances. The handwheel (zero adjustable) allows adjustments to 0.1mm. Auto feed is fitted as standard, as well as an anti-kickback device. The infeed roller is riffled and spring loaded to assist in feeding uneven materials. The outfeed roller is rubber coated to prevent marking the newly planed wood. The cutter block is fitted with two HSS knives. The on/off switch is dust protected and fitted with a no-volt-release switch. Table length 232mm. Overall machine dimensions 280 x 230 x 235mm. Weight approximately 8kg.

    Product Details

    Number of Knives
    2
    Overall L x W x H
    280 mm x 230 mm x 235 mm
    Knives
    HSS (Disposable) x 2
    Feed Speed
    4.8 m/min
    Nett Weight
    8 kg
    Rating
    Trade/Professional
    Cutterblock Speed
    6,000 rpm
    Length of Table
    232 mm
    Max Depth of Cut Thicknesser
    0.8 mm
    Max Planing Width
    80 mm
    Max Thicknessing Height
    40 mm
    Min Thicknessing Height
    3.0 mm
    Motor Power
    200 W
    Voltage
    230 V
    4006274270404
