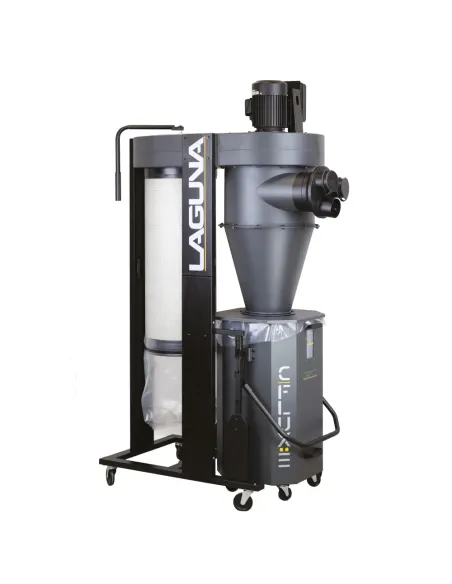

New CFlux3Tv2 range sets a new standard of dust extraction. The Cyclone dust extraction system maximizes airflow to increase the efficiency of suction. The new CFlux3Tv2 model for 2022 features an updated design, a redesigned waste container that is now composed of only 3 parts, increasing its strength and speeding up assembly. The container volume has increased by an impressive 40% to 174 litres.
Efficient filter with manual cleaning
Securely affixed microfilter does not stand in the way of fluent airflow which enhances the performance of the filtration system. The CFlux3Tv2 dust extractor comes as standard with a 1-micron spun bound pleaded filter of 4,5 m2 providing maximum airflow efficiency. Filtration efficiency of 99,97 % @ 1 micron. Handy crank cleaning system inside the filter prevents clogging and allows cleaning without having to disassemble. The lower part filtration is equipped with a collection bag for fine dust collection.
Clever waste drum design

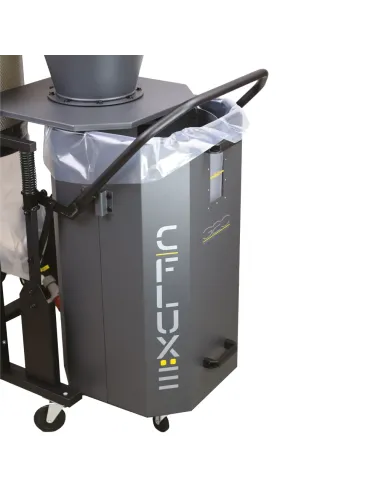

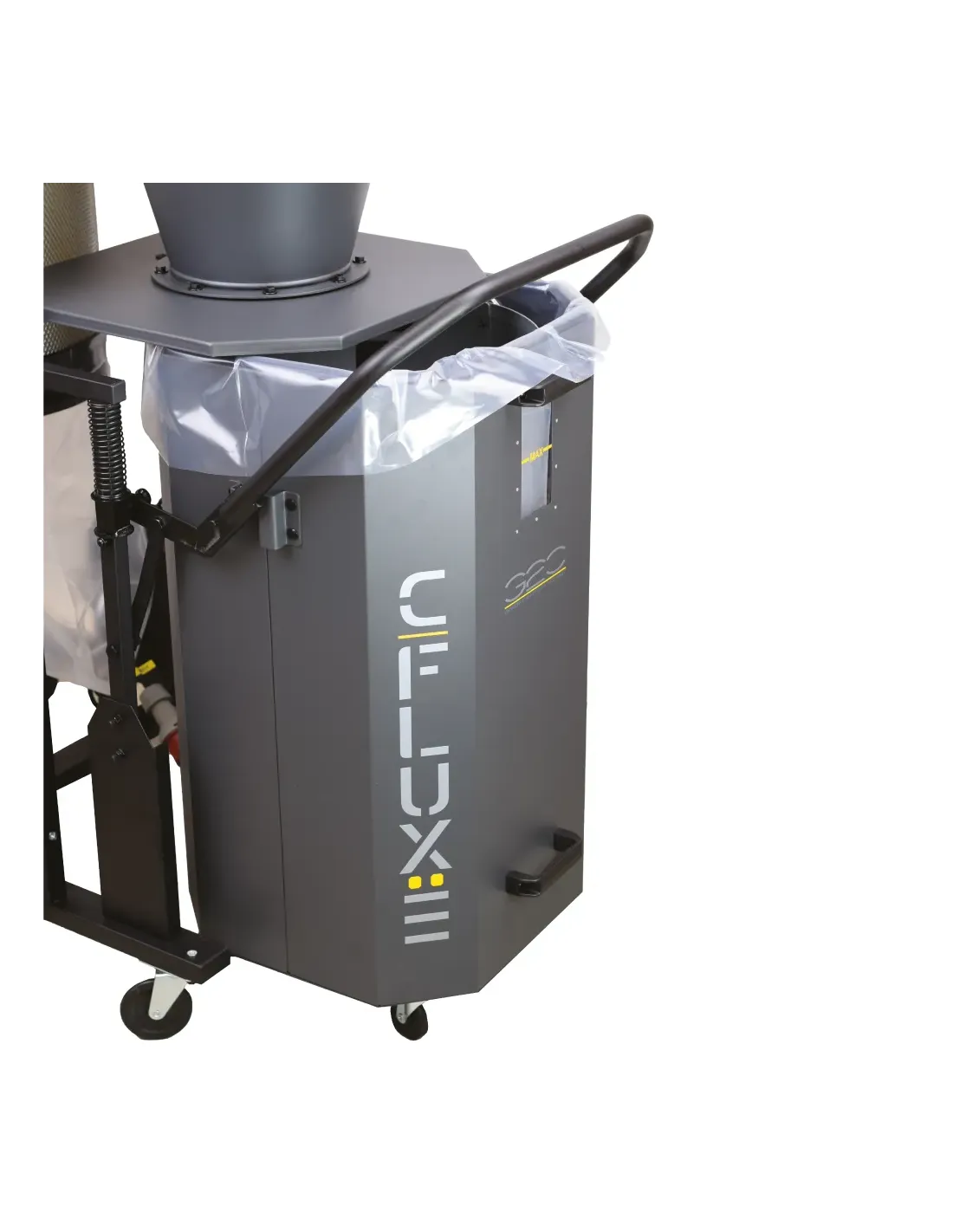

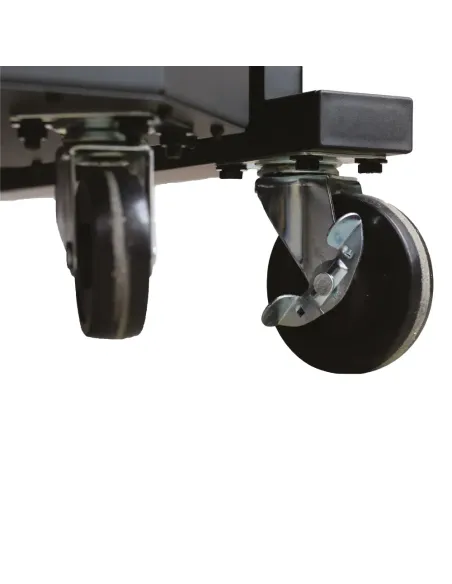

Emptying the waste drum has never been easier. Clever lifting mechanism lifts up the bin with one pull on the lever. Lifting the handle sets down the container. Pushing the lever effectively lifts the drum and seals it against the drum lid. This lifts the container to the extractor and the whole machine is easy to move around the woodshop or used with a floor gulper. The container with a waste drum is fitted with castor wheels for easy movement. The collector's mobile wheels are now also braked, to keep the collector firmly in place. In the waste container you will now also find an LED light and a sight glass to easily see the sawdust fill level.
Cyclone system
Two-step cyclone filtration system offers far better performance than one step extractors. Larger waste is separated into the waste compartment before it reaches the second phase of filtration. This system secures constant suction and great performance of the unit.
Comes partially disassembled in a transport crate. Assembly time is approximately 4-5 hours.
• Type: CFlux3Tv2
• Rating: Professional
• Power Output (400V): 2200 W
• Airflow: 3831 m3/hod.
• Noise Level: 82 dB(A) @ 3m
• Waste container capacity: 174 l
• Drum Collection Bag: 1194 mm x 960 mm
• Filter Collection Bag: 660 mm x 620 mm
• Filter Efficiency: 99.97 % over 1 micron.
• Max. Pressure: 2800 Pa

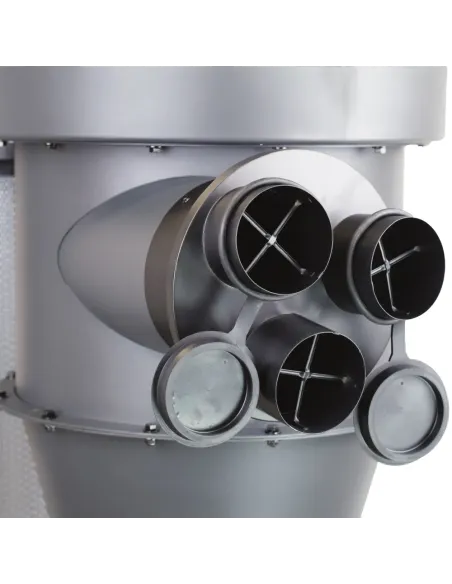

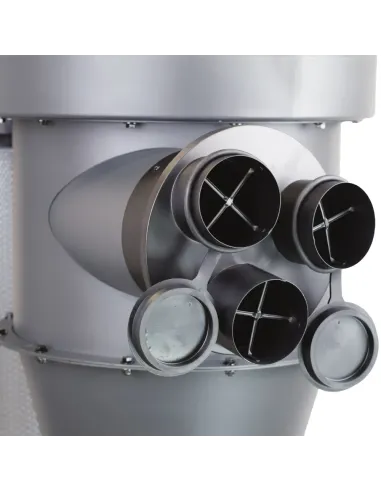

• Inlet Diameters: 1 x 200 mm or 3 x 100 mm
• Length x Width x Height: 1168 x 686 x 2286 mm
• Weight: 169 kg
Supplied with:

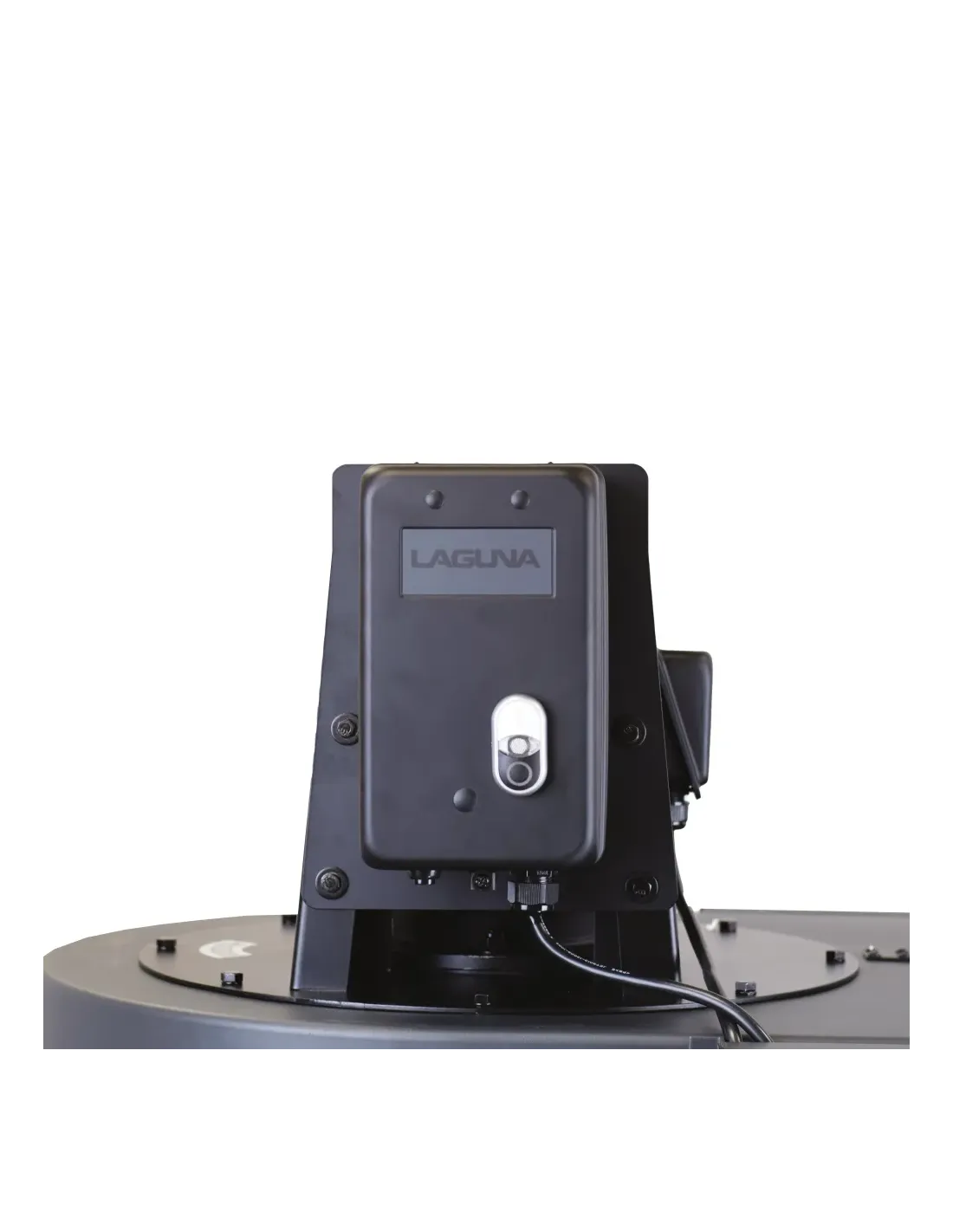

• Remote Control
• 1x Drum Collection Bag
• 1x Filter Collection Bag
• Spun Bound Pleaded Filter
