CMT Roundover and Cove Cutter Head R10 MAN

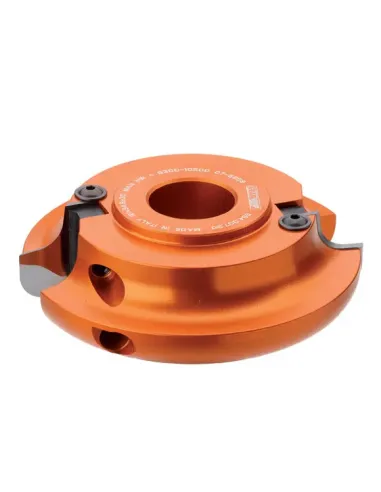

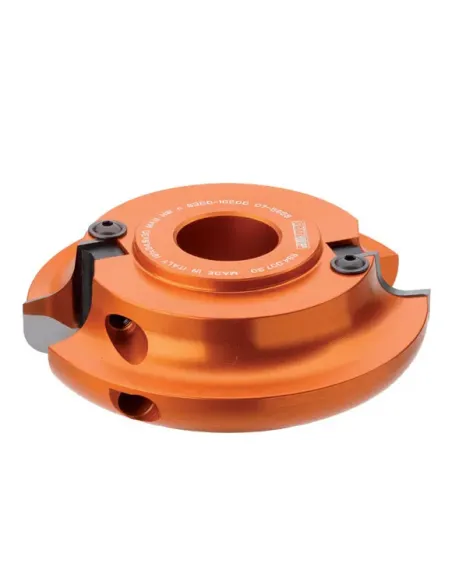

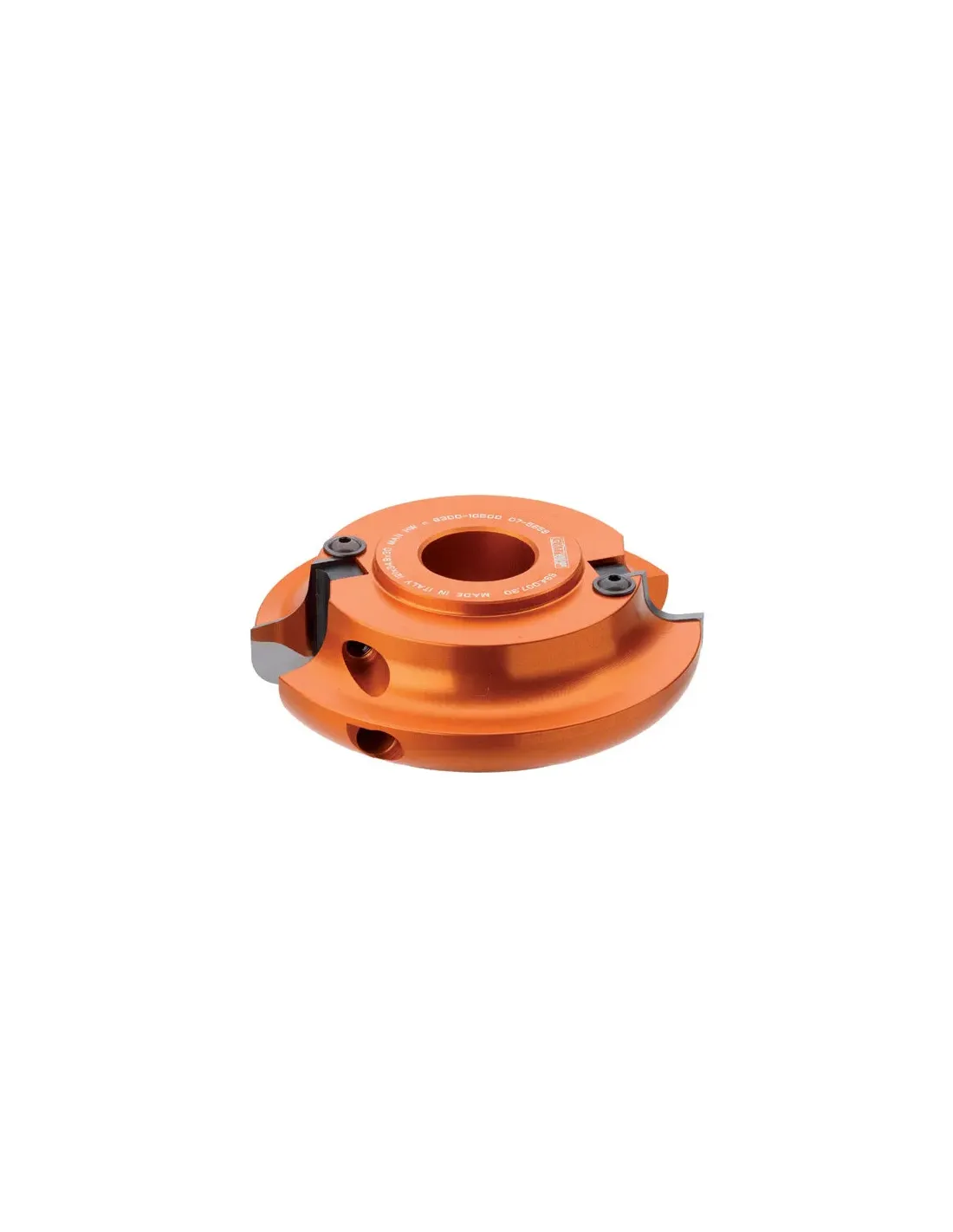

The cutter creates internal and external radial round and cove cuts.The cutter is fitted with two radial knives with concave and convex radius R10. Other radii R12 and R15 available. For rounding and profiling of board edges and soft or hard wood. May be fitted with a guide bearing for routing of curved parts. D= 30, 40 or 50 mm.

Specifics:
• Aluminum alloy body

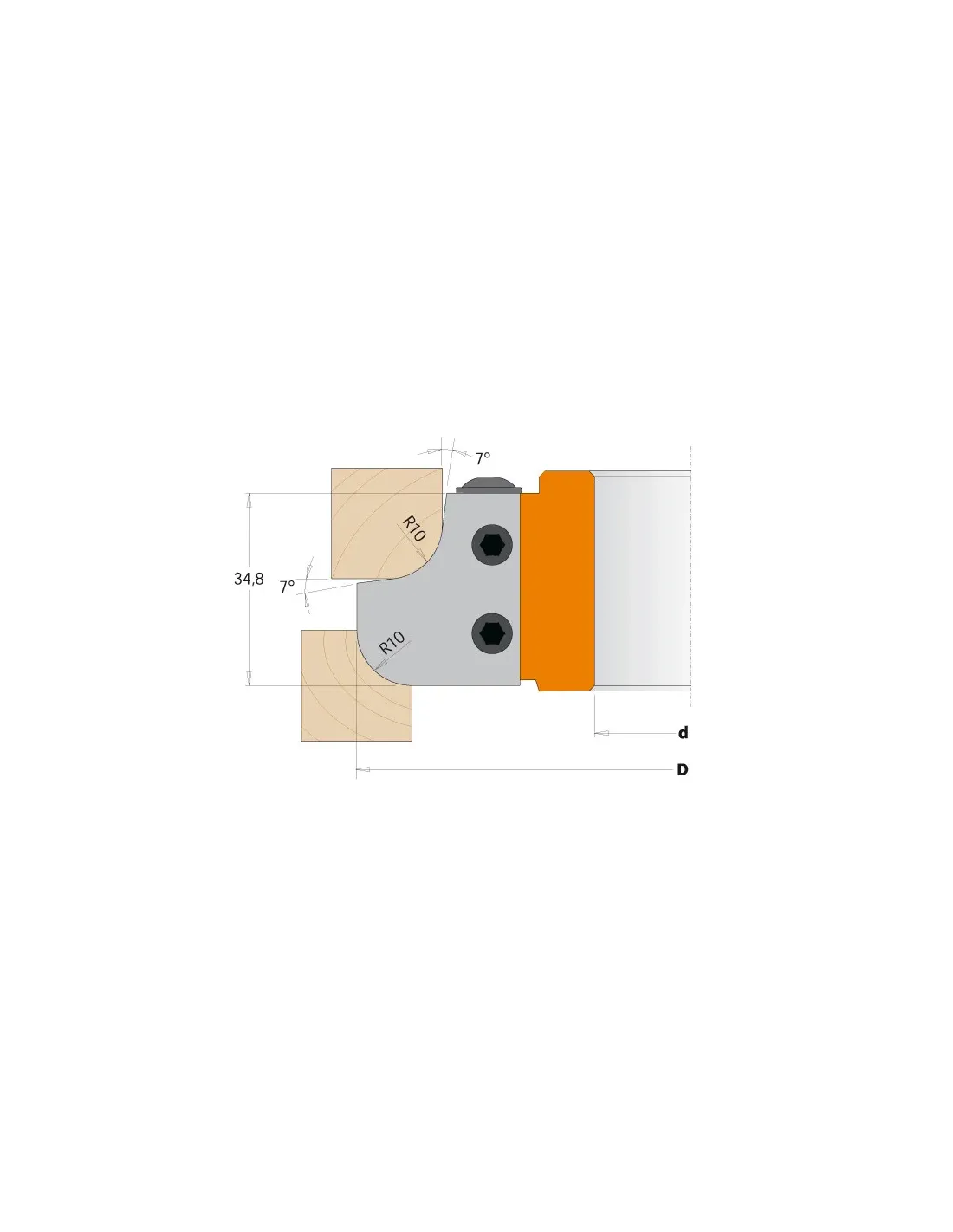

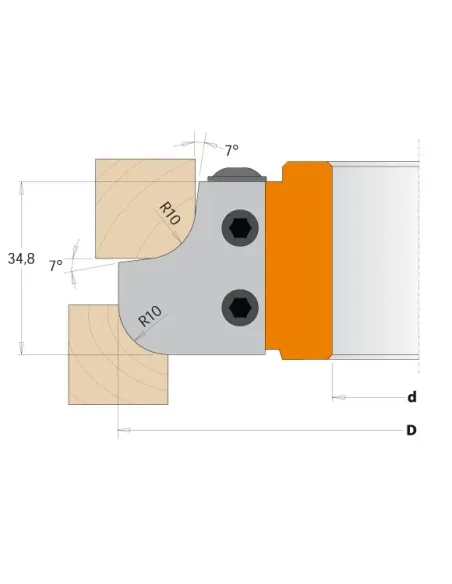

• 2 HM knives - radius R10 mm (34,8x29,3x2 mm) [Z2].
• Ideal for manual feed MAN.
• Pins for automatic positioning of knives.

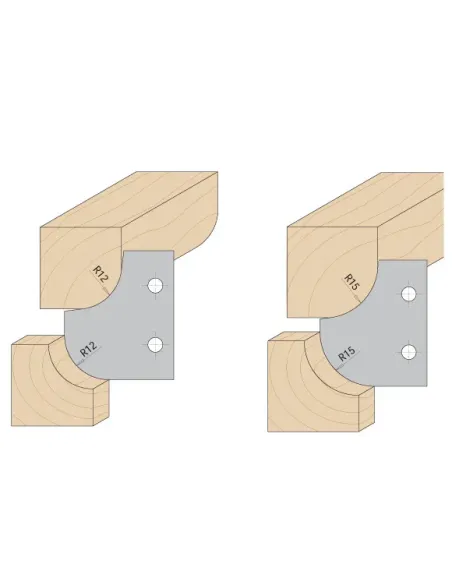

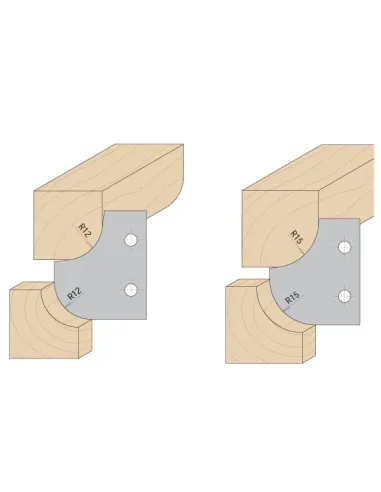

• Other radii available (R12 and 15 mm)

Parameters:
2 teeth, speed 5900-9500 rpm, Manual feed of material MAN.
