    Clifton
    107496
    BGN650.10
    • Precisely machined and accurately ground body
    • Fine feed-screw for cutting depth adjustment
    • Curved and polished lever arm for comfort and control

    Description

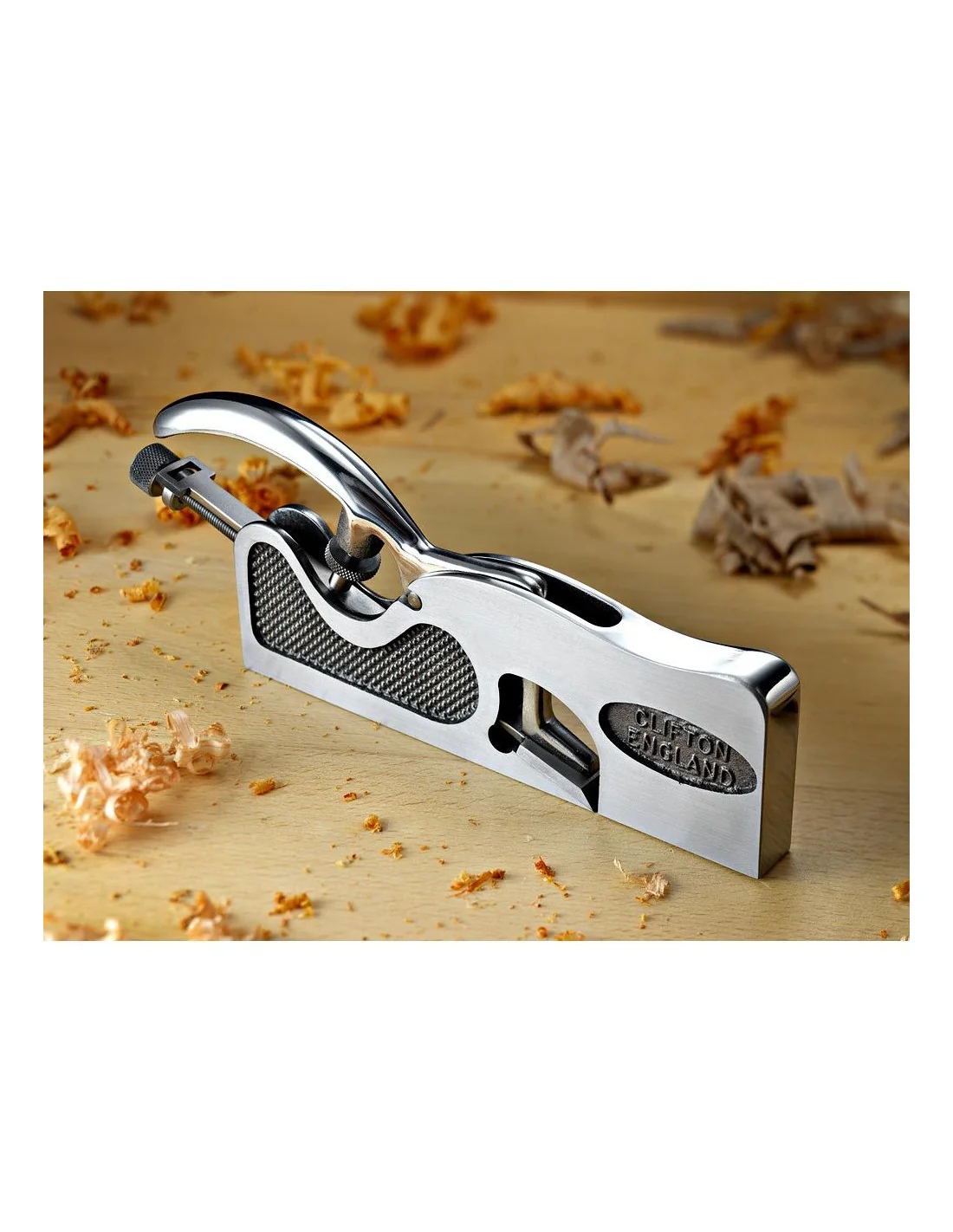

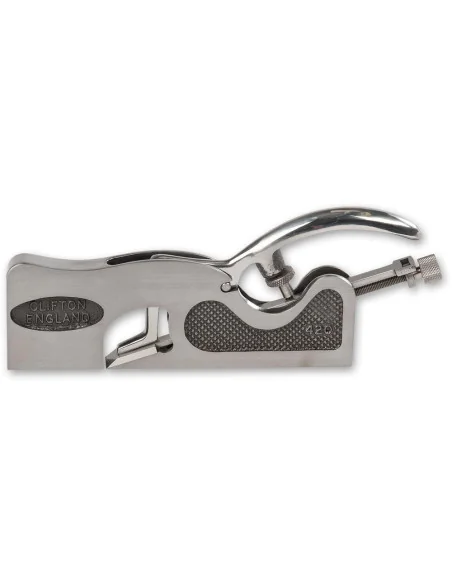

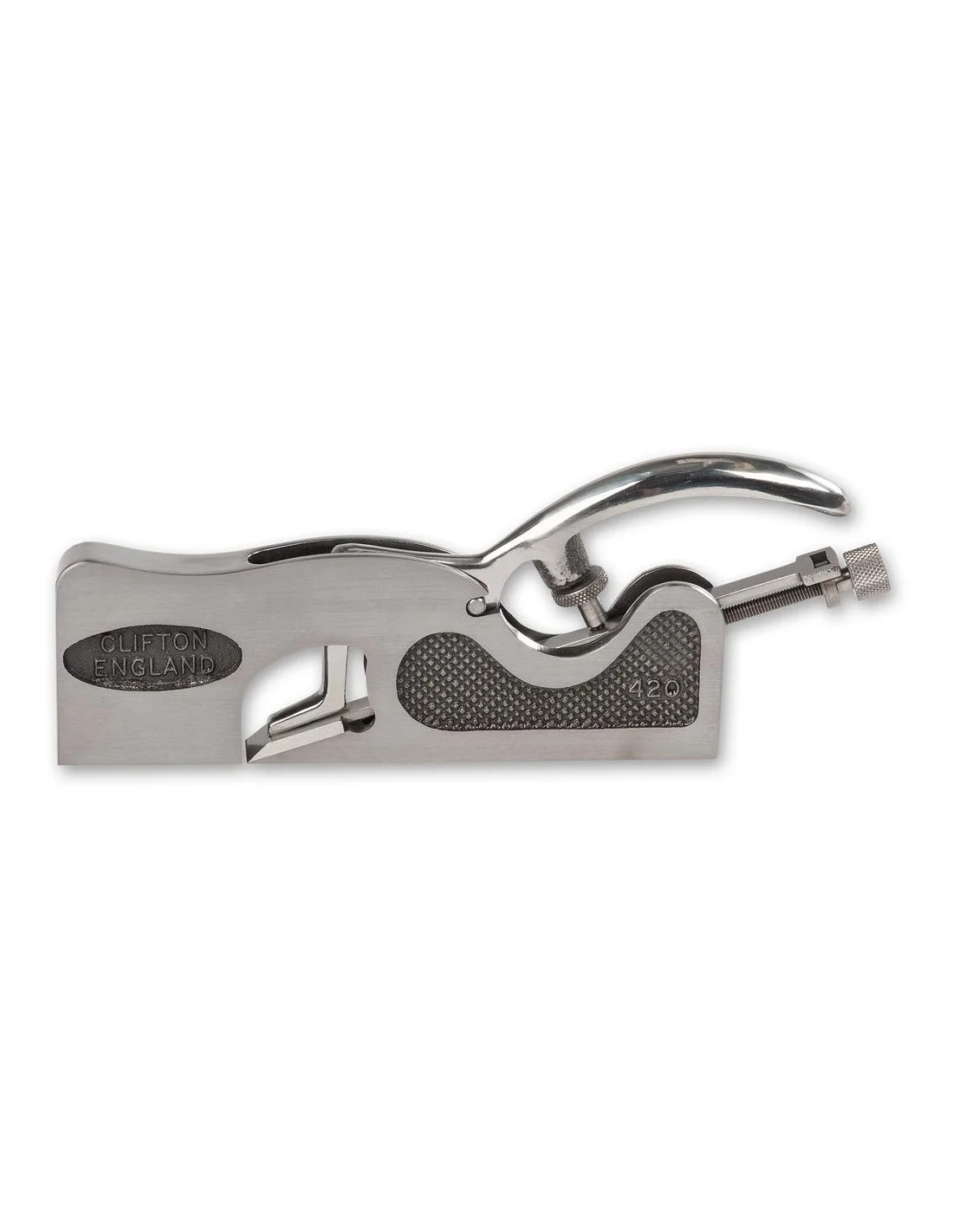

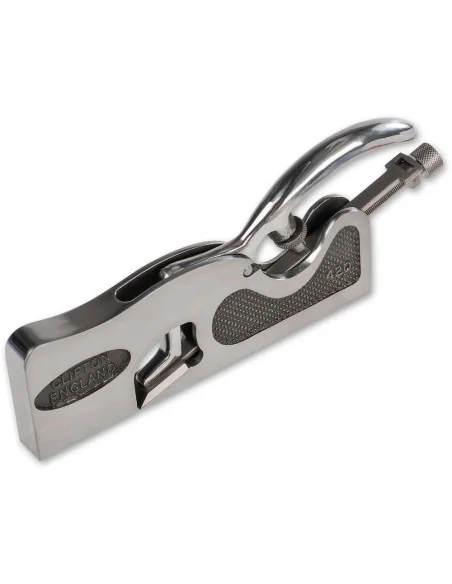

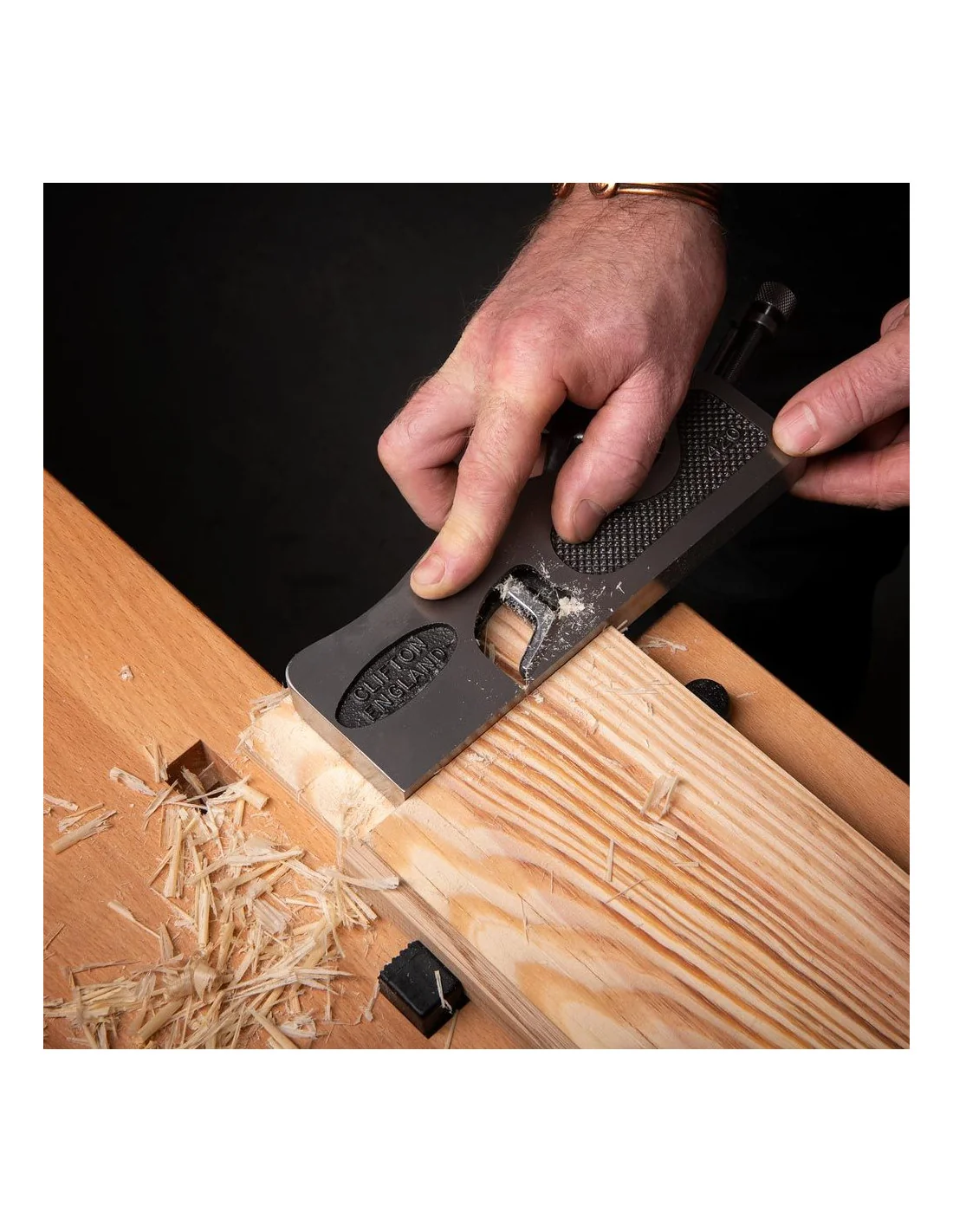

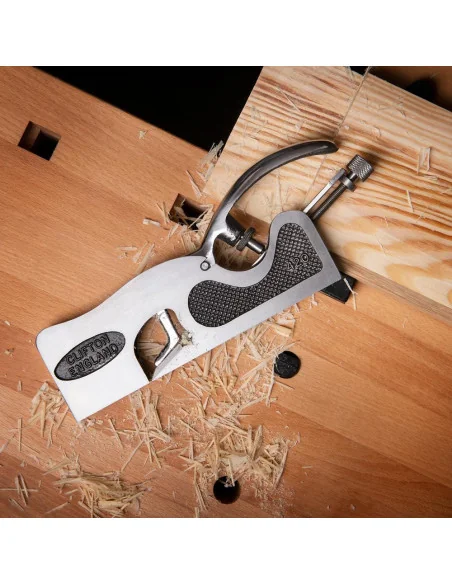

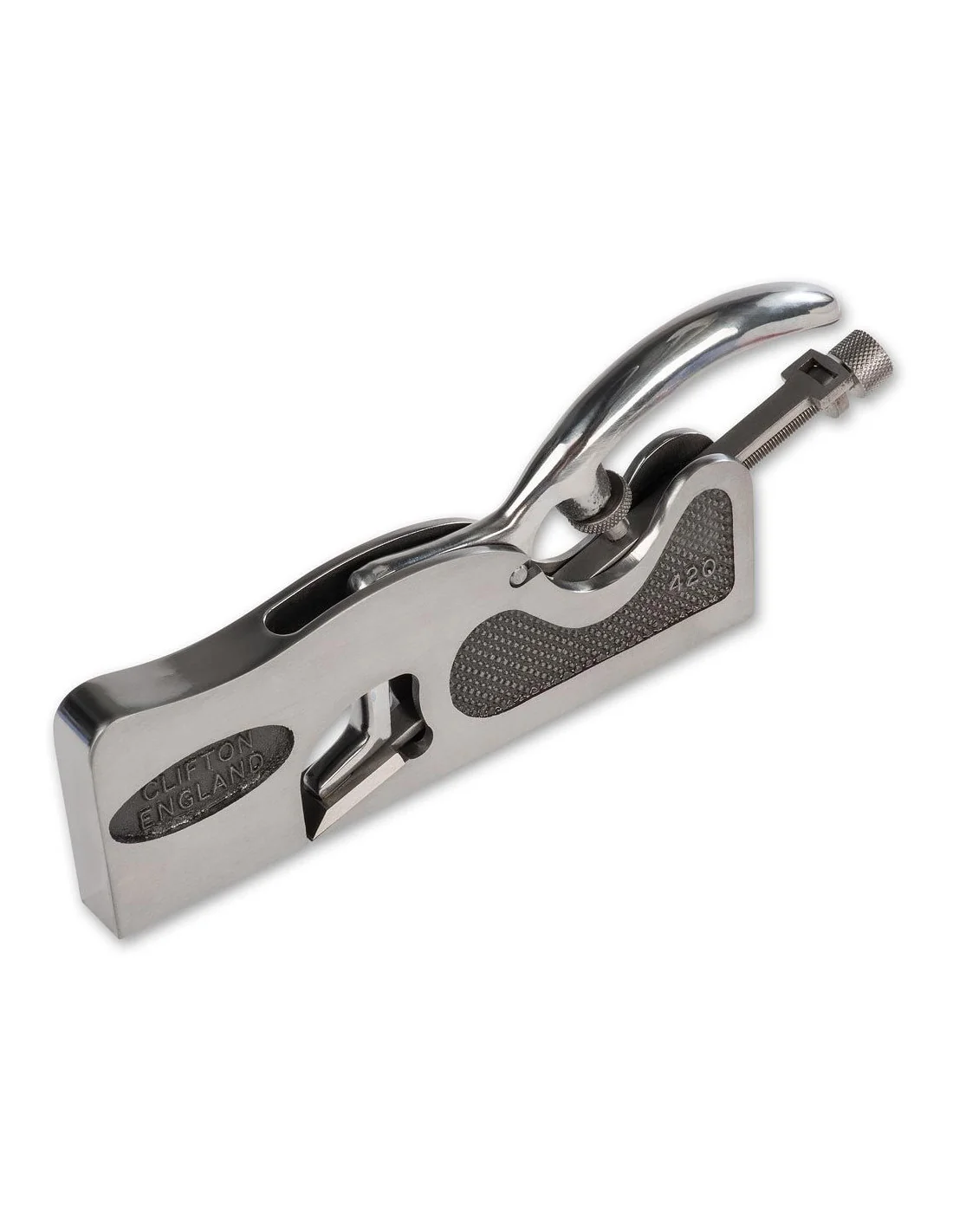

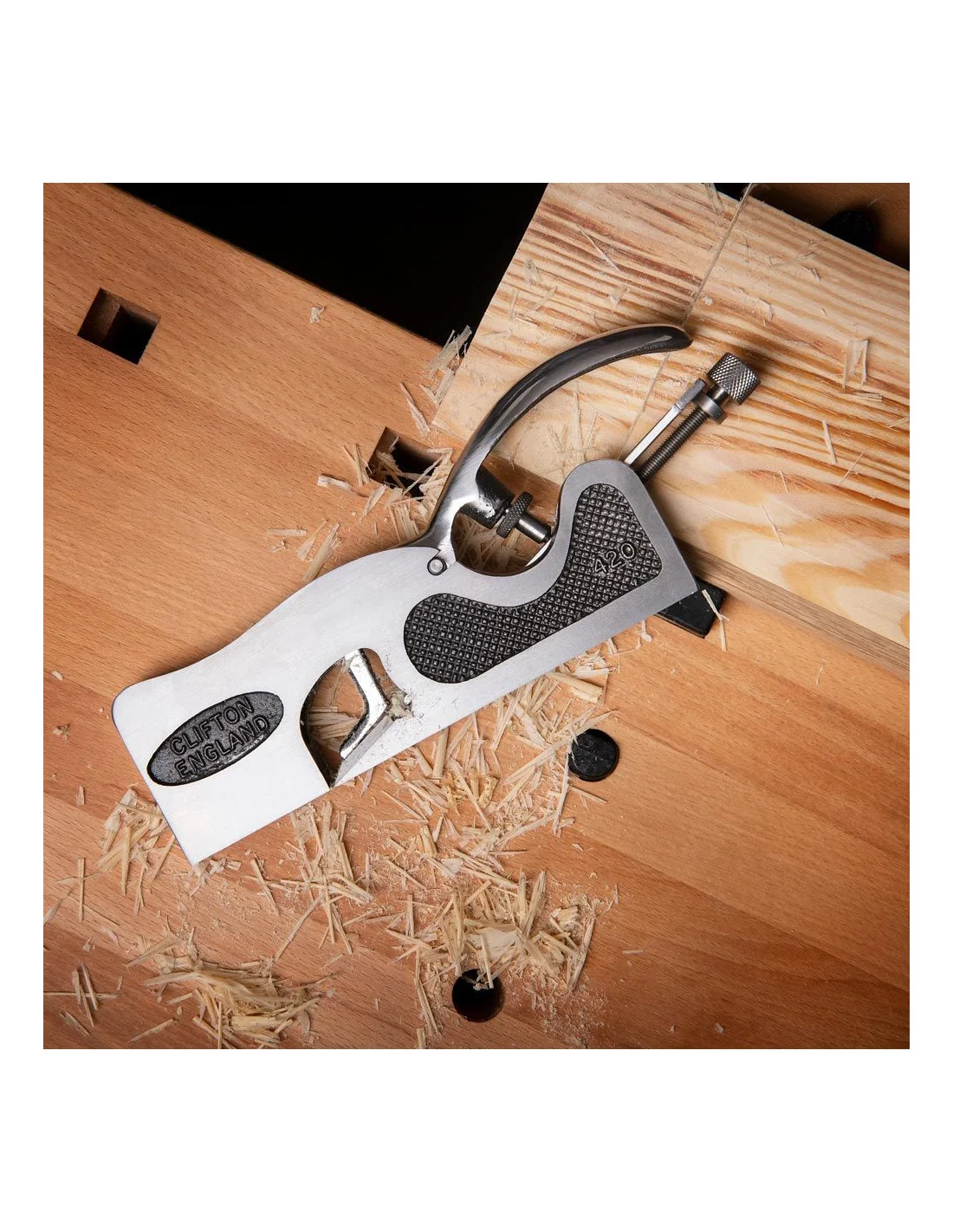

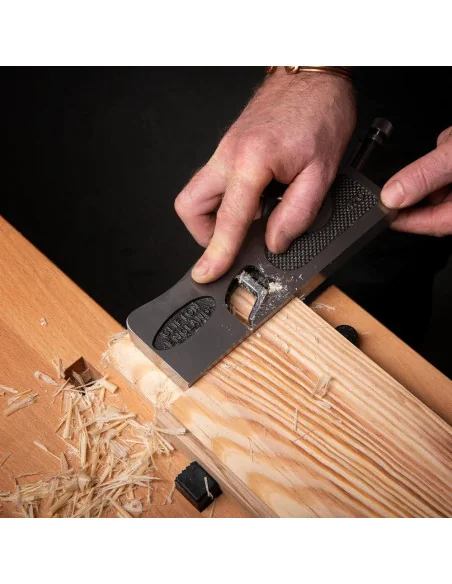

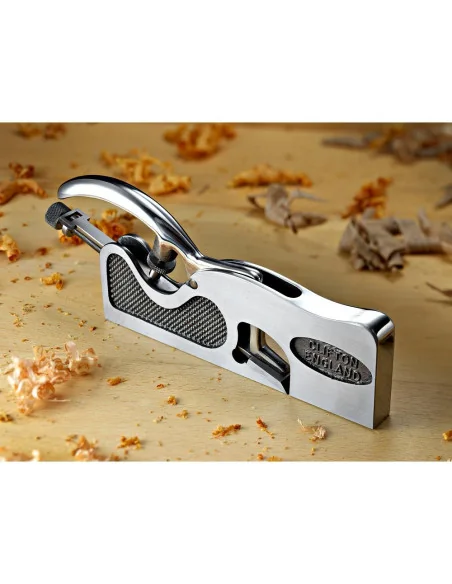

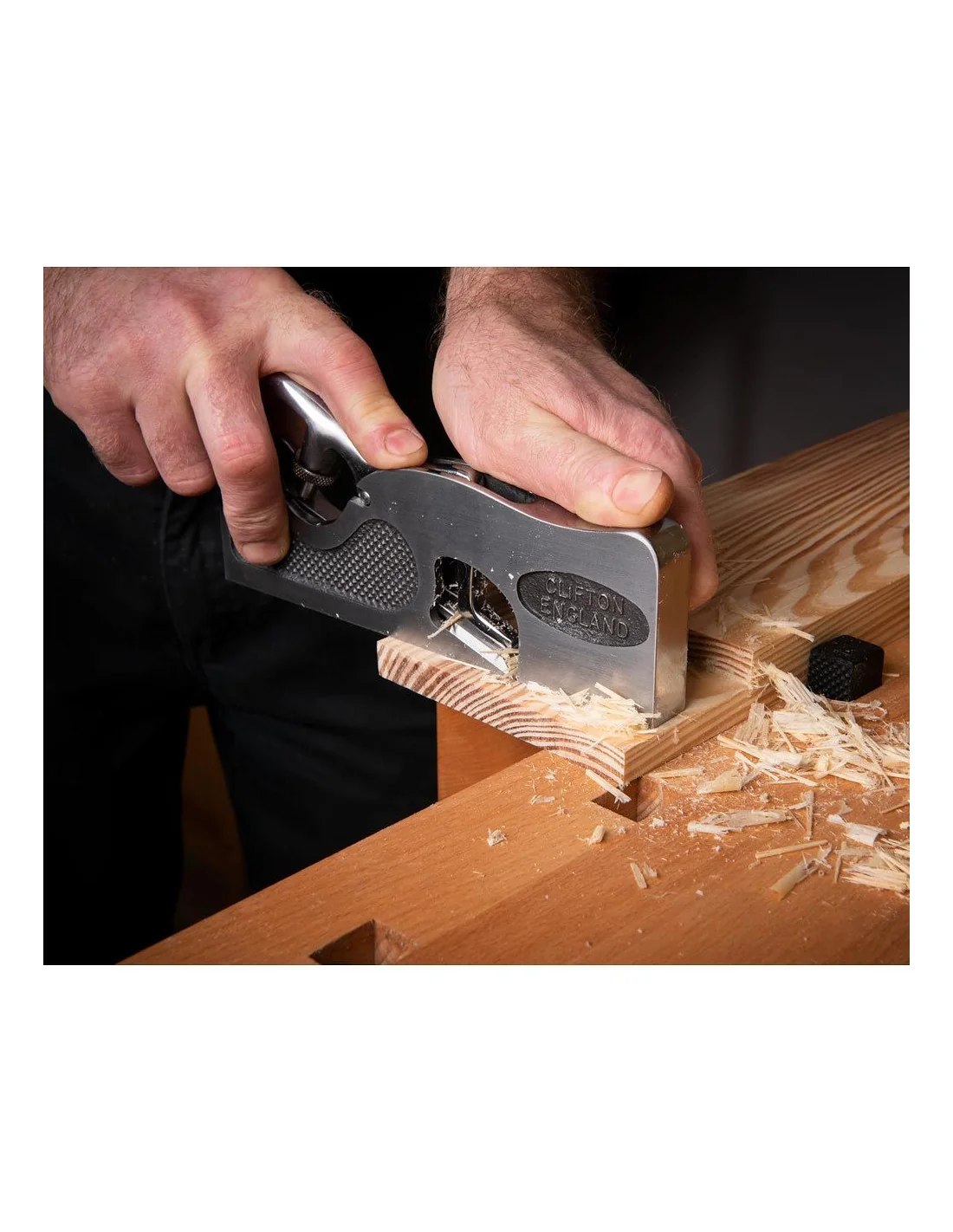

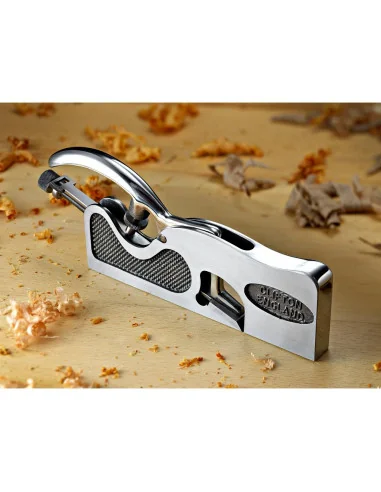

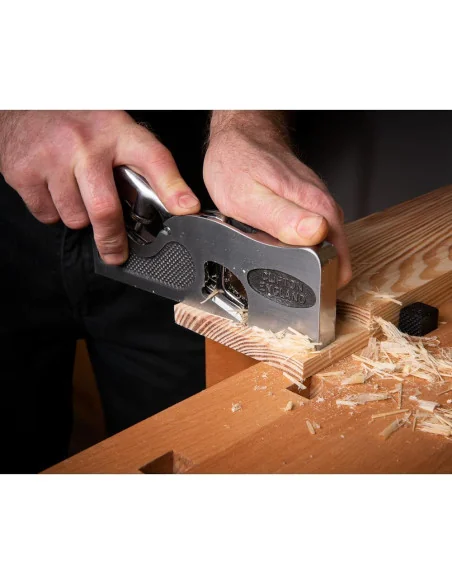

    All Clifton planes are top quality and machined to very fine tolerances. The 420 is a 200mm long shoulder plane with a 19mm wide cutter. The solid one-piece body is machined from fine grey cast iron, precisely ground on both base and sides and has a fine 0.8mm mouth. The gently curved polished lever arm sits perfectly in your palm offering both comfort and fine control. The body is ground flat and square, sides and sole, allowing you to use the 420 laid flat on either side or upright. The 19mm wide O1 tool steel blade; hardened to HRC 59-61C, takes and holds a razor edge. Adjustment is by means of a fine feed screw. The blade is bedded at 18°, used bevel-up with a 25° bevel gives a 43° pitch. Weight: 1.1kg.

    Product Details

    Plane Blade Width
    19 mm (3/4")
    Plane Sole Length
    200 mm
    Plane Type
    Shoulder
    Nett Weight
    1.1 kg
