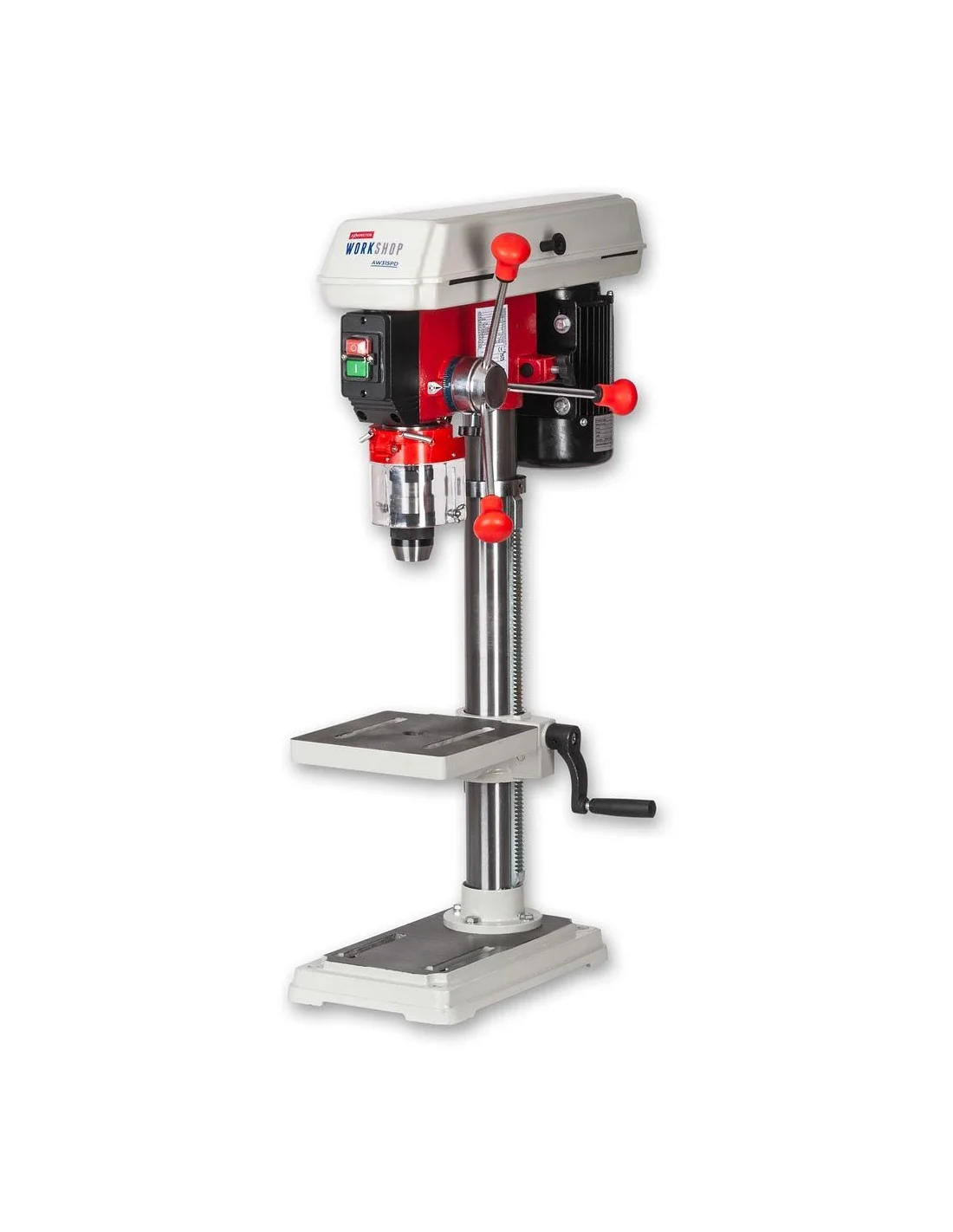

Axminster Workshop AW315PD Bench Pillar Drill - 230V
Axminster Workshop AW315PD Bench Pillar Drill - 230V
Axminster Workshop AW315PD Bench Pillar Drill - 230V
Axminster Workshop AW315PD Bench Pillar Drill - 230V
Axminster Workshop AW315PD Bench Pillar Drill - 230V
Axminster Workshop AW315PD Bench Pillar Drill - 230V
Axminster Workshop AW315PD Bench Pillar Drill - 230V
Axminster Workshop AW315PD Bench Pillar Drill - 230V

Axminster Workshop AW315PD Bench Pillar Drill - 230V

107691
BGN789.81 BGN929.19 -15%
Time left
  • Sturdy cast iron construction with quiet 550W induction motor
  • 12 belt speeds 210-2,580 rpm for drilling wide variety of materials
  • Convenient rack and pinion table height adjustment

Description

A good size bench pillar drill enabling you to drill accurate holes at consistent depths and angles. Made from cast iron and machined steel it’s sturdy, stable and strong. The keyless chuck is an excellent feature with a capacity of 1 to 16mm. Powered by a 550W induction motor, there are 12 belt speeds to choose from between 210-2,580rpm. The down feed is fitted with soft grip handles and there is a convenient drilling depth control. Table height is controlled via a rack and pinion system, the whole table assembly can be swivelled away to allow the base to be used as a work support. A front mounted NVR switch and the adjustable chuck guard add to the convenience of use. The belt cover has a safety switch to ensure safe speed changing. A great choice for any hobby workshop. Please note: the AW315PD is not suitable for a morticing attachment.

Product Details

Base Size
340 mm x 220 mm
Table Tilt
45° - 0° - 45°
Chuck Capacity
1 mm to 16 mm
Chuck Travel
60 mm
Chuck Type
keyless
Collar Size
60 mm
Diameter of Column
60 mm
Max Chuck to Base
430 mm
Max Chuck to Table
315 mm
Max Drilling Mild Steel
16 mm
Speed Range
210 - 2,580 rpm (12)
Throat Depth
127 mm
Table Size
198 mm x 198 mm
Overall L x W x H
520 mm x 260 mm x 840 mm
Plug Fitted
UK 3 pin plug
Power
550 W
Nett Weight
37 kg
Rating
Home Workshop
Voltage
230 V
