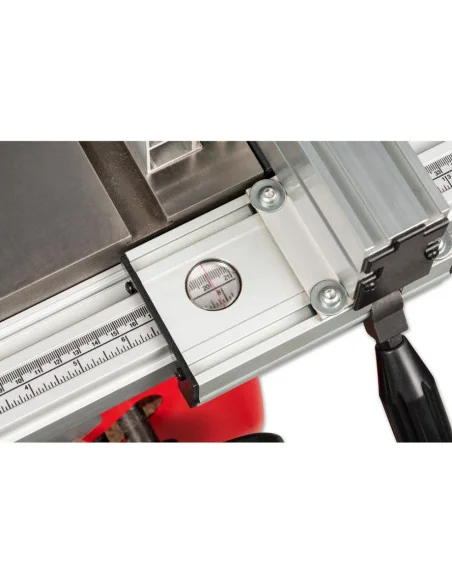

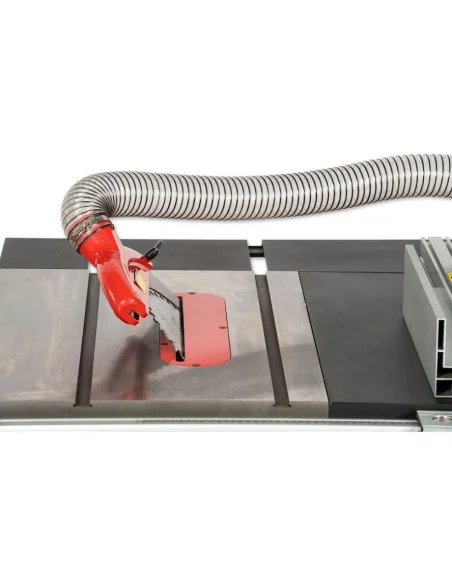

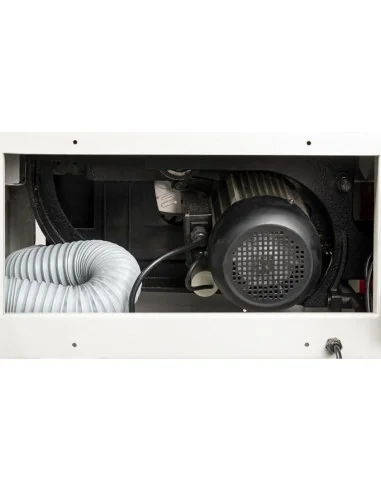

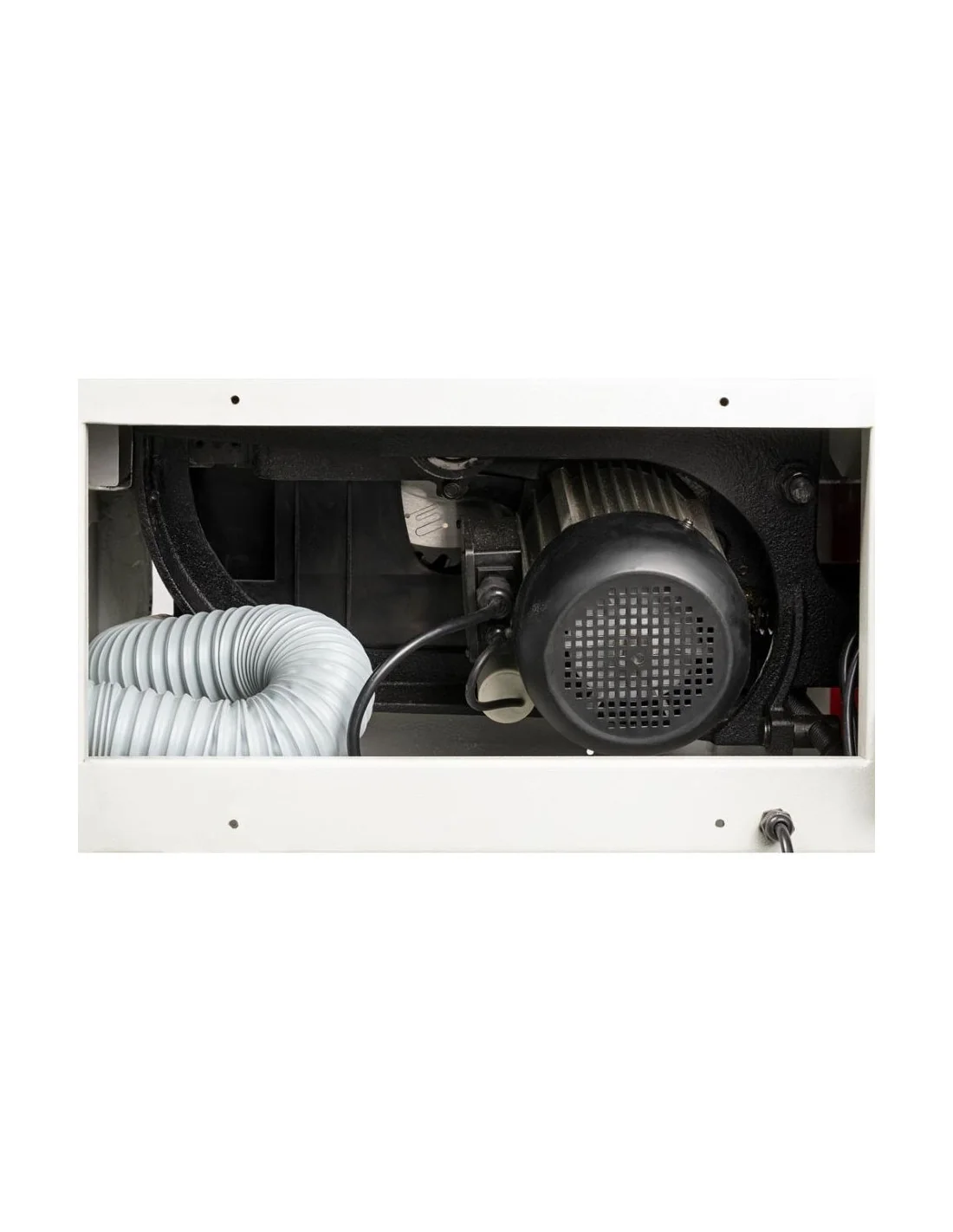

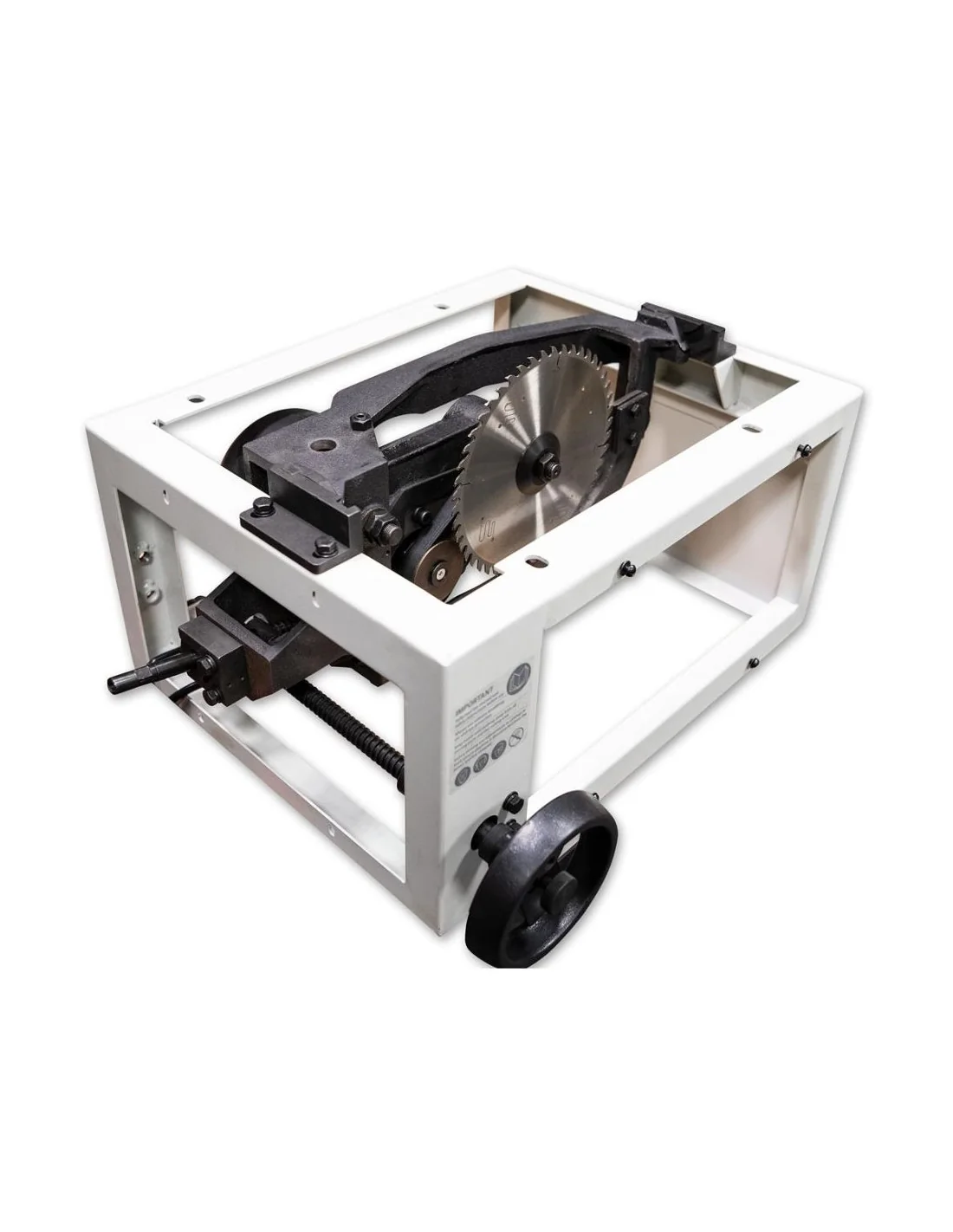

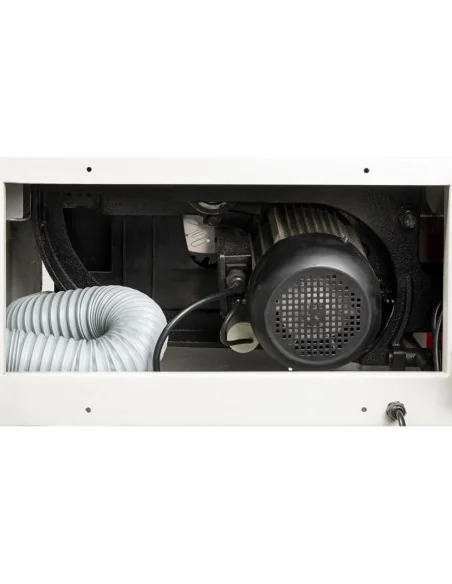

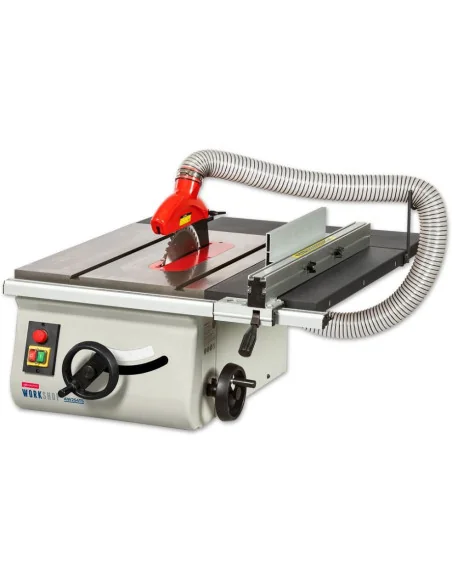

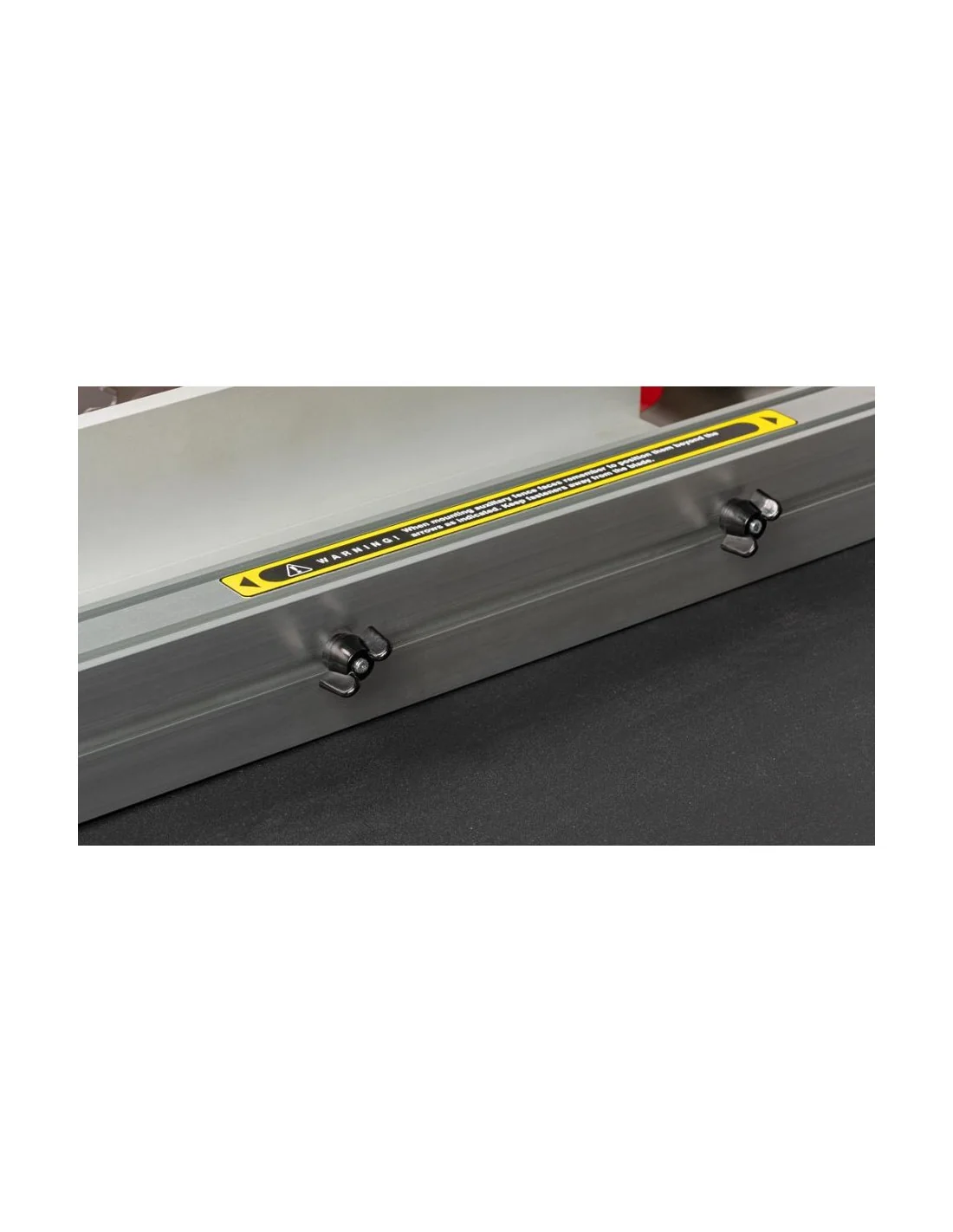

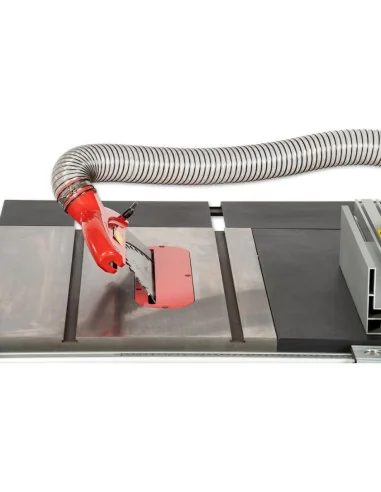

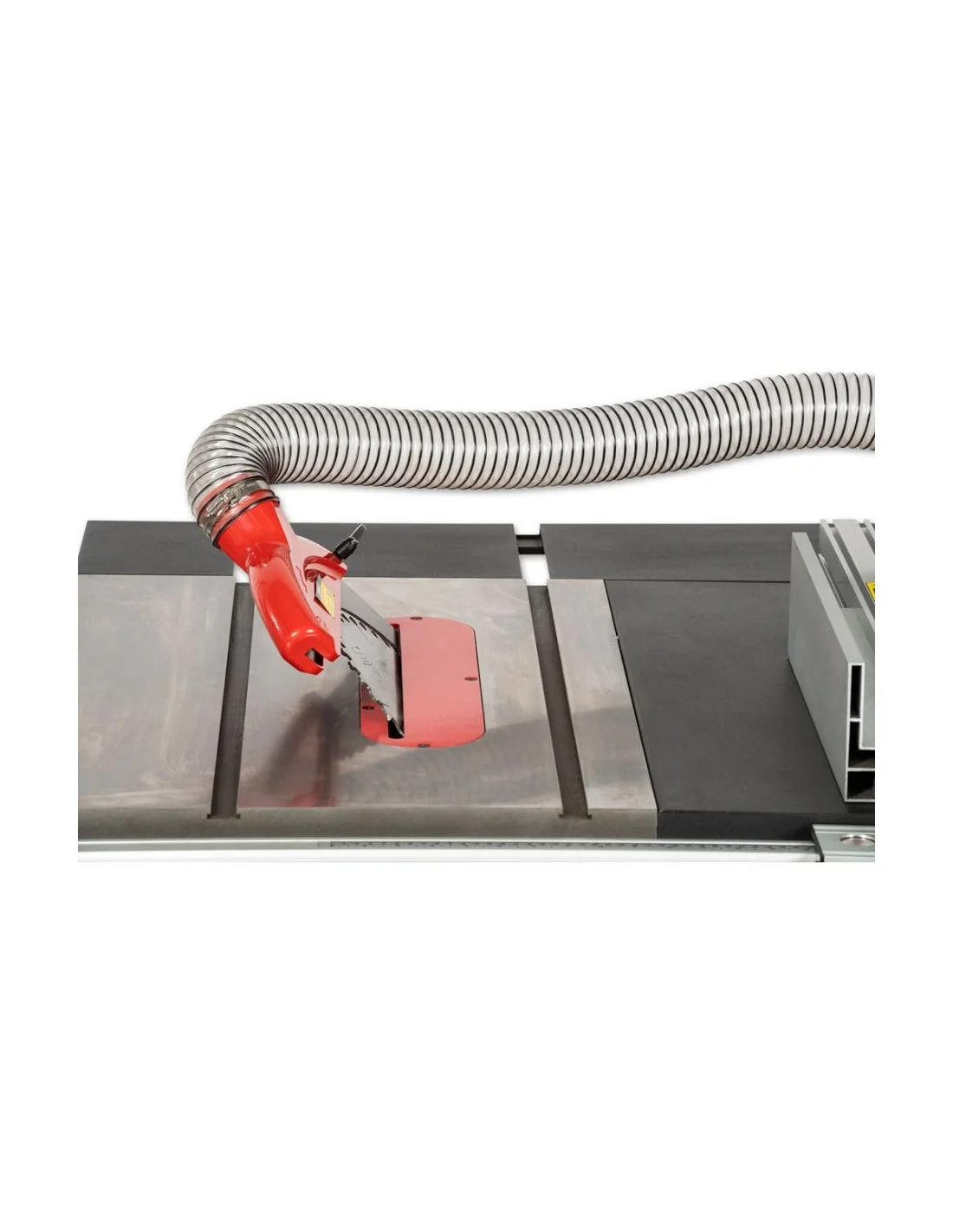

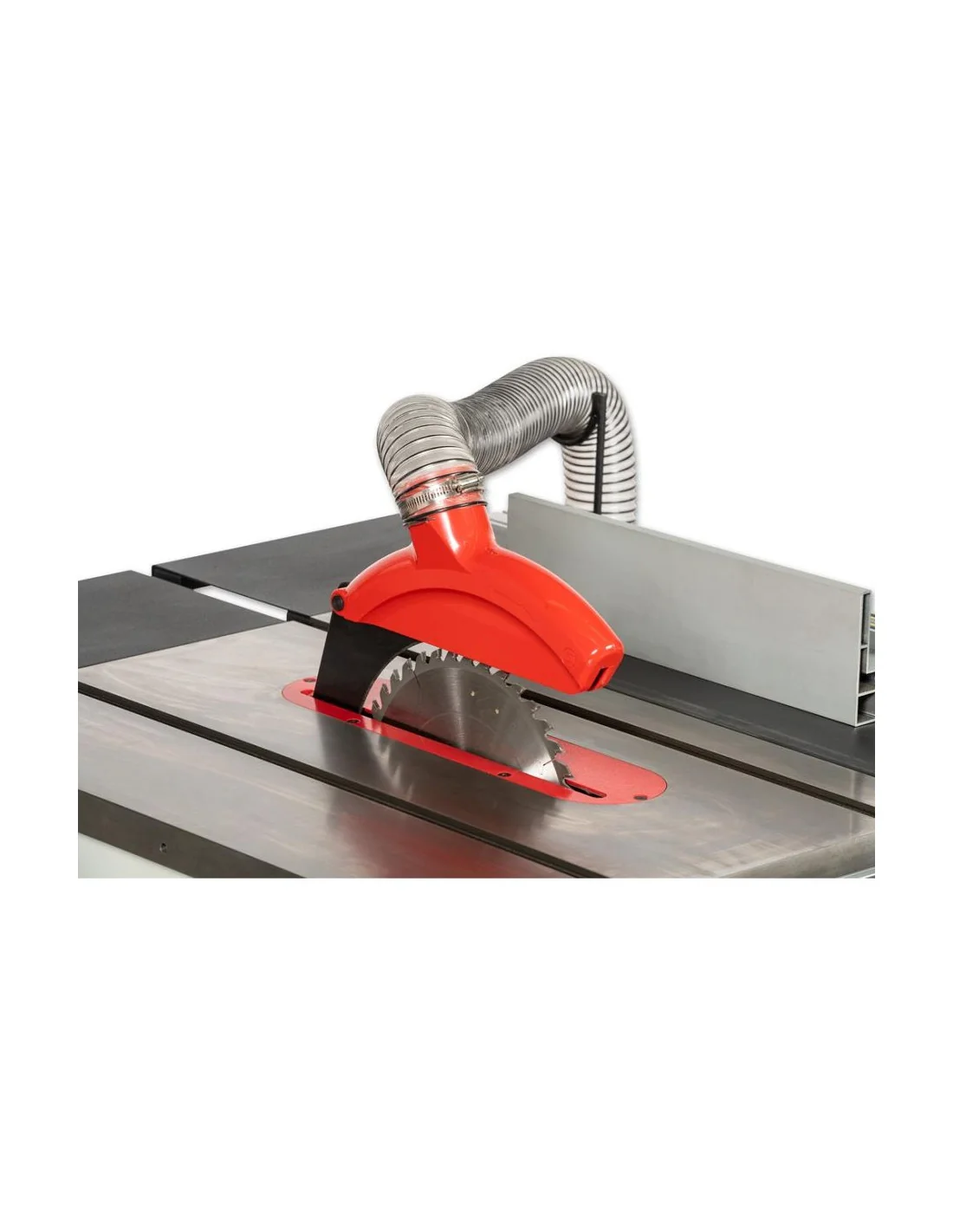

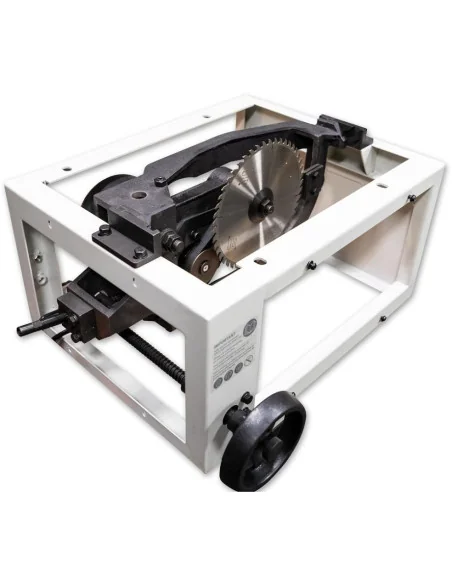

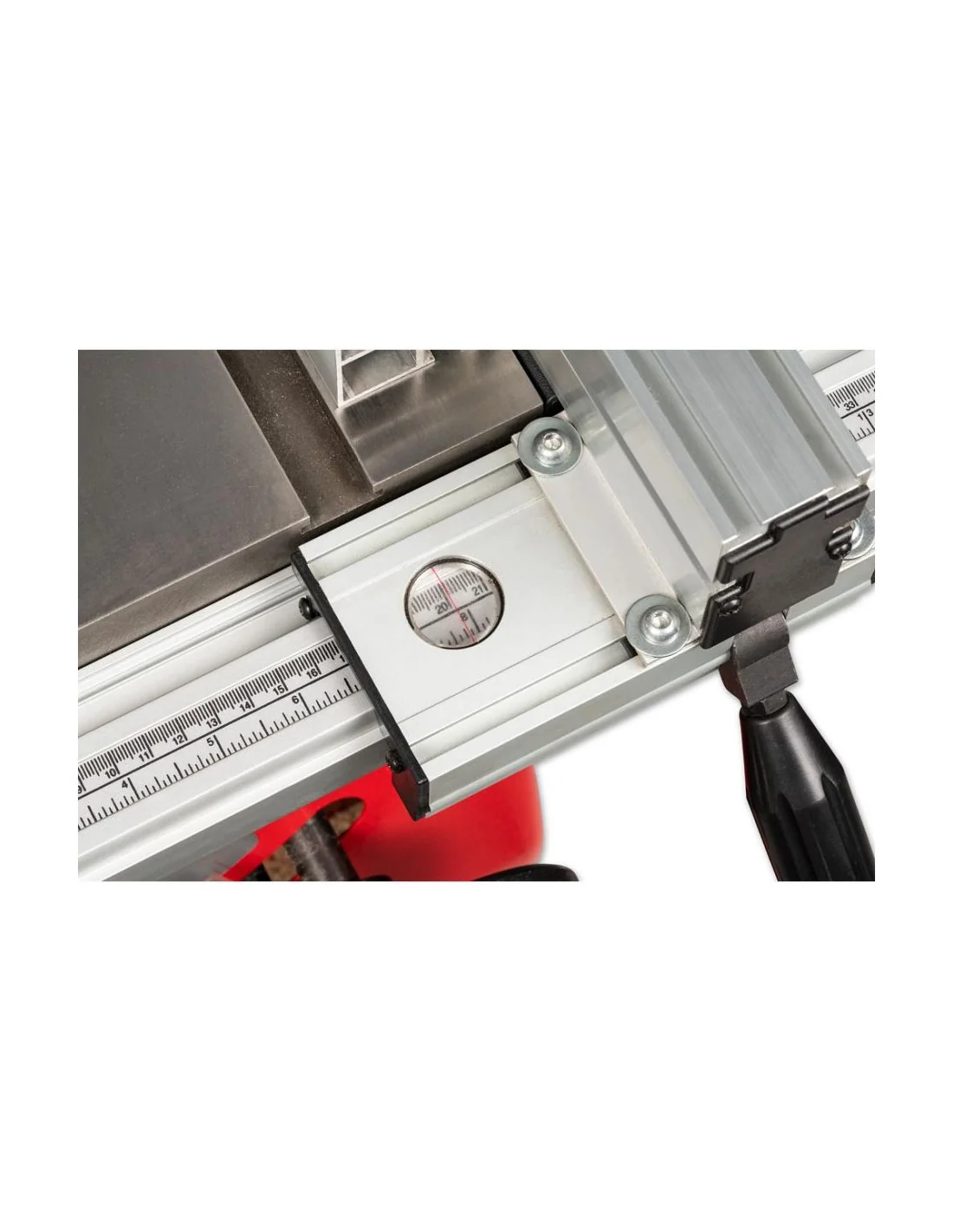

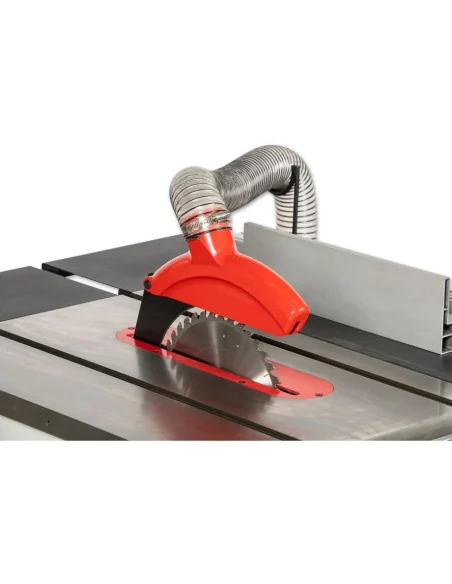

The AW254TS Workshop saw bench brings the cutting capacity of the trade workshop into the home workshop. The saw features a quiet 1,500W induction motor, an important consideration in a residential neighbourhood. The generous ground cast iron table comes with the benefit 19mm mitre fence T-slots on the right and the left of the blade. A 254mm Axcaliber 50 tooth blade, offers a maximum 80mm depth of cut. The full length rip fence includes a sliding sub fence with high/low functions. The tilt and height adjustment mechanism is bolted to the chassis as opposed to the underside of the table. The result is exceptionally smooth operation and without any weight hanging beneath the table causing stress. Efficient dust extraction from above the blade and below the table is brought to a single 100mm dust port for connection to an extractor. The NVR switch includes a separate locking Emergency Stop function. Removable side panels to allow cleaning and maintenance. The AW254TS is supplied with side and rear extension tables. Also available as a package including the sliding table kit and leg stand (720849).
Description
Product Details
- Blade RPM
- 3,000 rpm
- Table Height
- 375 mm (bench mounted)
- Max Depth of Cut @ 45º
- 56 mm
- Blade Tilt
- 0° to 45°
- Max Width of Cut with Fence
- 430 mm with R/H Ext
- Table Size With Extensions
- 760 mm x 900 mm
- Chuck Diameter
- 80 mm
- T Slot Size
- 19 mm x 9.5 mm (3/4" x 3/8")
- Table Size
- 485 mm x 680 mm
- Overall L x W x H
- 1,070 mm x 800 mm x 649 mm (without stand)
- Dust Extraction Outlet
- 100 mm & 63 mm
- Plug Fitted
- UK 3 pin plug
- Power
- 1.5 kW
- Nett Weight
- 89 kg
- Rating
- Home Workshop
- Min Extraction Airflow Required
- 1,000 m³/hr
- Sound Power Level LWA [Uncertainty K]
- 94 dB(A) [2.5 dB]
- Sound Pressure Level LpA [Uncertainty K]
- 78 dB(A) [2.5 dB]
- Voltage
- 230 V
- Blade Diameter
- 254 mm
- Bore Size
- 30 mm
