    107710
    BGN589.94
    • 80mm depth of cut - 200mm width of cut
    • Compact machine perfect for hobbies and crafts

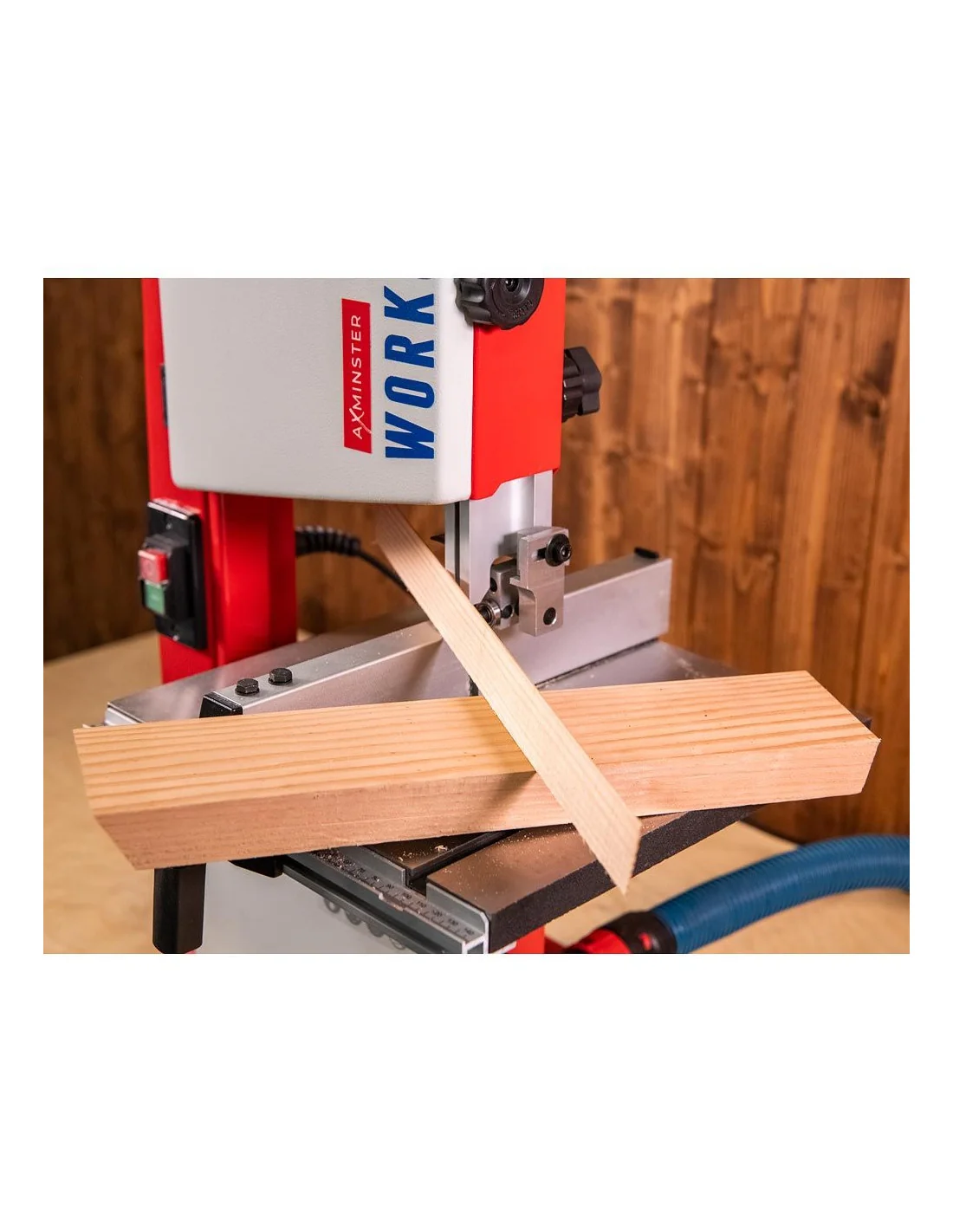

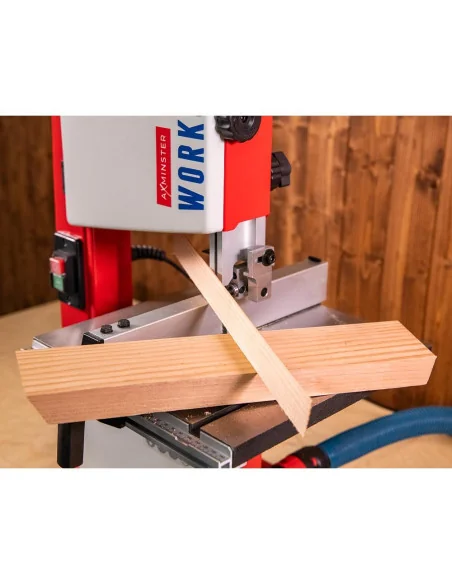

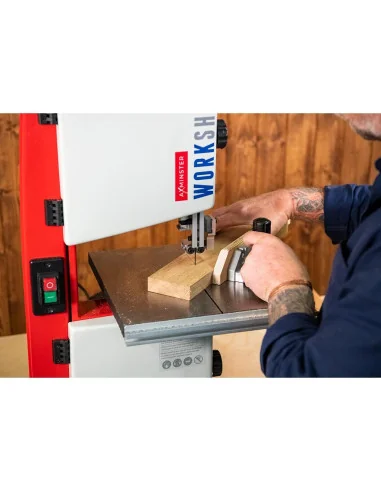

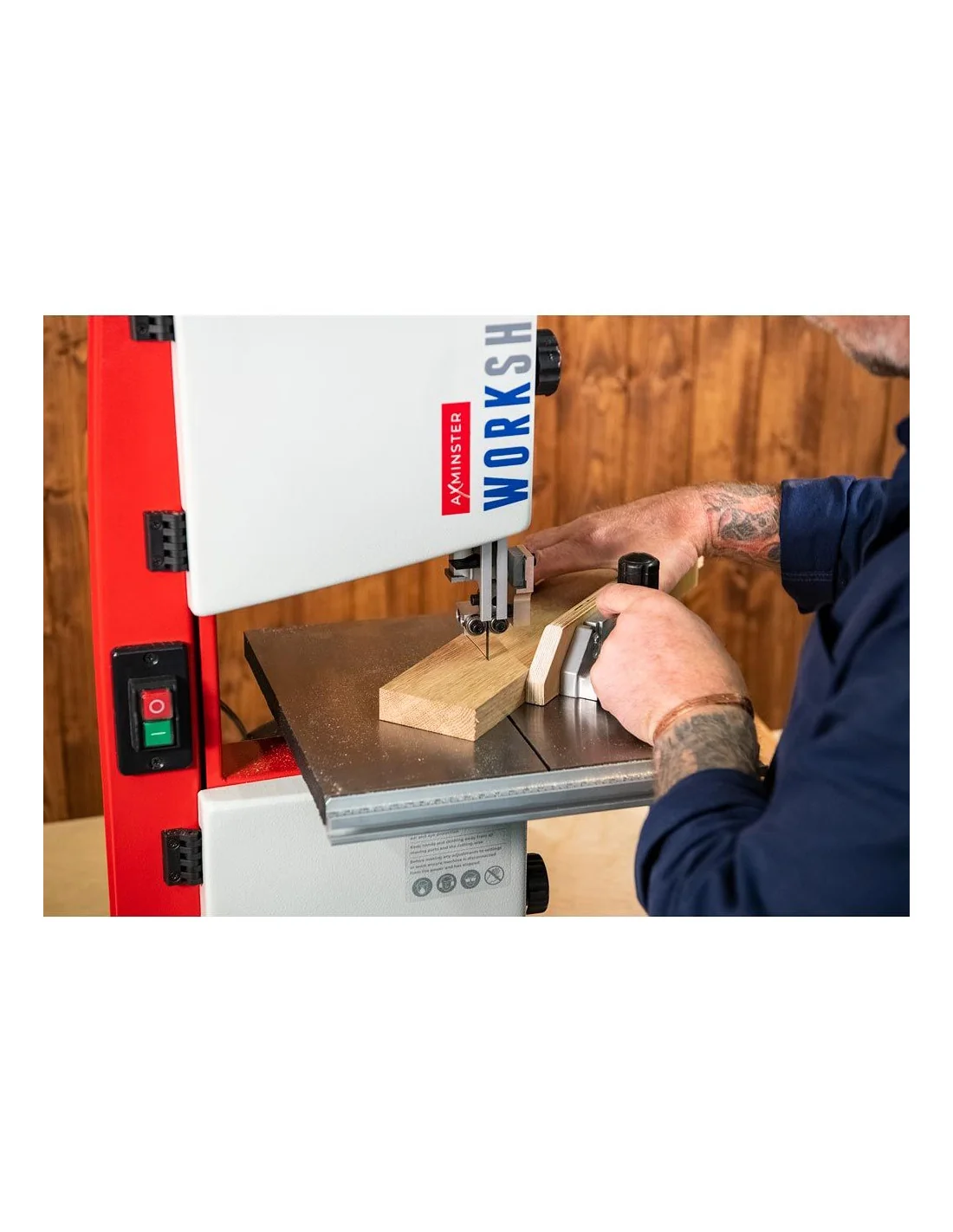

    • Rigid, quick locking rip fence, doors fitted with safety switches

    Description

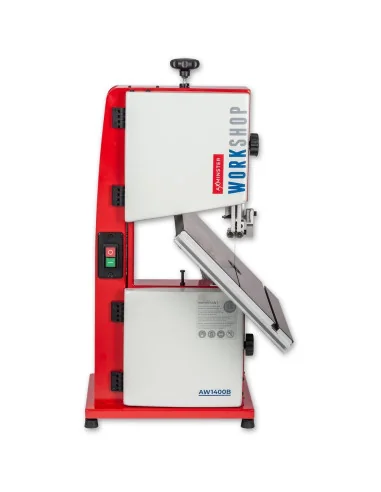

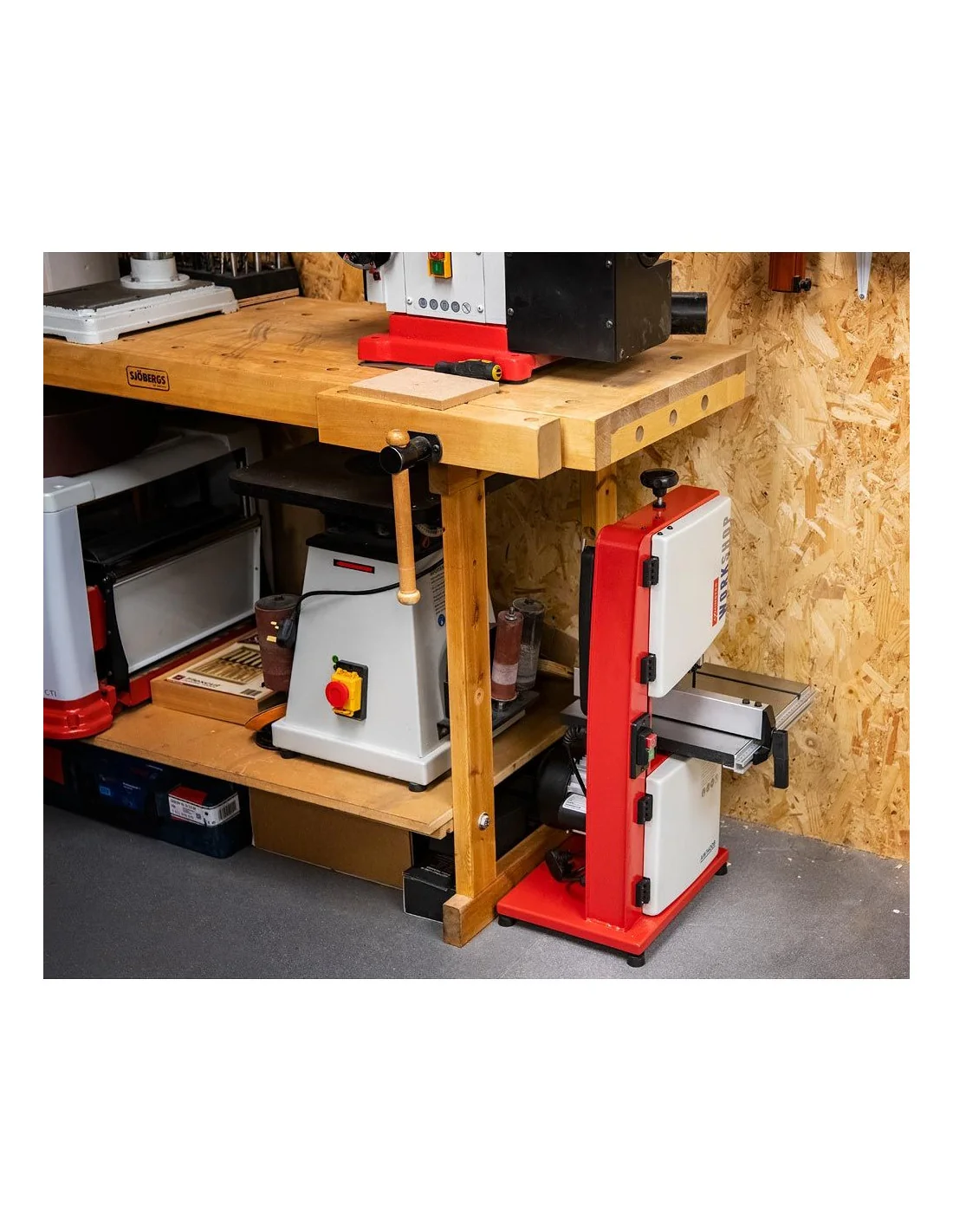

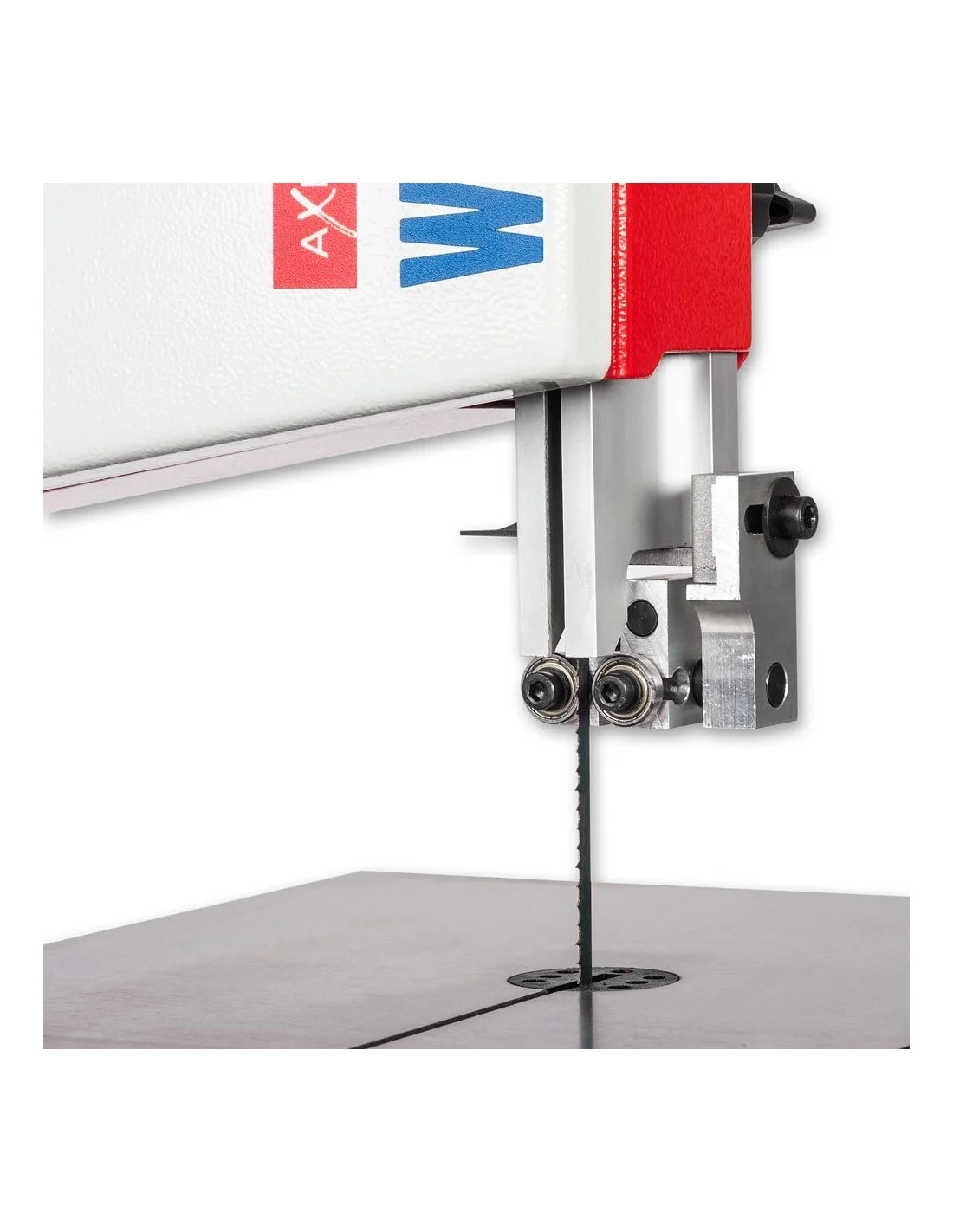

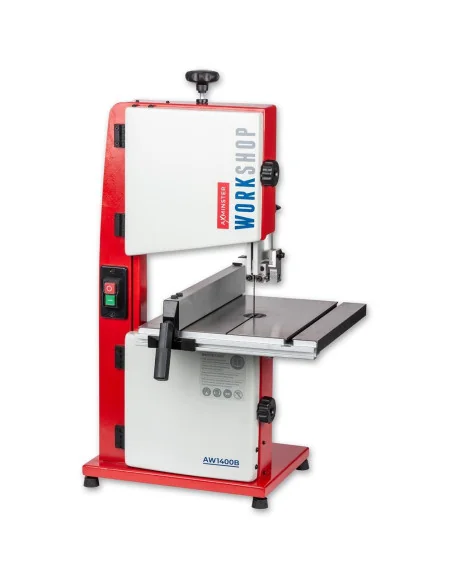

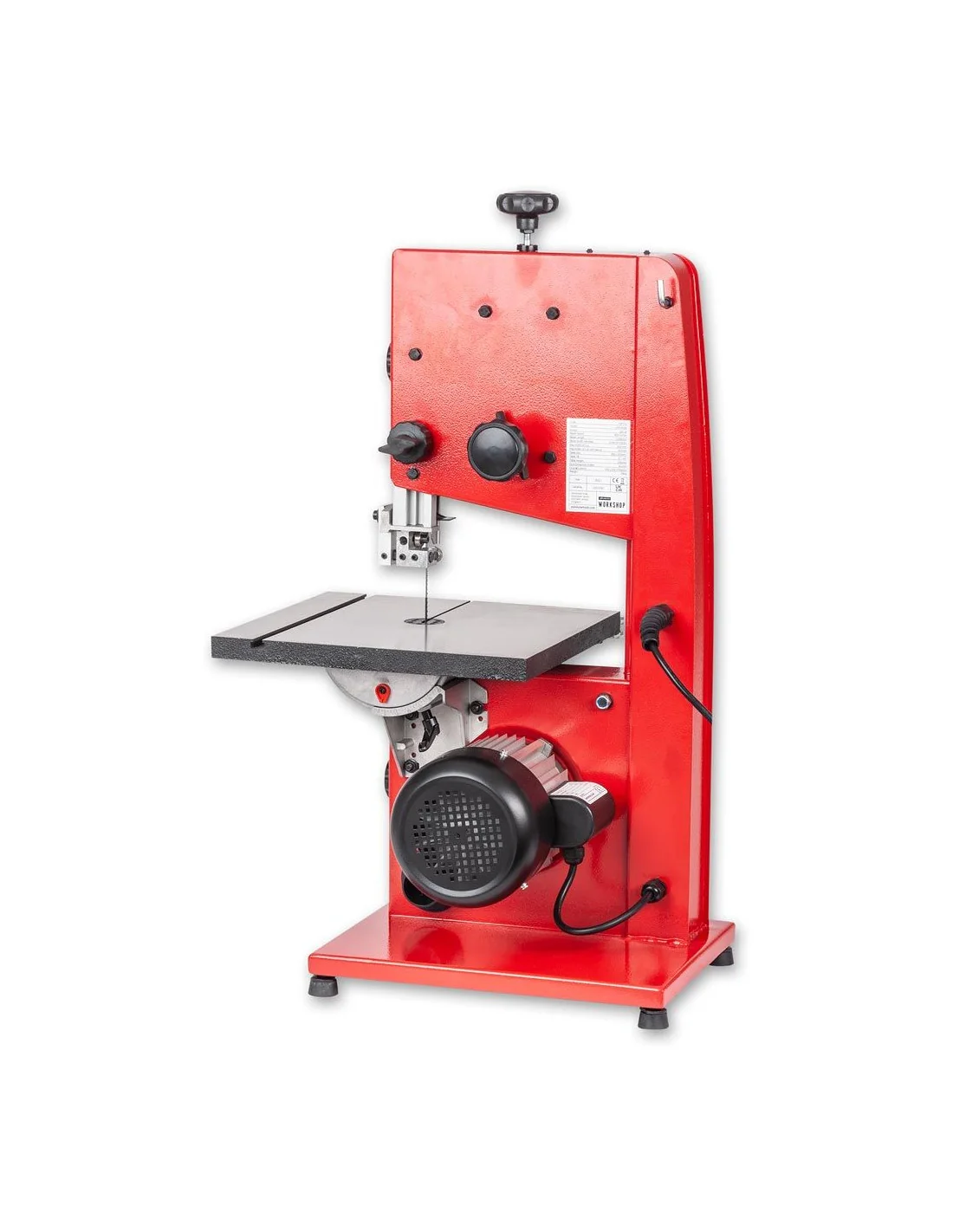

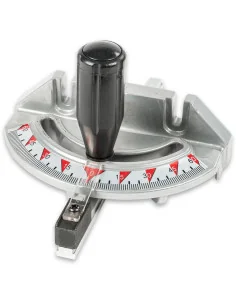

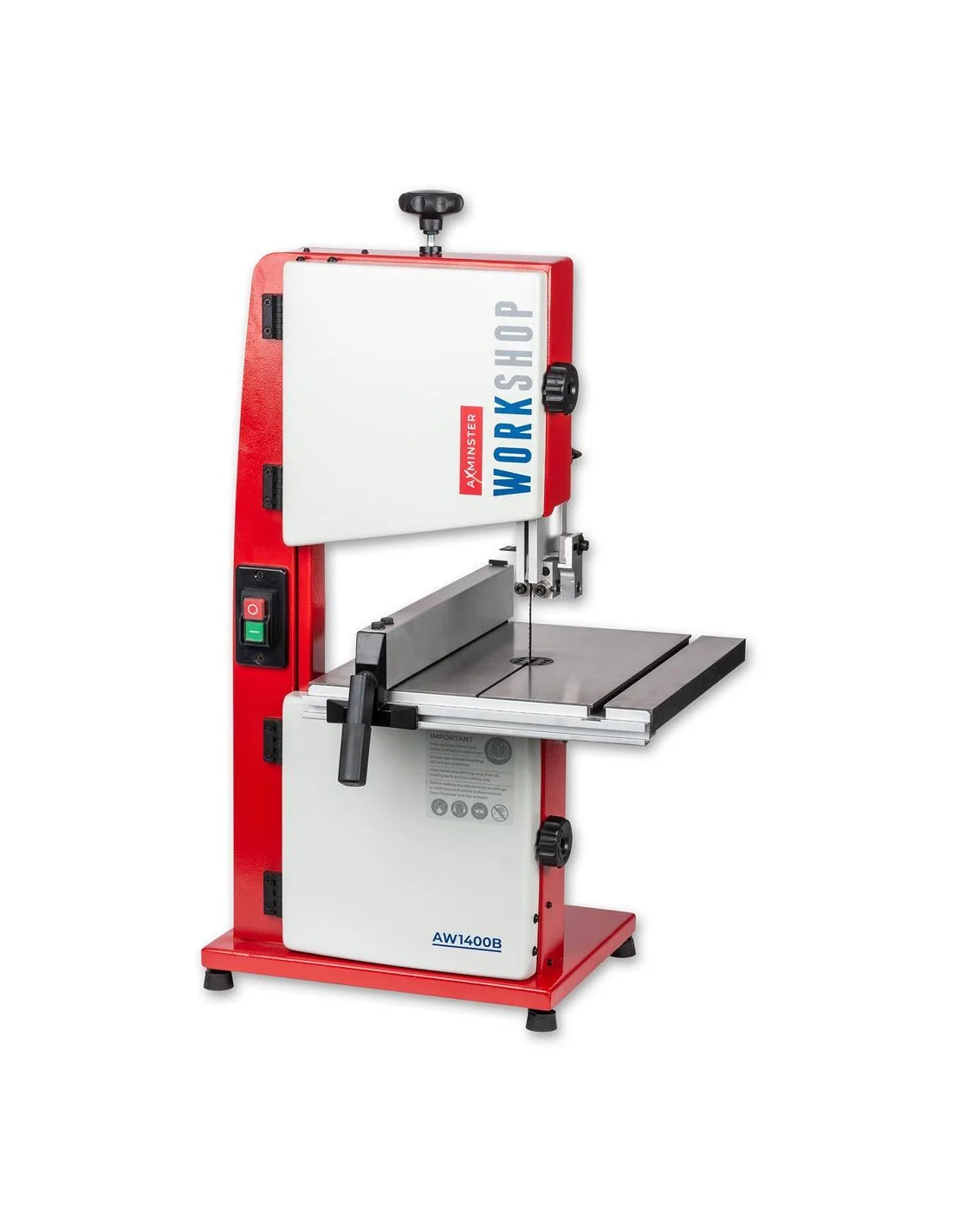

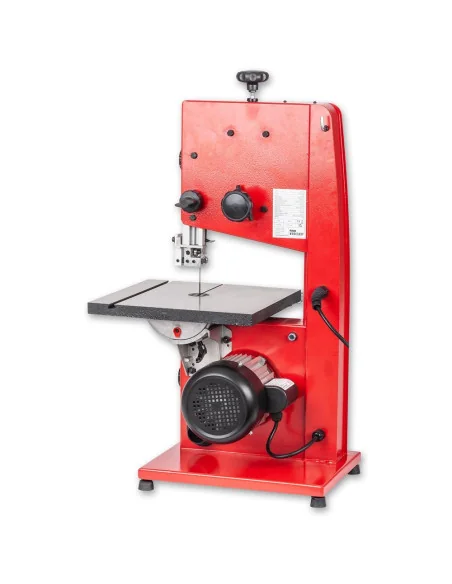

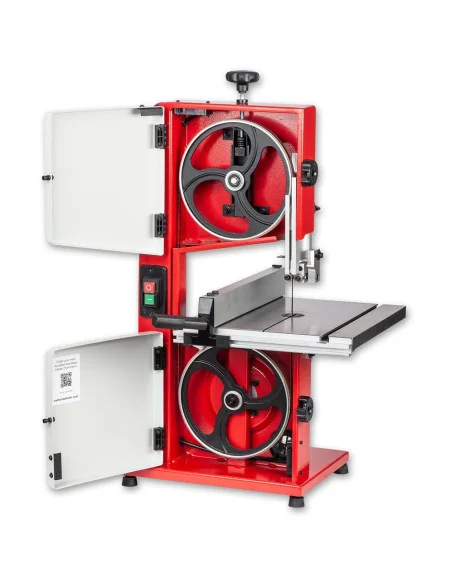

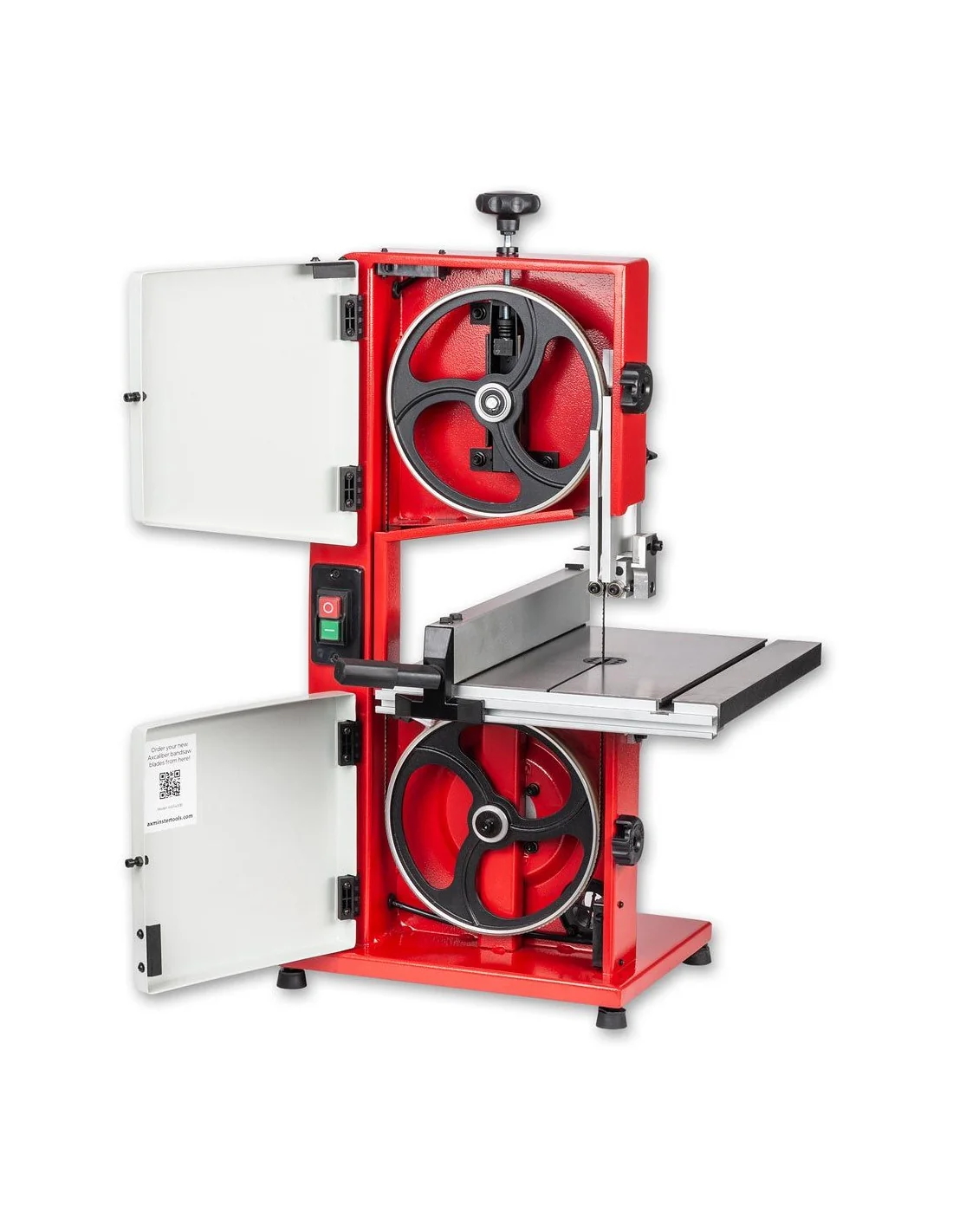

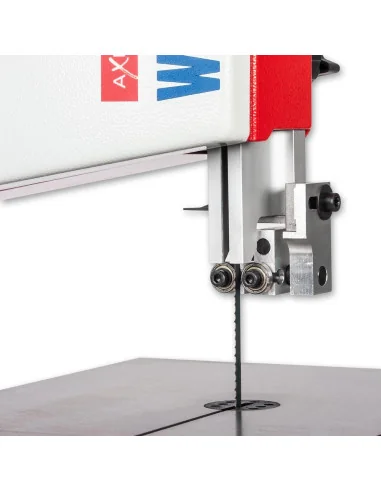

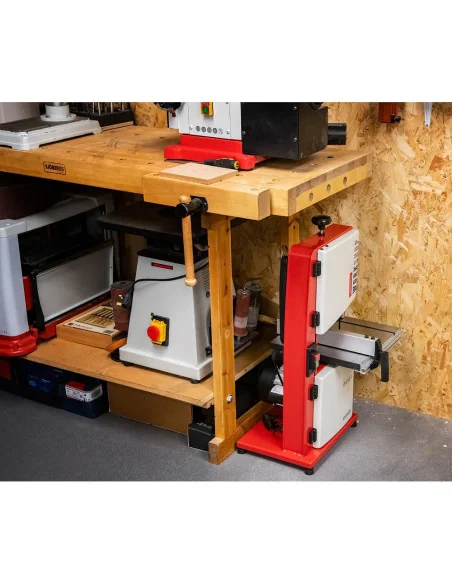

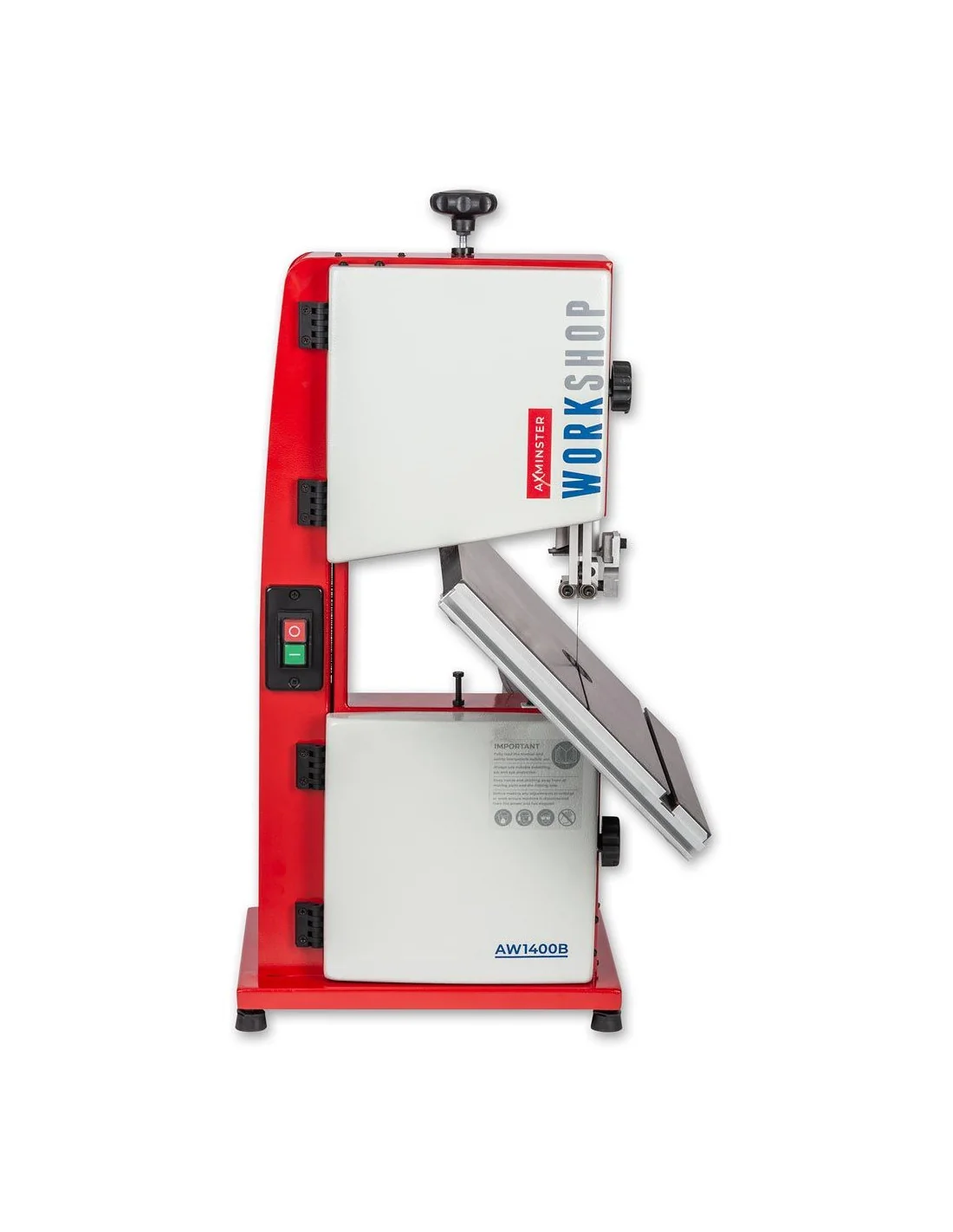

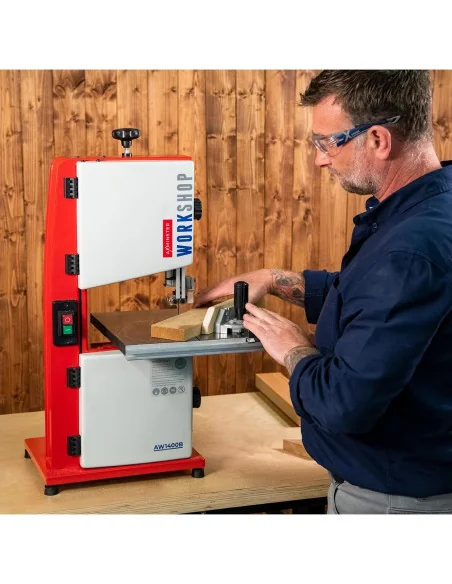

    The Axminster Workshop AW1400B bench mounted bandsaw is designed for the small workshop and easily moved when not in use. It features a strong welded steel chassis with a cast iron table. It will take blades from 4.8 to 9.5mm wide. Bearing blade guides and thrust bearing provide maximum blade control for improved accuracy over similar entry level bandsaws. The top guide blade has a rack and pinion height adjustment, giving a maximum of 80mm depth of cut. It has a direct drive motor and balanced cast alloy wheels. The top wheel is mounted in a welded steel sub frame with blade tensioning and tracking controls conveniently close. A single dust outlet port provides efficient dust removal when connected to a suitable vacuum extractor, which must be recommended for increased cutting performance. The machine is supplied with a 6mm x 6tpi general purpose blade made from UK manufactured stock. A selection of different blades are available to suit many jobs. An optional mitre fence is available to fit this bandsaw (sold separately). This is a superb small bandsaw for a hobby or craft workshop or as an additional machine for smaller work.

    Product Details

    Bandsaw Blade Length
    1,400 mm (55")
    T Slot Size
    13 mm x 9mm
    Blade Speed
    800 m/min
    Abrasive Roll Width
    102 mm
    Blade Width Min\Max
    4.8 mm to 9.5 mm
    Wheel Diameter
    200 mm

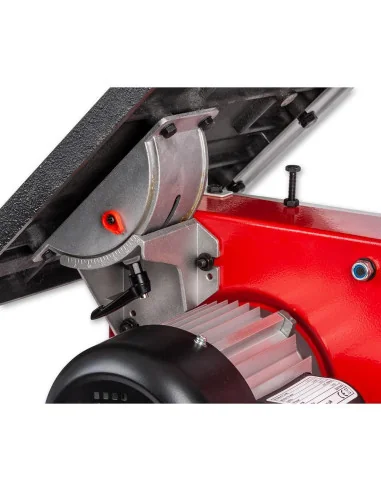

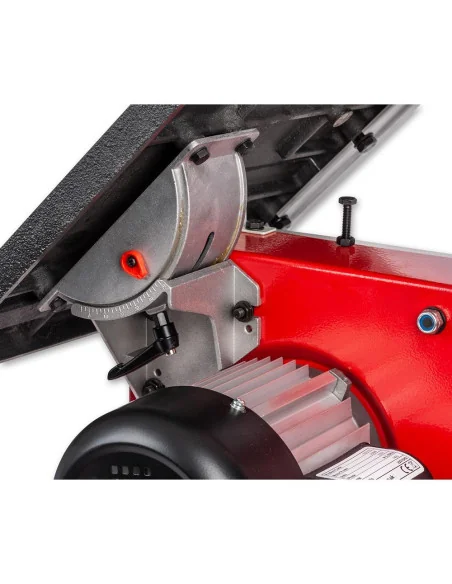

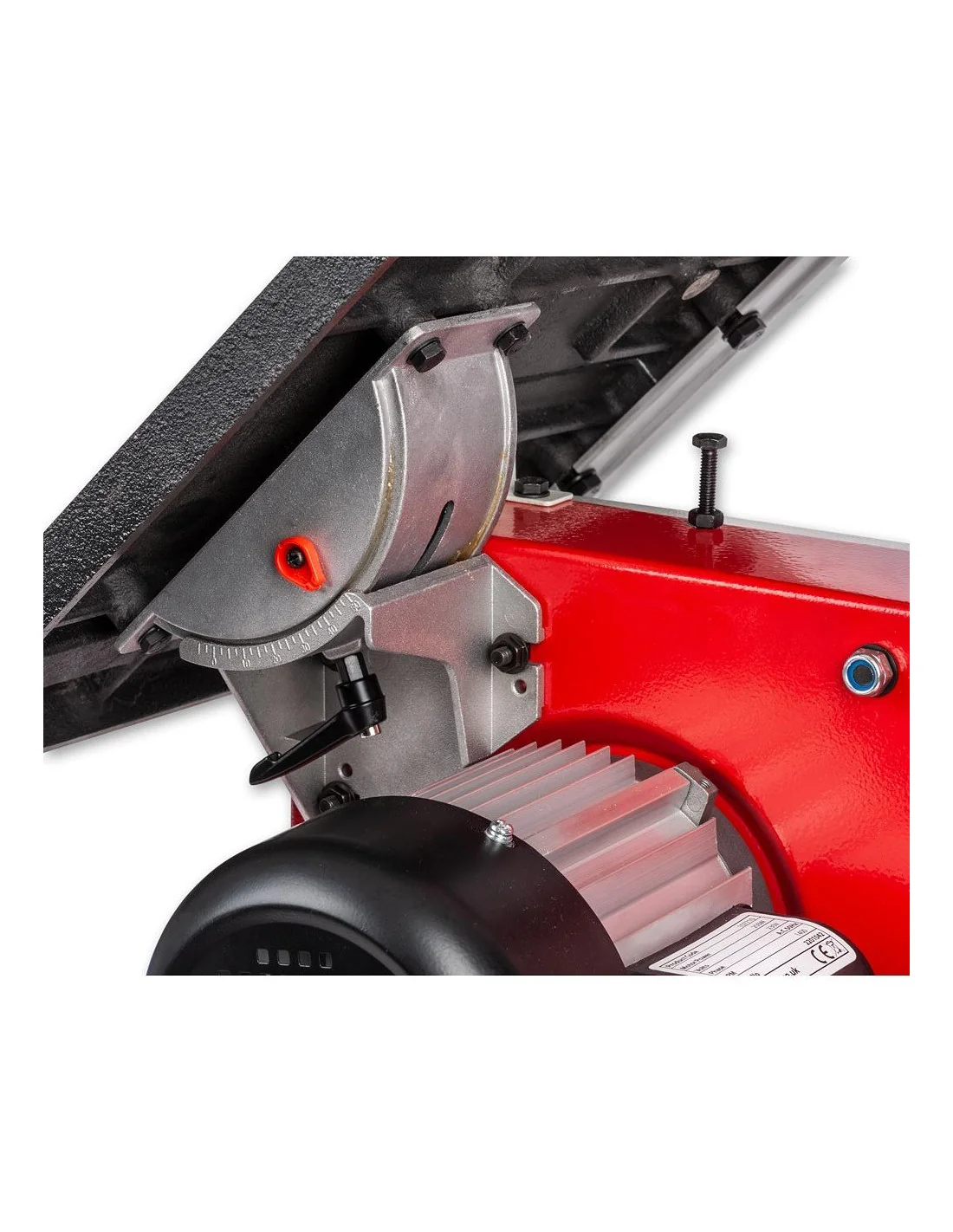

    Table Tilt
    0° - 45°
    Chuck Diameter
    80 mm
    Table Height on Stand
    N/A
    Table Size
    300 mm x 300 mm
    Table Height
    290 mm
    Blade Width
    40 mm
    Overall L x W x H
    450 mm x 430 mm x 700 mm
    Nett Weight
    20 kg
    Rating
    Home Workshop
    Min Extraction Airflow Required
    200 m³/hr
    Sound Power Level LWA [Uncertainty K]
    97 dB(A) [3.0 dB]
    Motor Power
    250 W
    Sound Pressure Level LpA [Uncertainty K]
    83.5 dB(A) [3.0 dB]
    Voltage
    230 V
