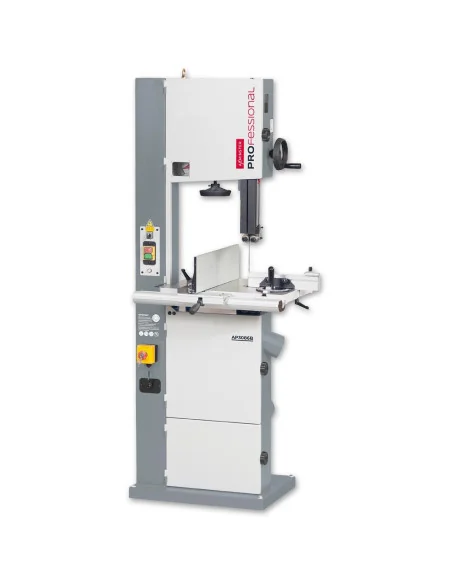

Axminster Professional AP3086B Bandsaw - 230V
    Axminster Professional AP3086B Bandsaw - 230V
    Axminster Professional AP3086B Bandsaw - 230V
    Axminster Professional AP3086B Bandsaw - 230V
    Axminster Professional AP3086B Bandsaw - 230V
    Axminster Professional AP3086B Bandsaw - 230V
    Axminster Professional AP3086B Bandsaw - 230V
    Axminster Professional AP3086B Bandsaw - 230V
    Axminster Professional AP3086B Bandsaw - 230V
    Axminster Professional AP3086B Bandsaw - 230V

    Axminster Professional AP3086B Bandsaw - 230V

    107661
    BGN6,811.44
    • Max depth of cut 356mm, max width of cut 342mm
    • Powerful, smooth running, electro-mechanically braked induction motor
    • Heavy duty blade guide bearings

    Description

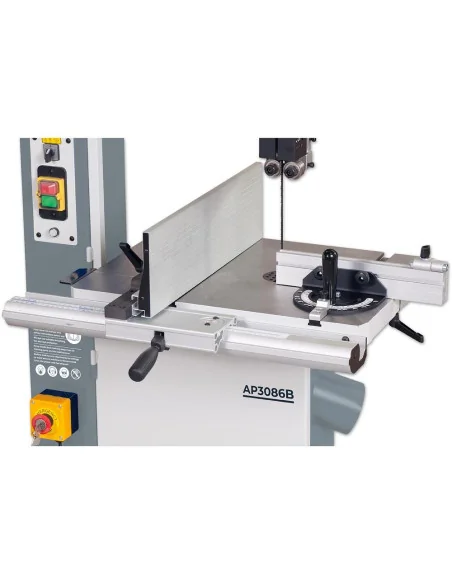

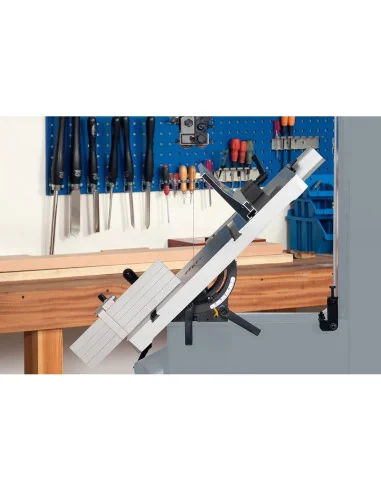

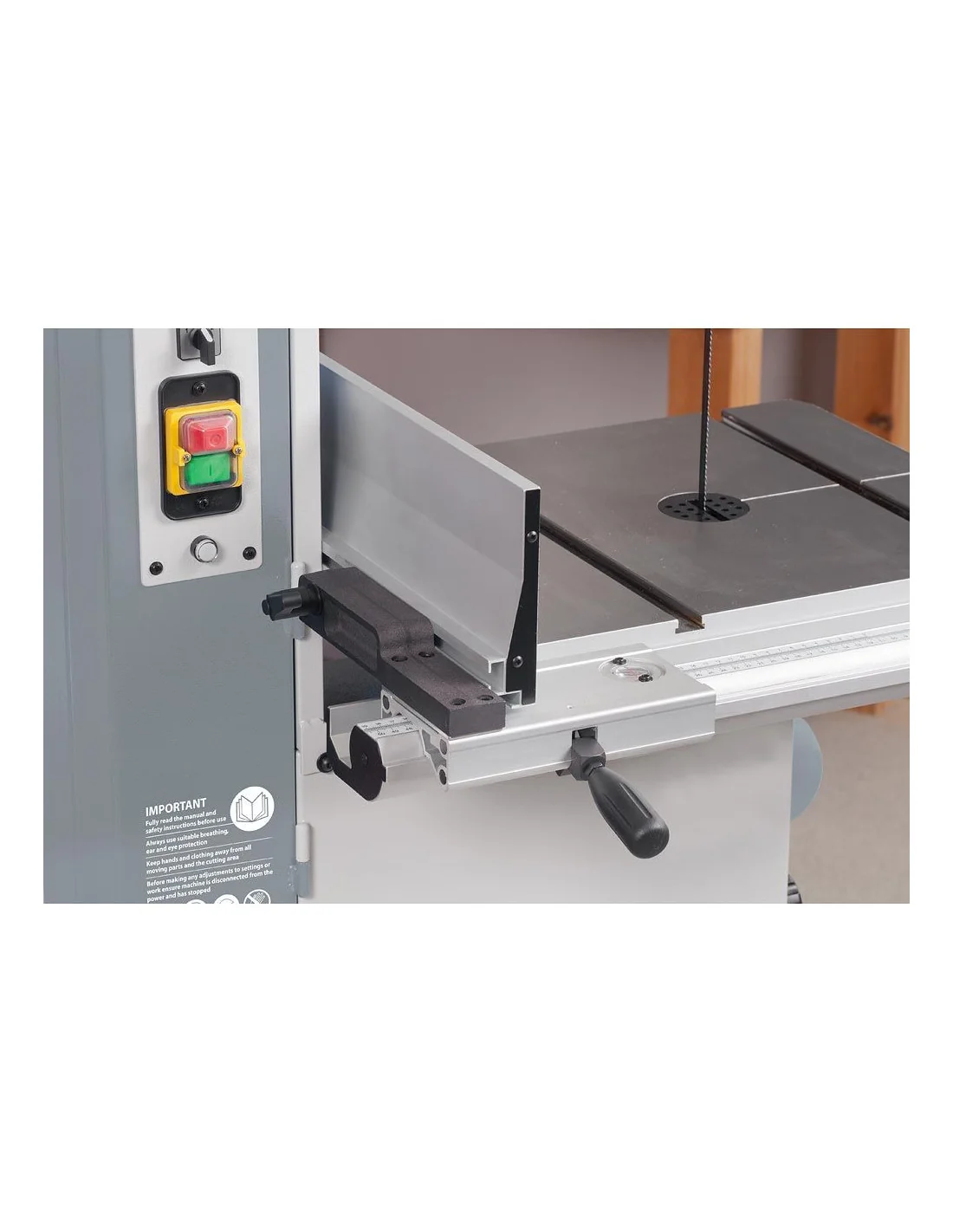

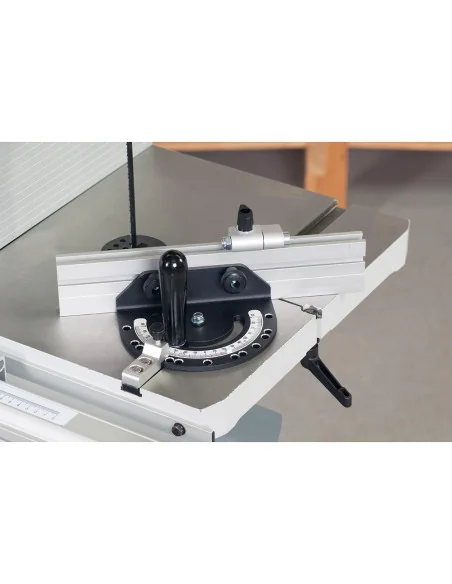

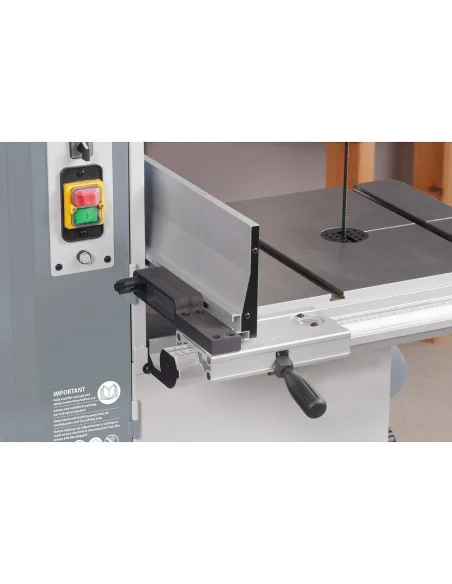

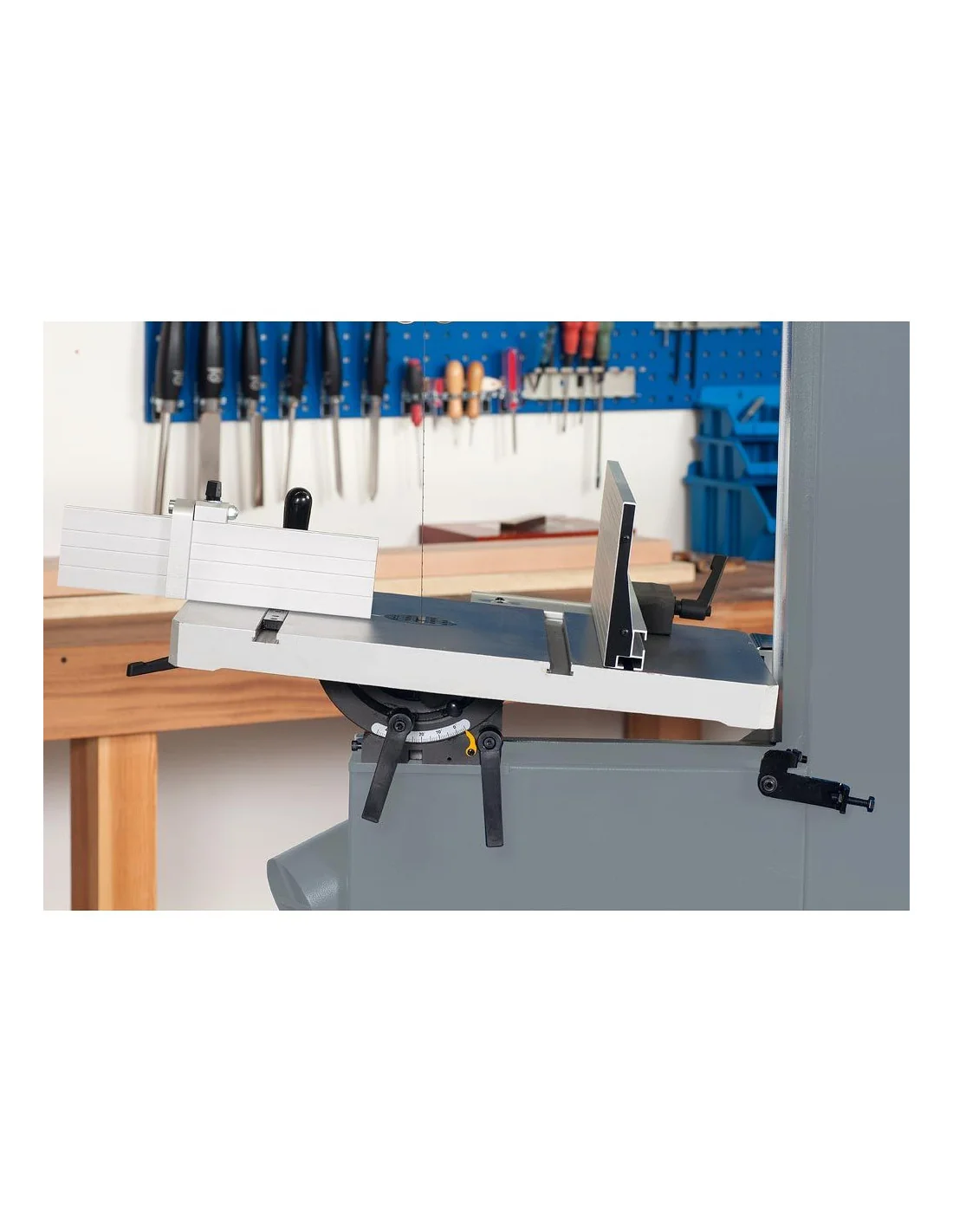

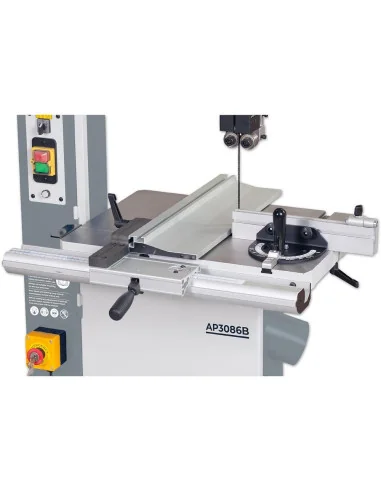

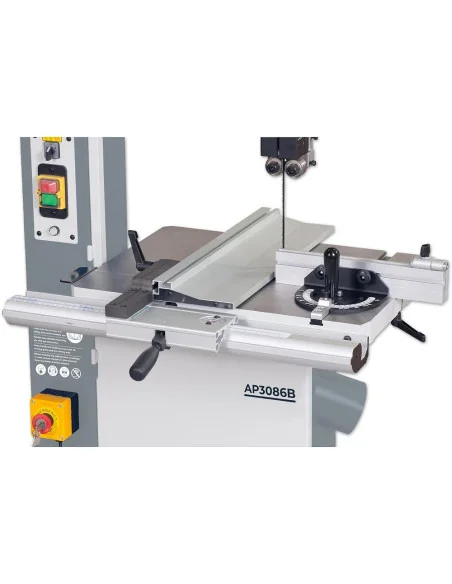

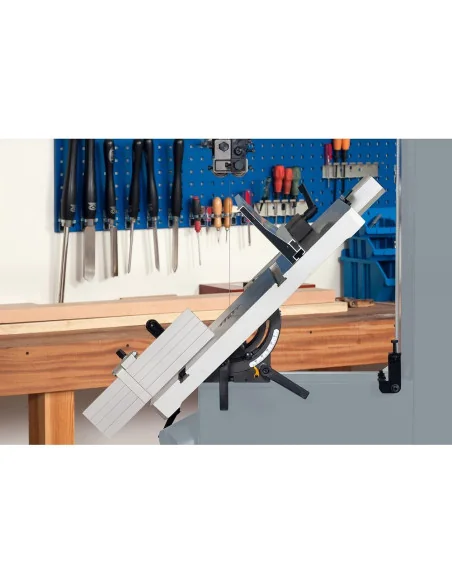

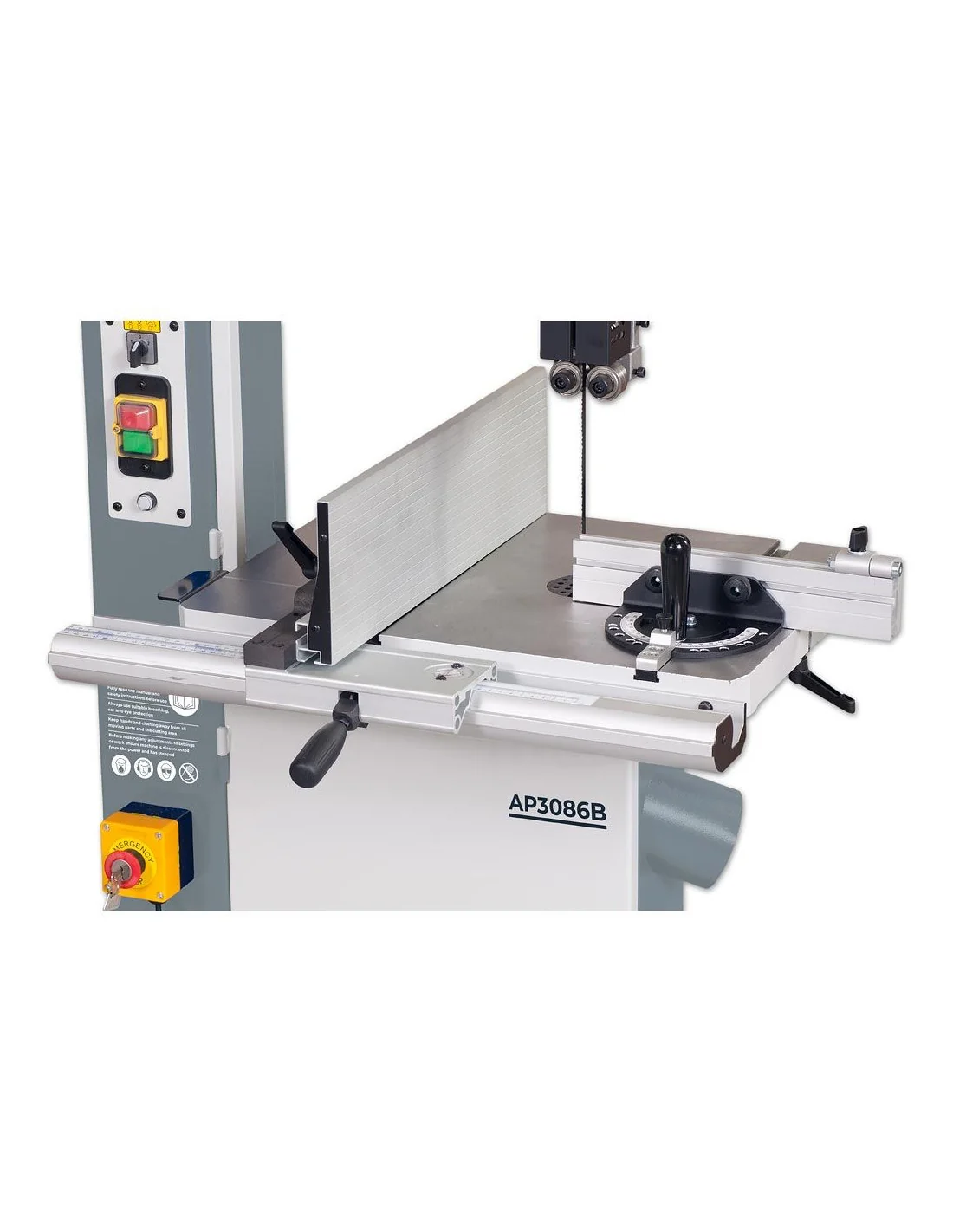

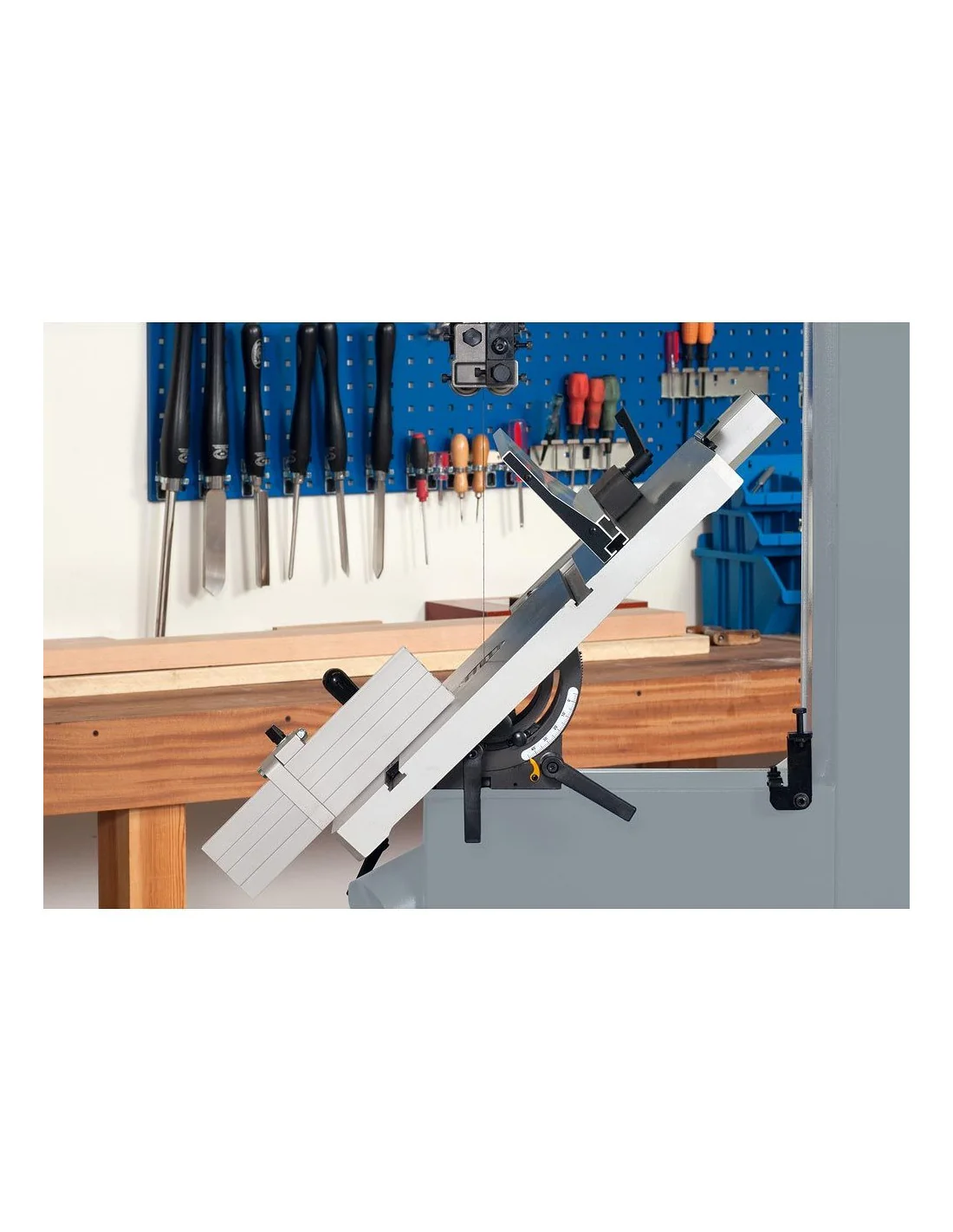

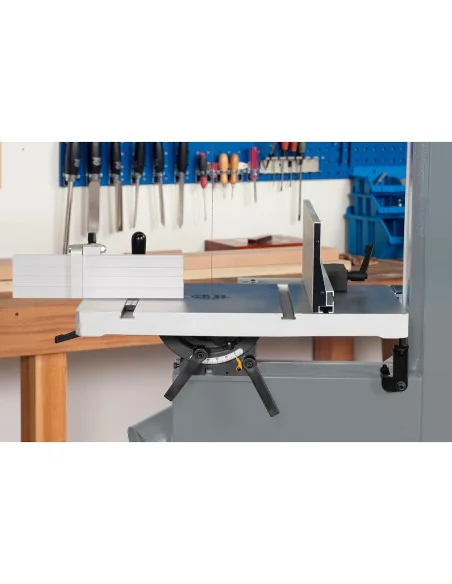

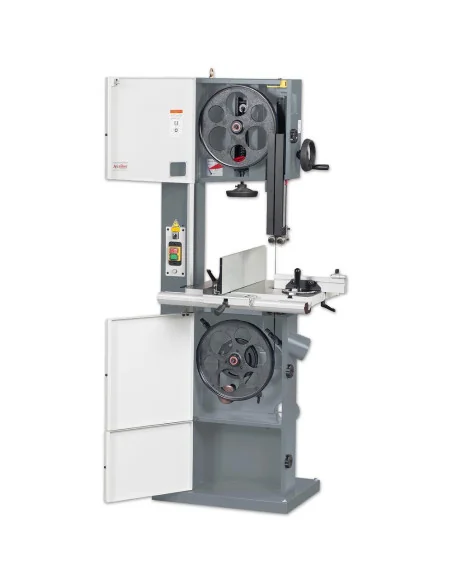

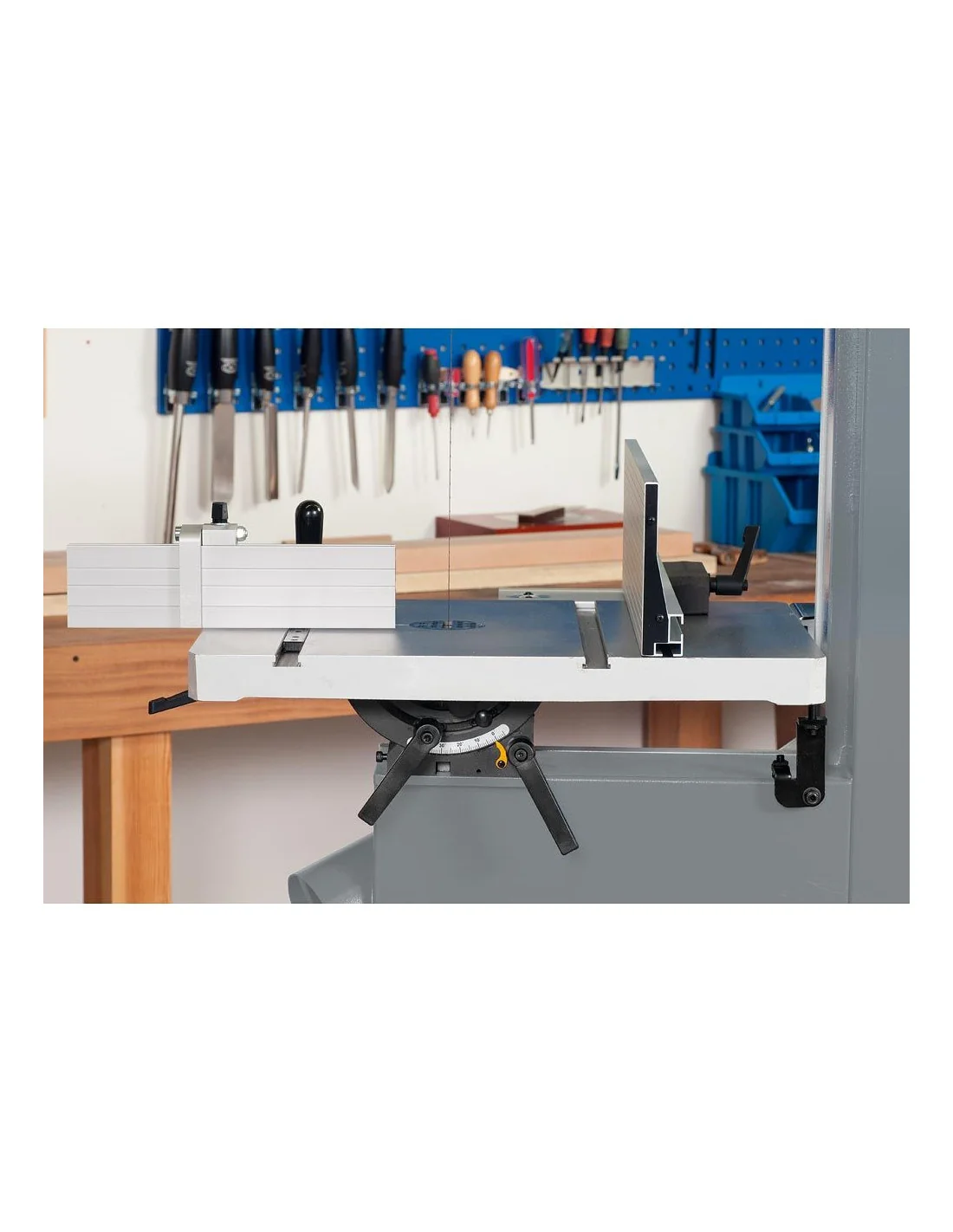

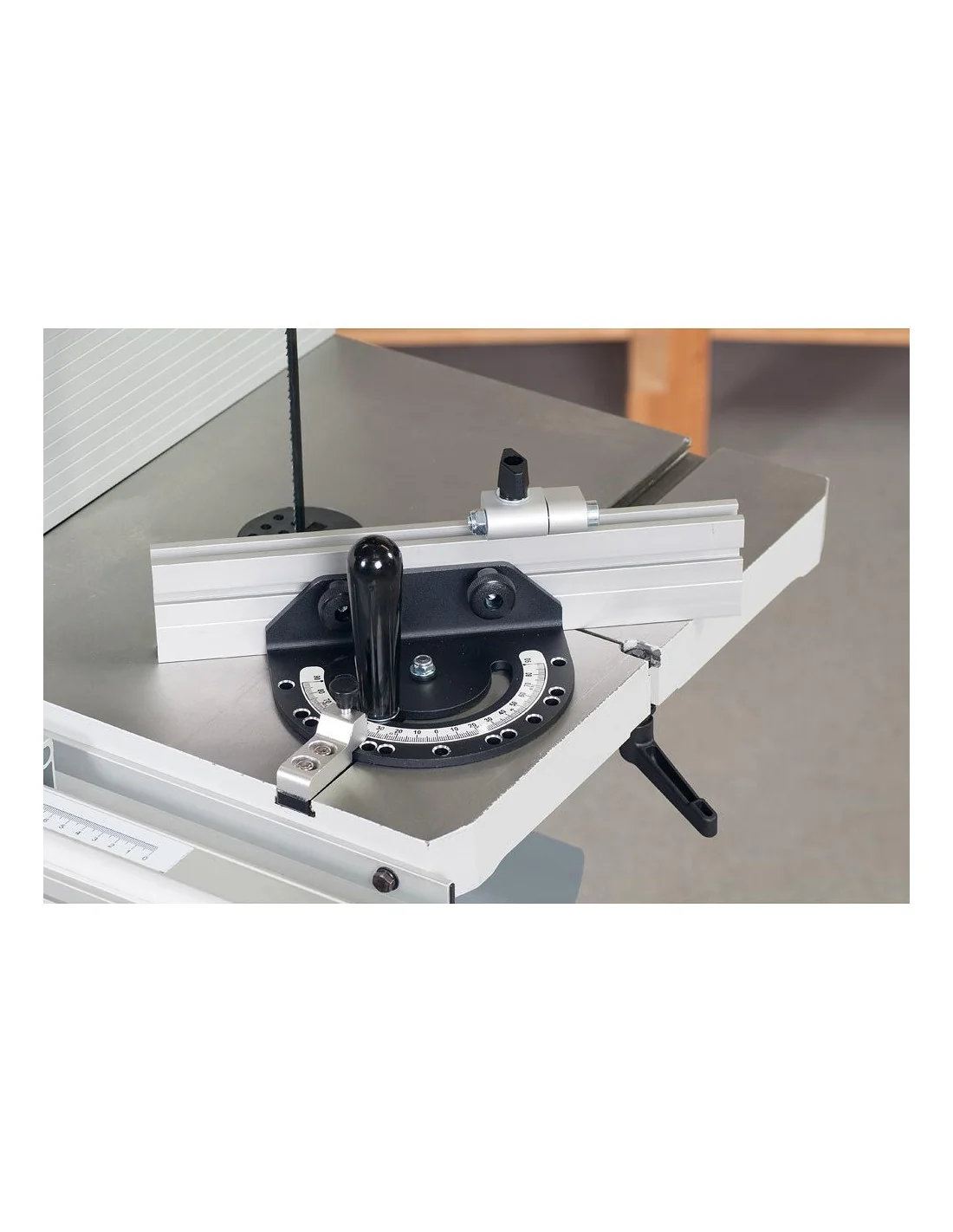

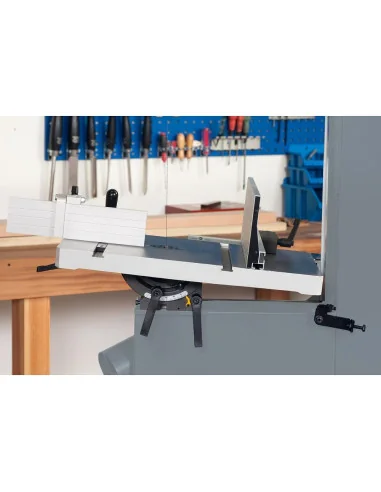

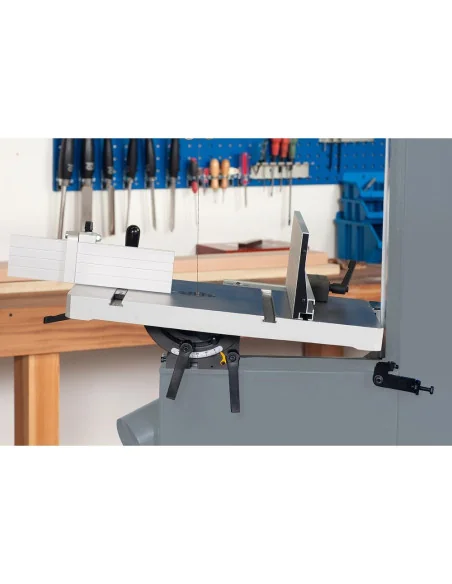

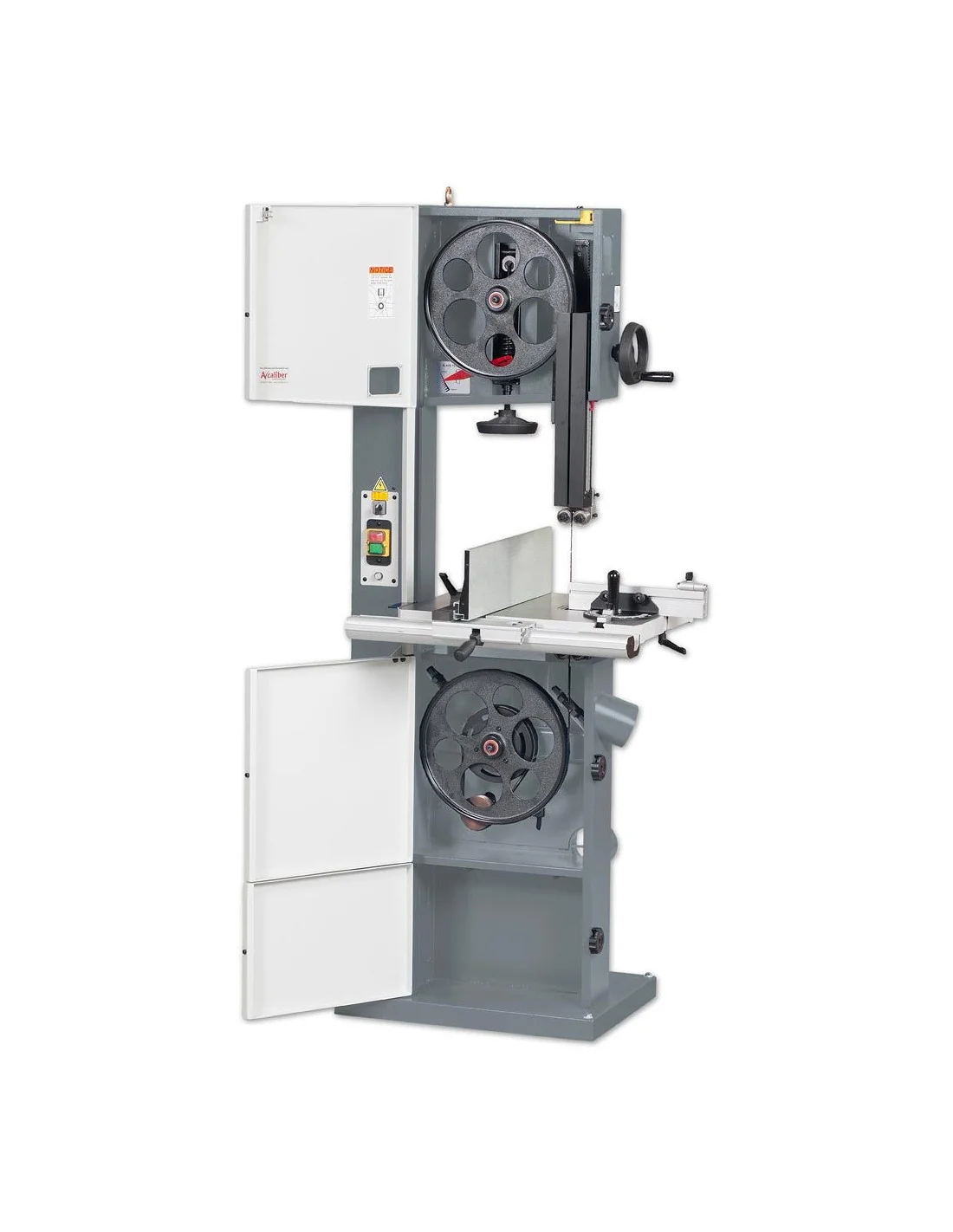

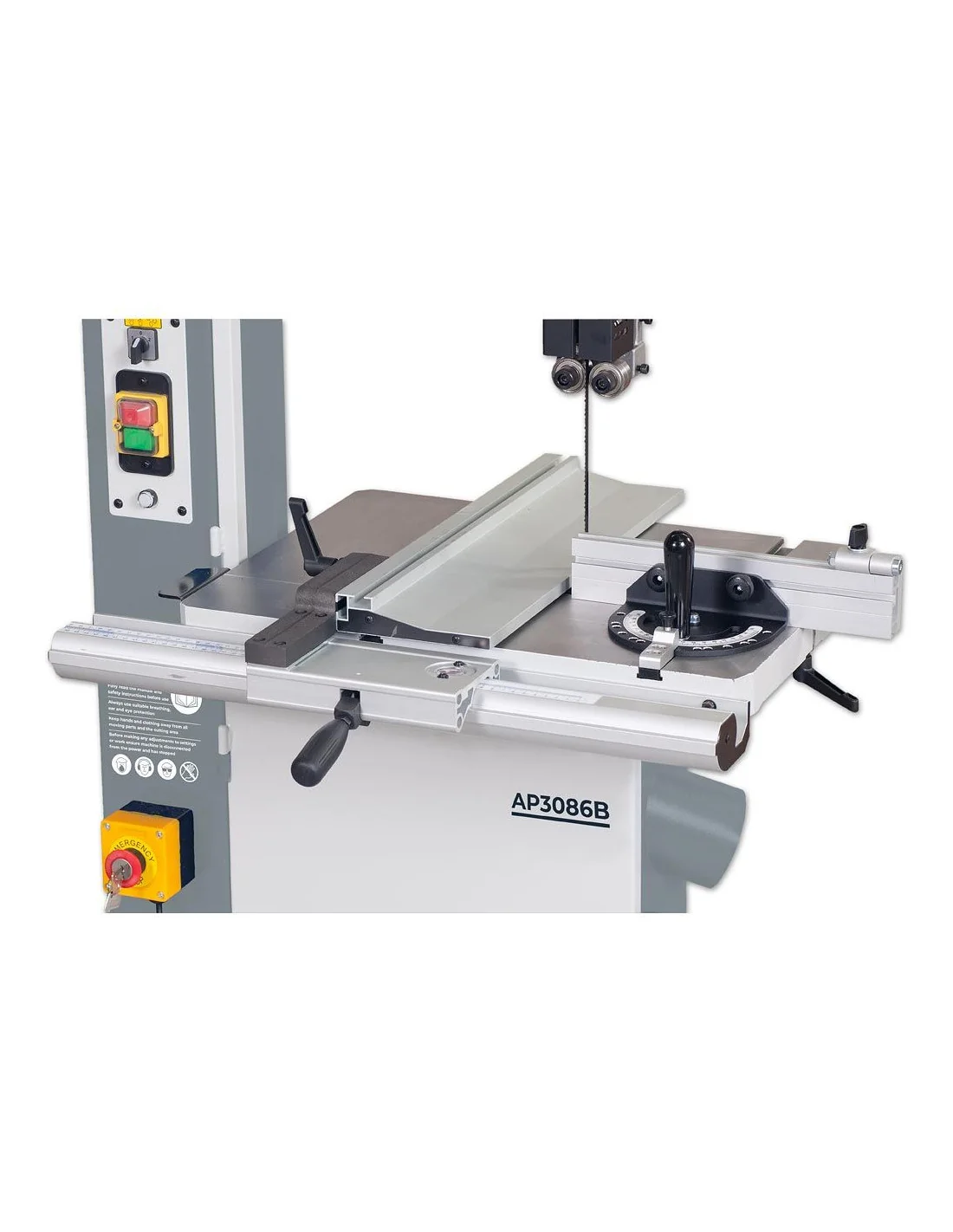

    This bandsaw packs a real punch with an unrivalled 350mm cutting depth. Manufactured in thick gauge welded steel and cast iron to a very high standard. The AP3086B is fitted with a key released emergency stop switch and interlocked doors for safe operation. There is a convenient tool and accessory storage cupboard in the lower half of the chassis. Plus, it comes fitted with a standard 3 pin plug, so you’re all ready to go. The electro-magnetically braked motor is smooth and powerful. The AP3086B features balanced, cast iron wheels, heavy duty bearing blade guides and a very rigid, full size cast iron table with tilt adjustment from -5° to +45° on a rack and pinion mechanism for ease of adjustment. Blade changing is done using a quick release blade tensioning lever, which greatly speeds up the process. The rip fence has a cast iron bracket and features a Hi/Lo fence rail for tall or thin work. A cam lock clamps the fence to the guide rail securely and a magnifying lens makes the scale easy to read. The mitre fence is a precision unit, fitted with an indexed position stop pin for easy and precise angle setting. Dust extraction is via 2 x 100mm ports, enabling dust-free use when connected to a suitable extractor. This AP3086B is fully compliant with both the requirements of BS 4163:2014 (educational establishments) and PUWR98 (workplace) regulations. Supplied with a 9.5mm x 6 tpi bandsaw blade.

    Product Details

    Table Height
    940 mm
    Max Width of Cut with Fence
    315 mm
    Max Width of Cut
    342 mm
    Bandsaw Blade Length
    3,086 mm (121.1/2")
    Max Cutting Height
    356 mm
    T Slot Size
    19 mm x 9.5 mm (3/4" x 3/8")
    Bandsaw Wheel Diameter
    355 mm
    Blade Speed
    720 m/min
    Blade Width Min\Max
    3 mm to 19 mm
    Table Tilt
    5° - 0° - 45°
    Table Size
    552 mm x 410 mm
    Table Height on Stand
    N/A
    Overall L x W x H
    740 mm x 825 mm x 1921 mm
    Dust Extraction Outlet
    2 x 100 mm
    Plug Fitted
    UK 3 pin plug
    Power
    1.5 kW
    Nett Weight
    145 kg
    Rating
    Trade/Professional
    Min Extraction Airflow Required
    1,500 m³/hr
    Sound Power Level LWA [Uncertainty K]
    100.1 dB(A) [2.0 dB]
    Sound Pressure Level LpA [Uncertainty K]
    83 dB(A) [2.0 dB]
    Voltage
    230 V
