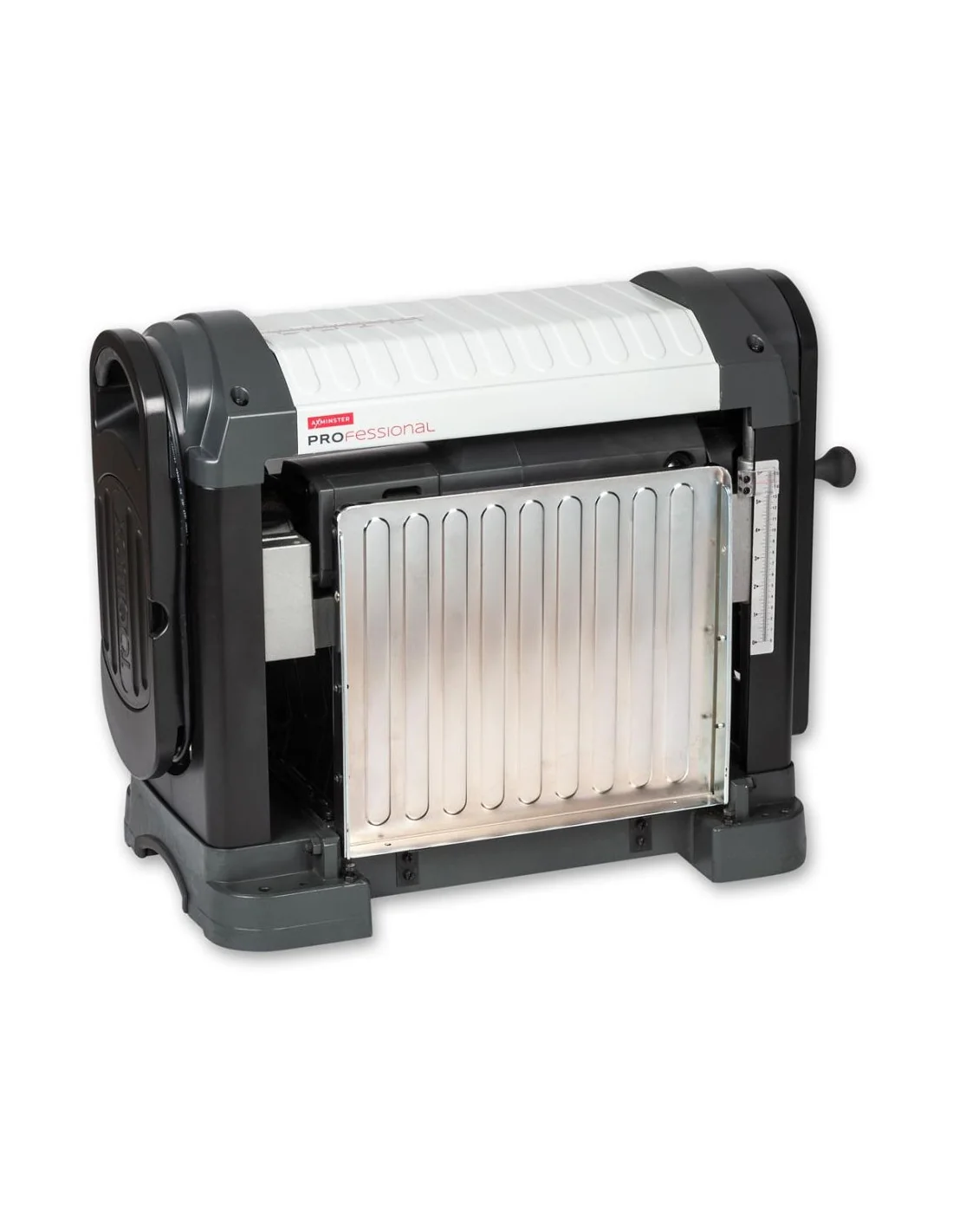

Axminster Professional AP330ST Portable Thicknesser - 230V
    Axminster Professional AP330ST Portable Thicknesser - 230V
    Axminster Professional AP330ST Portable Thicknesser - 230V
    Axminster Professional AP330ST Portable Thicknesser - 230V
    Axminster Professional AP330ST Portable Thicknesser - 230V
    Axminster Professional AP330ST Portable Thicknesser - 230V
    Axminster Professional AP330ST Portable Thicknesser - 230V
    Axminster Professional AP330ST Portable Thicknesser - 230V
    Axminster Professional AP330ST Portable Thicknesser - 230V
    Axminster Professional AP330ST Portable Thicknesser - 230V
    Axminster Professional AP330ST Portable Thicknesser - 230V
    Axminster Professional AP330ST Portable Thicknesser - 230V
    Axminster Professional AP330ST Portable Thicknesser - 230V
    Axminster Professional AP330ST Portable Thicknesser - 230V

    Axminster Professional AP330ST Portable Thicknesser - 230V

    109100
    BGN1,994.94
    • Spiral cutter block with 26 double edged HSS cutters
    • Combines accuracy with super smooth finish
    • Big capacity: max width 330mm, max depth 152mm
    • Capable of removing up to 3.2mm in one pass

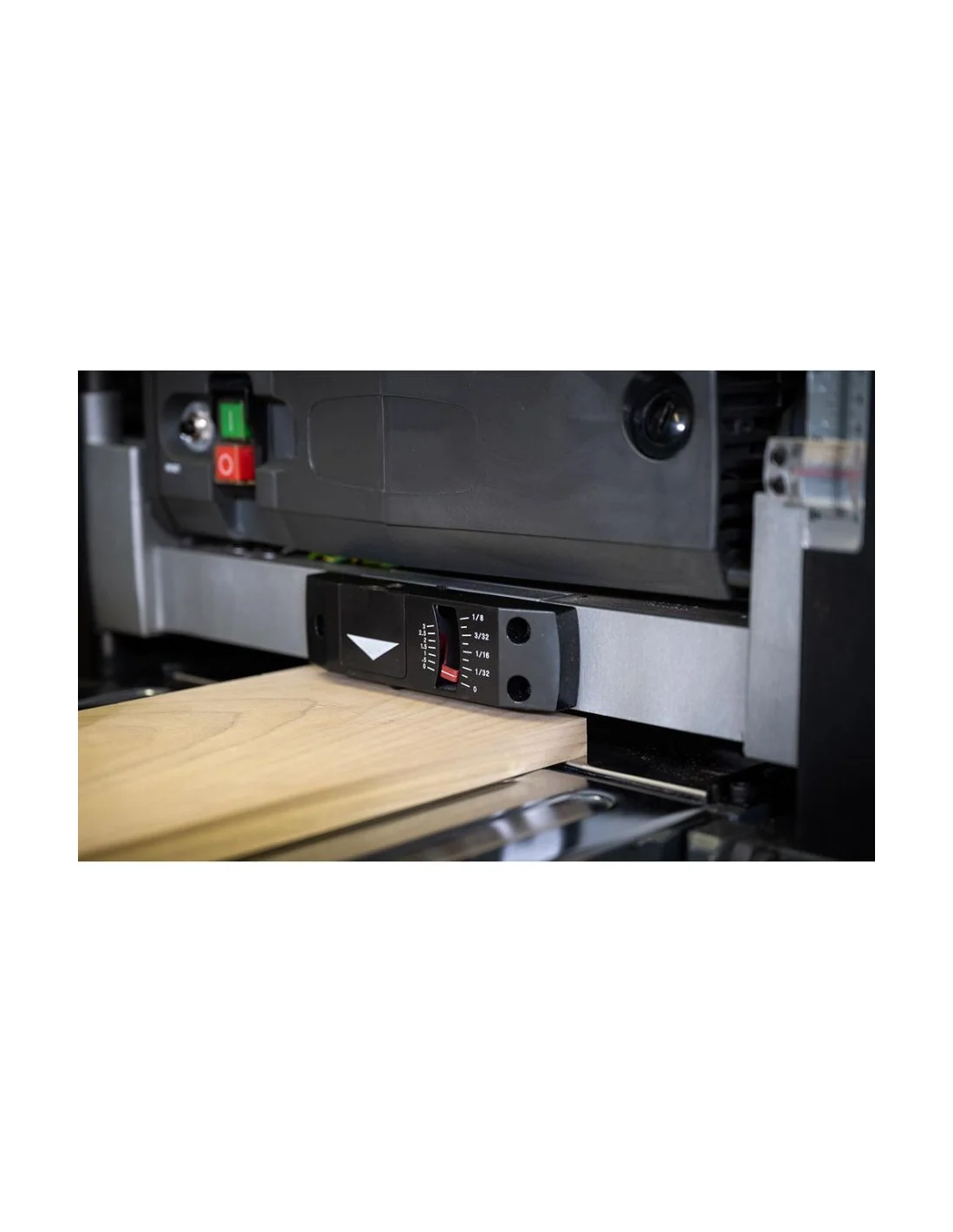

    • Simple depth of cut gauge for accurate setting
    • 8 pre-set depth stops at common timber thicknesses
    • Snipe Lock helps reduce snipe by locking the cutterhead

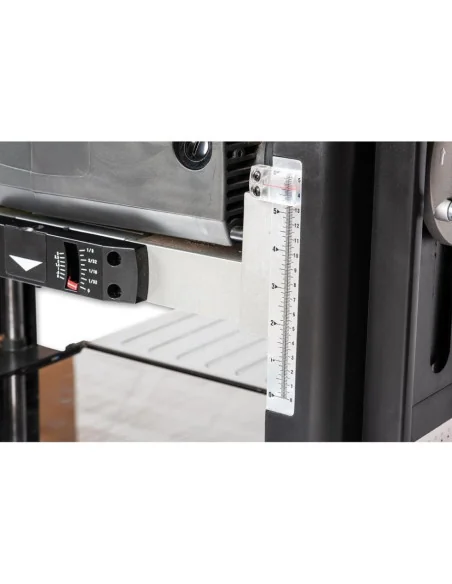

    • Rise and fall is smooth, with easy to read depth gauge
    • Left hand side features tool storage and cable tidy

    Description

    The Axminster Professional AP330ST thicknesser has a lot going for it. It’s a well constructed and thoughtfully designed machine with a solid feel about it. Capacities are excellent, with a maximum width of up to 330mm by 152mm deep. It is capable of removing up to 3.2mm in one pass (we would recommend taking off less if running at full width). The folding extension tables are easy to adjust for initial set-up. The AP330ST comes with a spiral cutter block fitted with 26 double edged HSS spur cutters. Extensive testing in our workshop proved these can easily cope with most timbers. The cutters are very sharp, a secondary bevel prolongs their life. The finish is super smooth, with almost no requirement for sanding. This type of block is noticeably quieter and puts less load on the motor. The waste chips are small, so they won’t clog your extractor hose even if using a vacuum type. Extraction has two outlet options either 100mm or 63mm (a blanking plug is supplied for the unused outlet). We found extraction to be very effective, with only a few stray chips escaping. Rise and fall is super smooth, via a handwheel on the right hand side. A depth gauge is provided on the front. Additionally, the AP330ST has eight pre-set depth stops: 3.2mm, 6.35mm, 12.7mm, 19mm, 25.4mm, 31.75mm, 38mm and 44.5mm. Engaging the Snipe Lock helps reduce snipe by locking the cutterhead into position. The front of the machine features a depth of cut gauge, which allows you to determine and set the exact amount you wish to take off. The left hand side features a handy tool storage compartment and a neat cable tidy. The AP330ST is an excellent addition to any workshop or job site.

    Product Details

    Max Thicknessing Width
    330 mm
    Table Size
    860 mm x 330 mm
    Overall L x W x H
    860 mm x 670 mm x 500 mm
    Knives
    HSS Spur Cutters x 26
    Dust Extraction Outlet
    100 mm & 63 mm
    Plug Fitted
    UK 3 pin plug
    Power
    1.8 kW
    Feed Speed
    8 m/min
    Nett Weight
    38 kg
    Rating
    Trade/Professional
    Min Extraction Airflow Required
    1,200 m³/hr
    Cutterblock Speed
    10,000 rpm
    Length of Table
    860 mm (including extensions)
    Max Depth of Cut Thicknesser
    3.2 mm
    Max Thicknessing Height
    152 mm
    Min Thicknessing Height
    3.0 mm
    Sound Power Level LWA [Uncertainty K]
    100 dB(A) [3.0 dB]
    Sound Pressure Level LpA [Uncertainty K]
    90 dB(A) [3.0 dB]
    Voltage
    230 V
