    107638
    BGN3,989.94
    • Strong, heavy duty, cast iron construction
    • 25mm capacity in softwood, 19mm in hardwood
    • Single handwheel controls both table movements

    Description

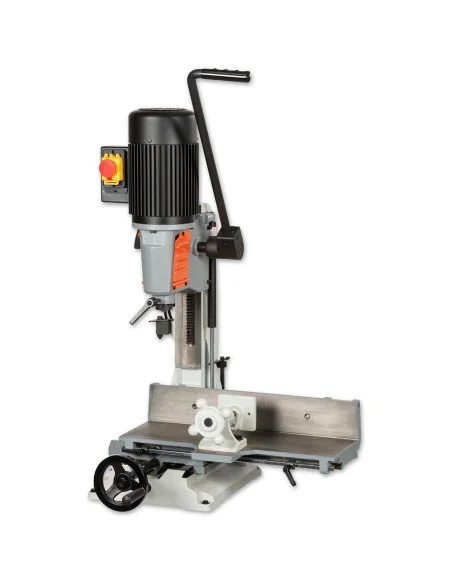

    The AP25BM is a robust, compact bench mounted chisel morticer, produced almost entirely from cast iron. This strong, heavy-duty construction gives the machine capacities of 25mm in softwood and 19mm in hardwood. A single handwheel controls both longitudinal and lateral table movement. This system makes controlling the movement a breeze. The table has a tall back fence, with lateral stops for repeat mortising. The depth stop includes a haunch stop. The multiple position material clamp can accommodate different workpiece widths. A gas strut provides smooth downward travel of the headstock and also allows headstock "parking" in any position. There is an optional floor stand, plus also a very useful door mortising attachment. This machine is well suited to a busy workshop and will provide many years of accurate and trouble-free service. It accepts chisels with either 3/4" or 13/16" shanks.

    Product Details

    Chisel Stroke
    125 mm
    Lateral Table Movement
    100 mm
    Longitudinal Table Movement
    410 mm
    Max Chisel Size Hardwood
    19 mm
    Max Chisel Size Softwood
    25 mm
    Max Height of Timber
    190 mm
    Centre of Chisel to Back Fence
    110 mm
    Overall L x W x H
    460 mm x 515 mm x 1,000 mm
    Plug Fitted
    UK 3 pin plug
    Power
    750 W
    Nett Weight
    85 kg
    Rating
    Trade/Professional
    Voltage
    230 V
