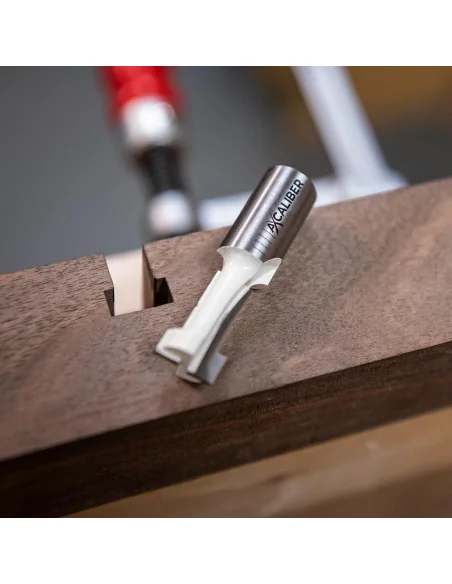

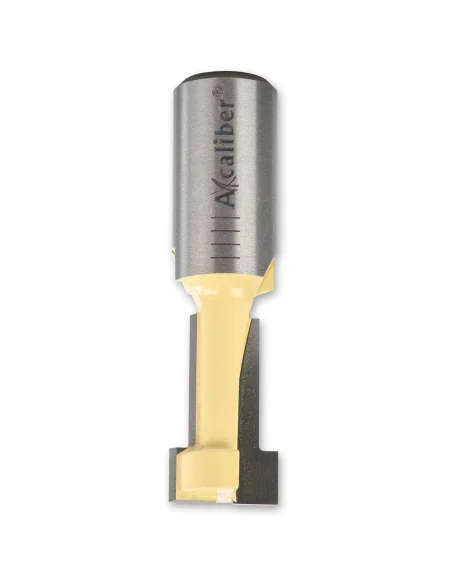

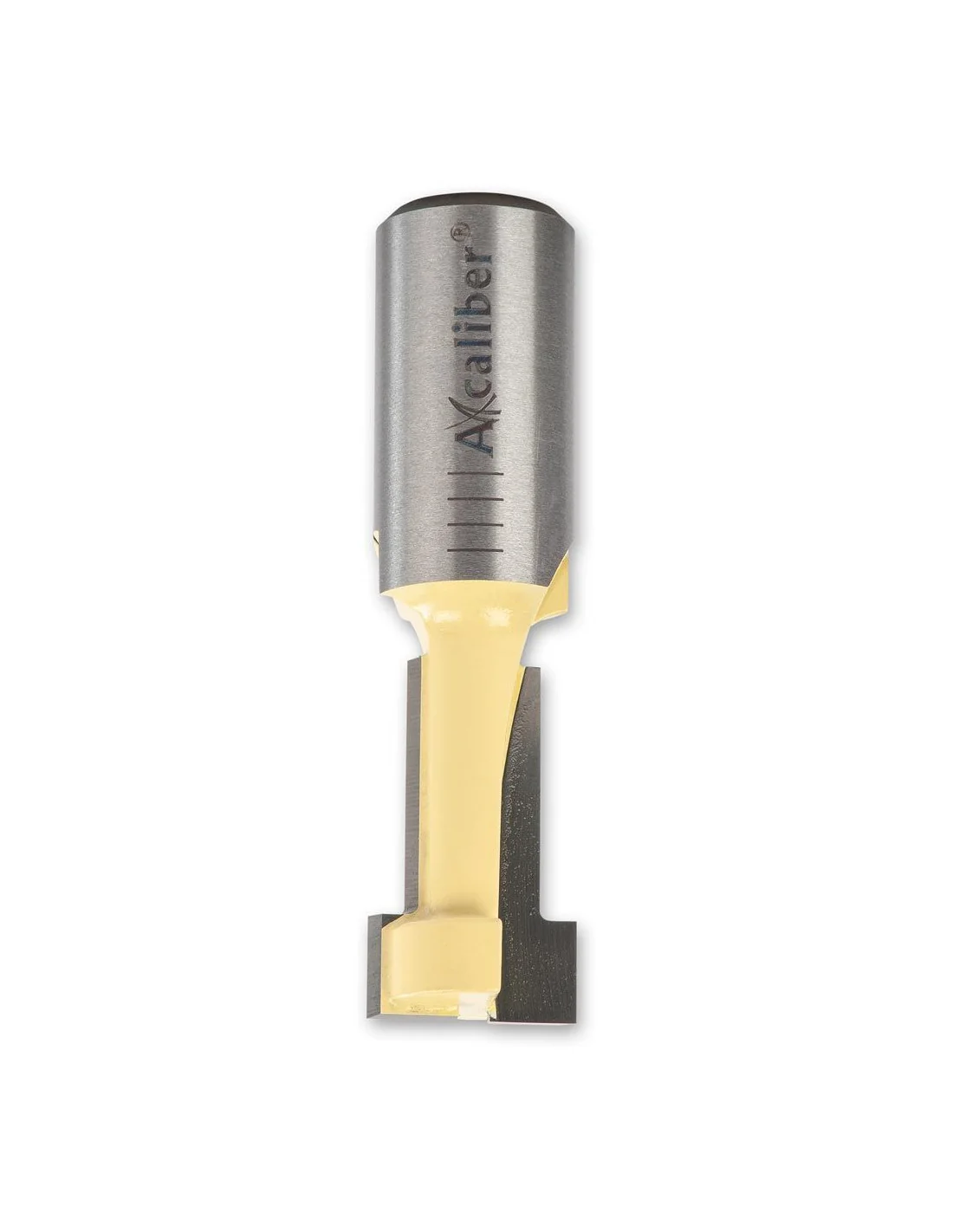

    Axcaliber T-Slot Cutter for Track Clamps

    101972
    BGN72.94
    • Use to cut a T-slot in a workbench or an assembly table
    • Enables use of guide rail clamps as hold-downs
    • Produce custom-made guide rails in hardwood
    • Cut a T-Slots in nylon for home-made
    • High shear-cut angle for cleaner finish
    • PTFE coating helps minimise resin build-up
    • 1/2" shank

    Description

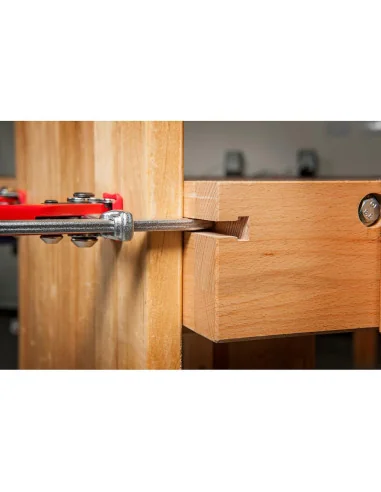

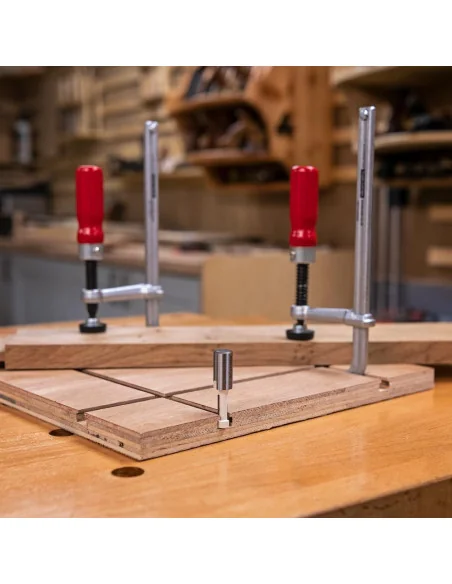

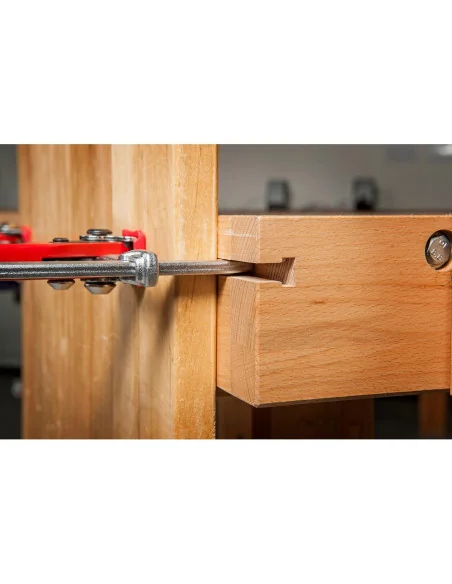

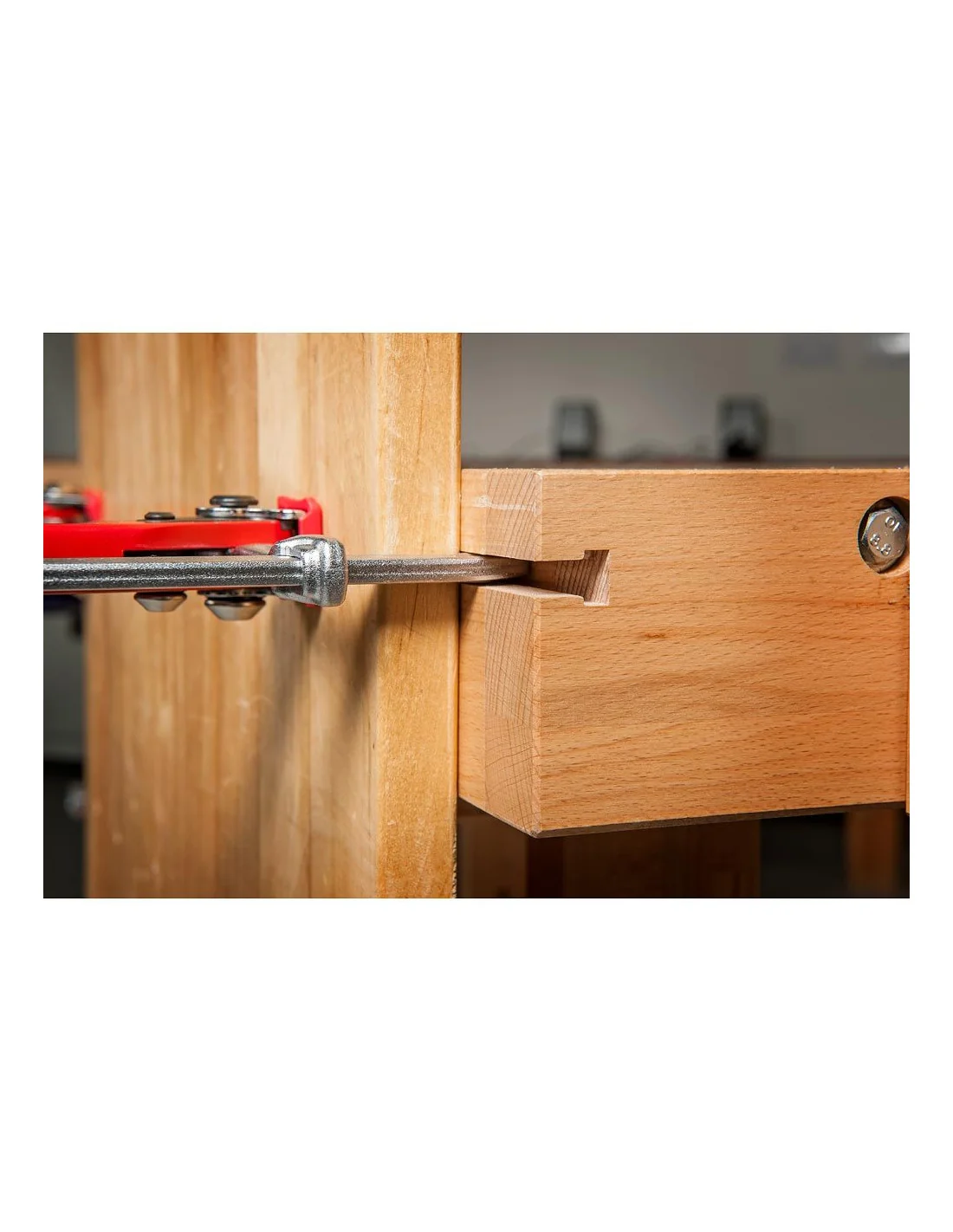

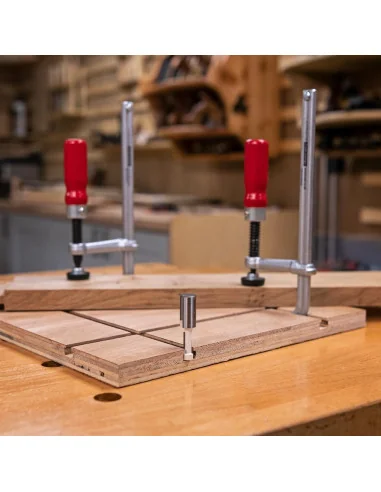

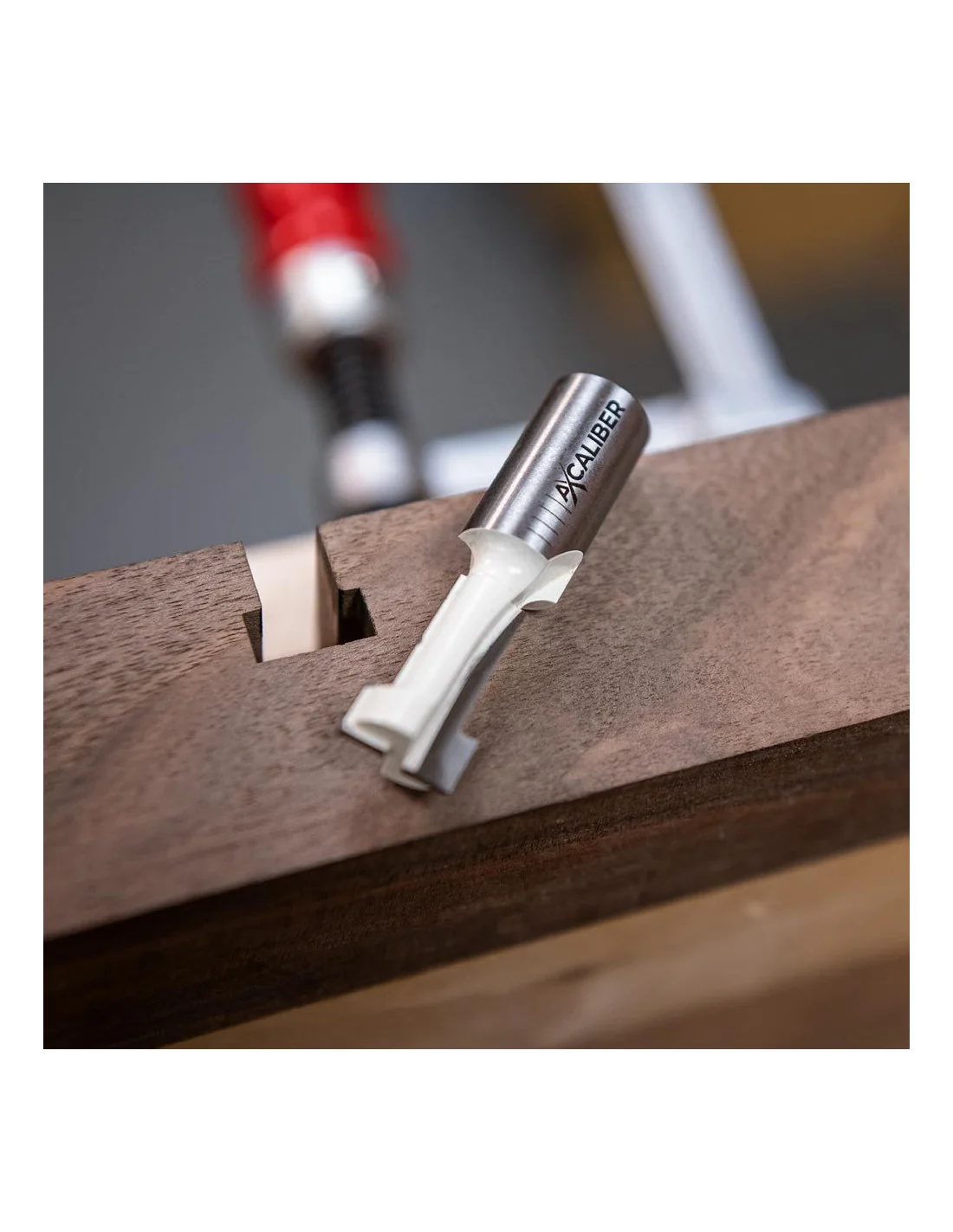

    Looking like an overgrown keyhole cutter, you can use this cutter to cut a T-slot in a workbench or an assembly table. Once cut the T-slot enables you to use Axminster (or Festool) guide rail clamps as hold downs when working on a piece or gluing up. Alternatively a length of hardwood with a T-slot cut along its length can become a custom made or temporary guide rail. in addition, you can cut a T-Slot in nylon if making jigs to your own design. We suggest you remove the bulk of the waste with a straight cutter of the same diameter as the neck of the cutter (dimension E) prior to using the T-slot cutter. Please note; When using this type of cutter it is recommended to use a small straight cutter first to remove some of the material and help prevent router overload.

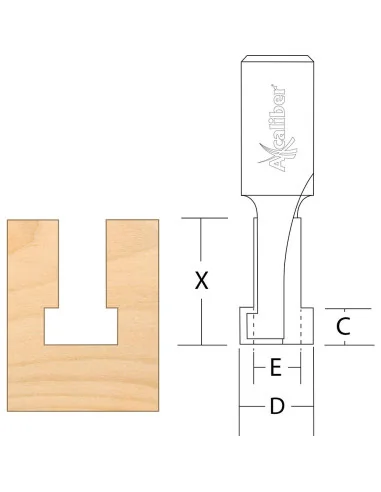

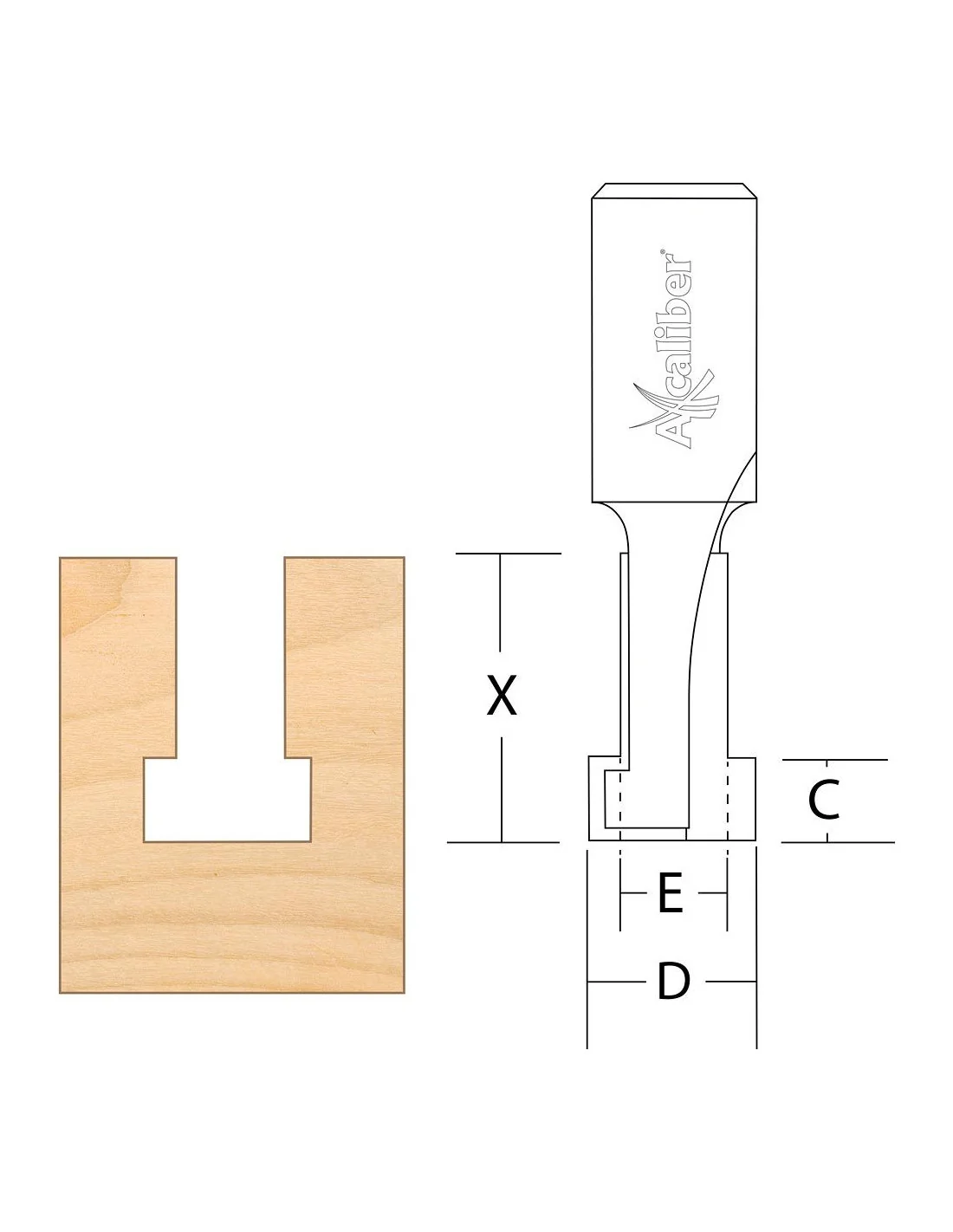

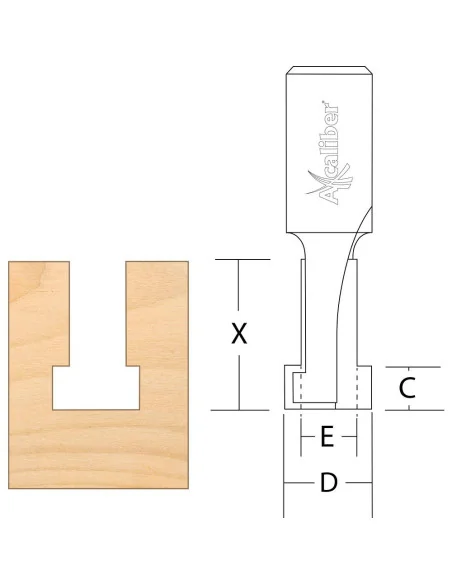

    Product Details

    D = Overall Diameter
    12.7 mm (1/2")
    E = Minor Diameter
    8.7 mm
    X = Depth of Cut
    23 mm
    C = Width of Groove
    6.5 mm
    Shank Diameter
    1/2" (12.7 mm)
    5052511065011
