Axminster Workshop AW2606B Bandsaw Kit
    Axminster Workshop AW2606B Bandsaw Kit
    Axminster Workshop AW2606B Bandsaw Kit
    Axminster Workshop AW2606B Bandsaw Kit
    Axminster Workshop AW2606B Bandsaw Kit

    Axminster Workshop AW2606B Bandsaw Kit

    • Resaw thick timber or cut thin veneers
    • Large depth of cut: 200mm with 360mm width of cut
    • Rigid, quick locking rip fence, cast iron table

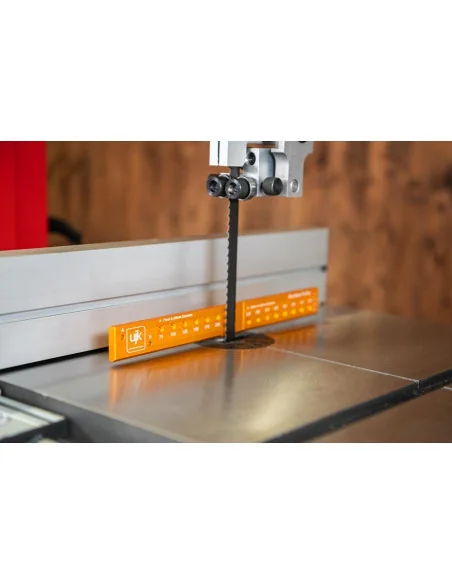

    • Kit to include bandsaw, UJK bandsaw buddy, mitre fence and blades
    -bg
    720994
    Изчерпано
    2182,94 лв.

    Описание

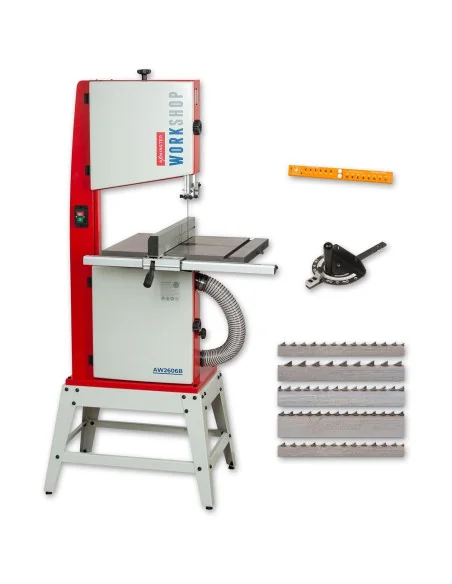

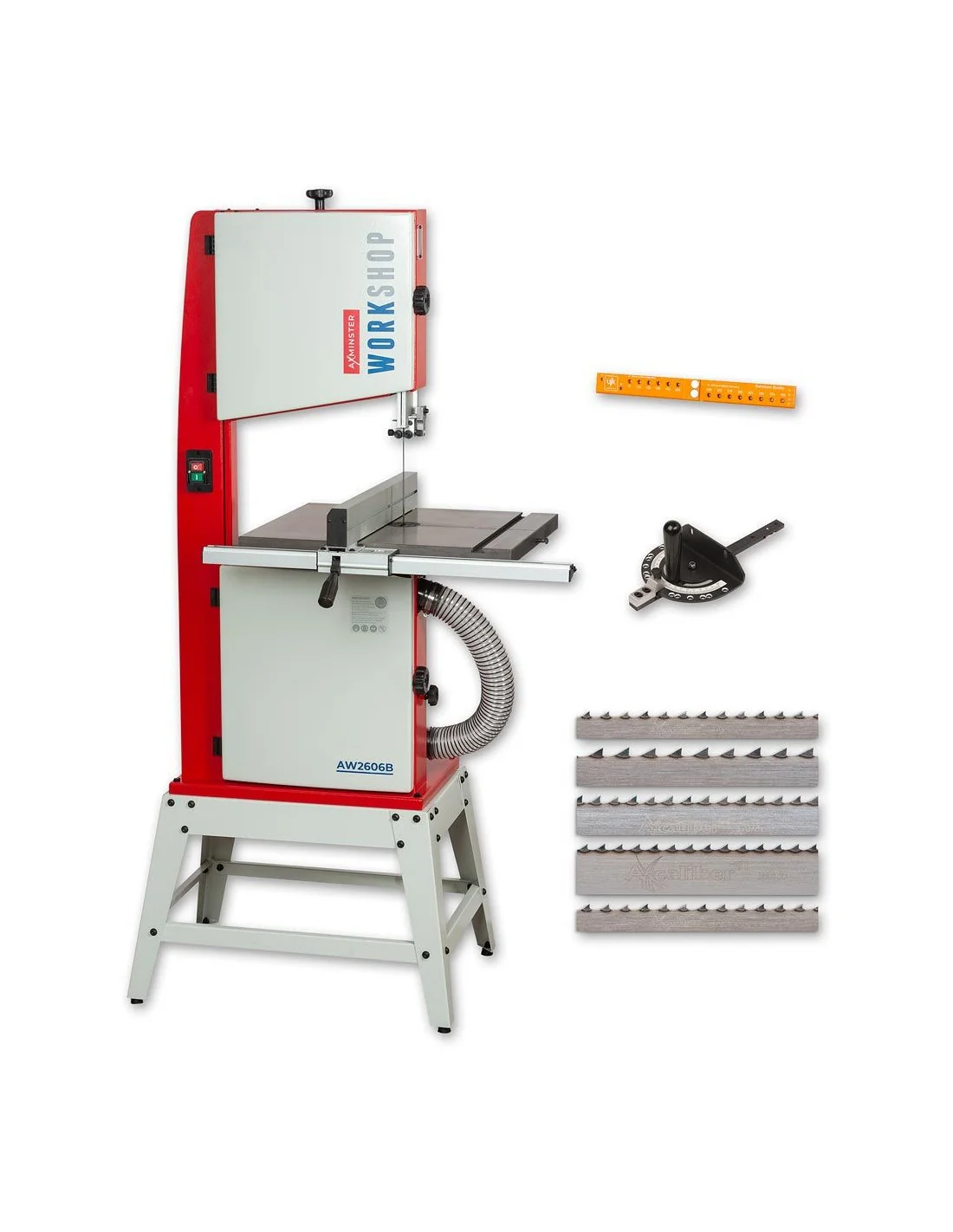

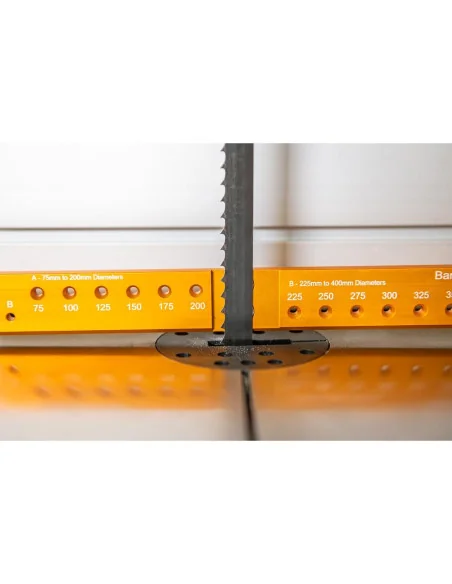

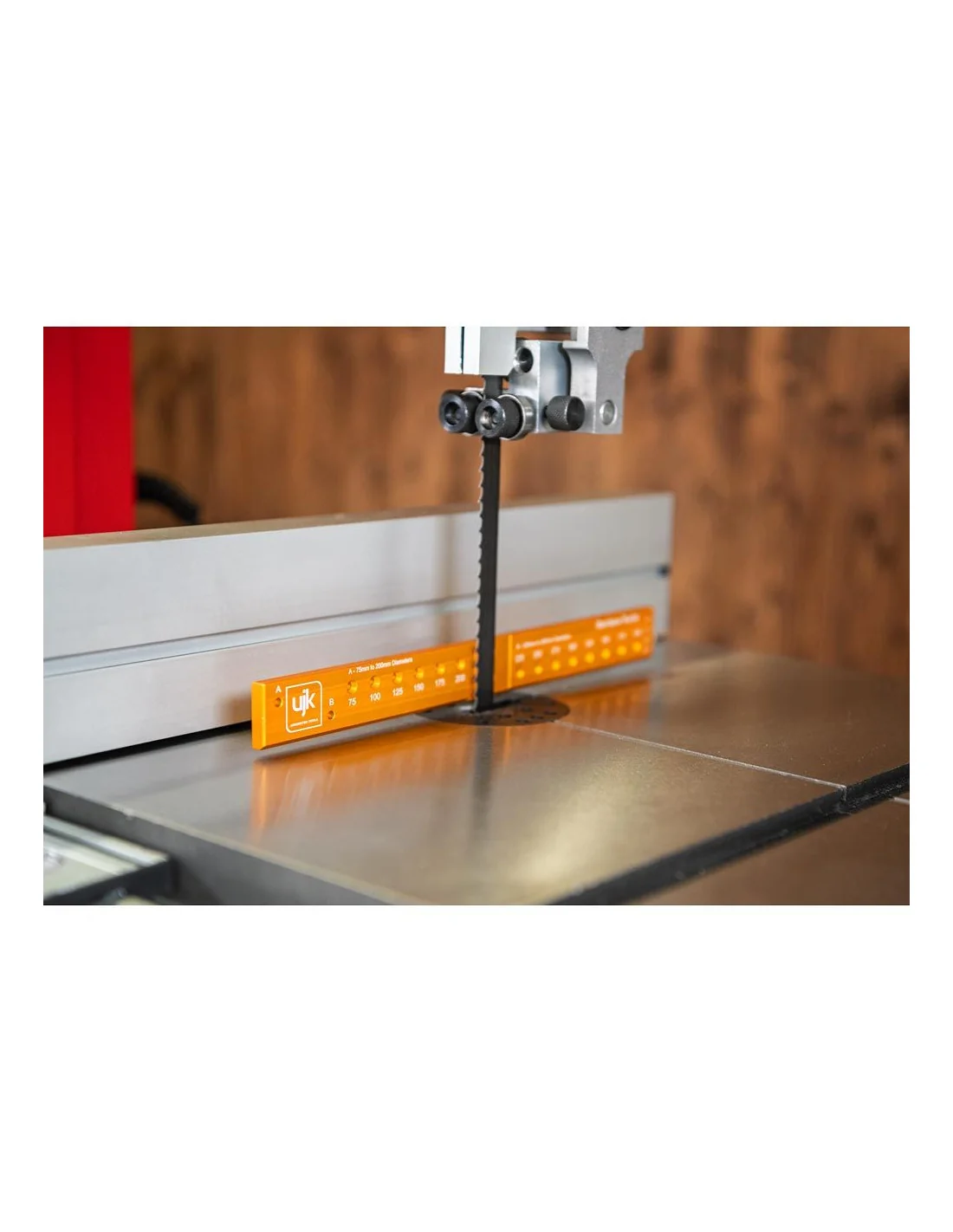

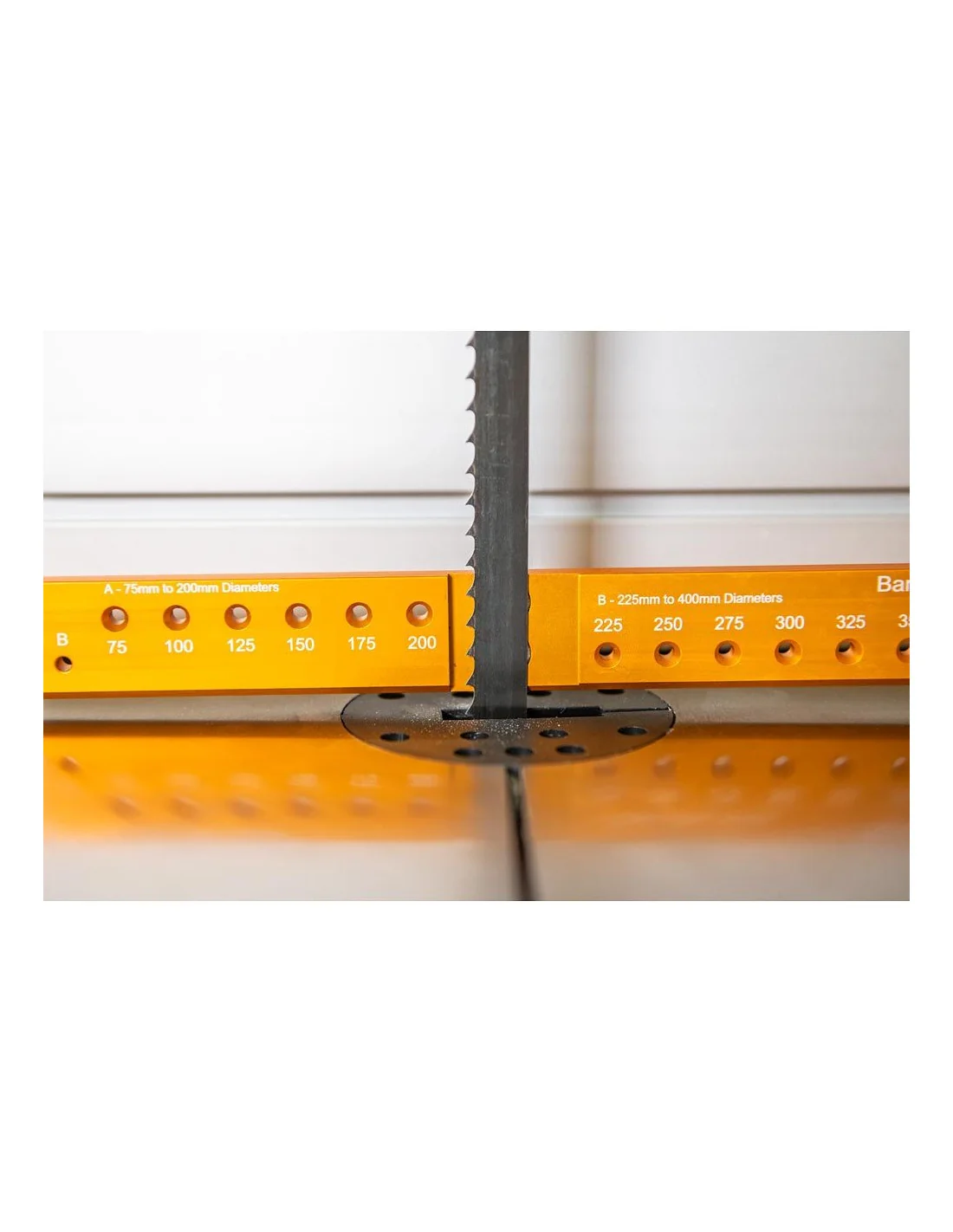

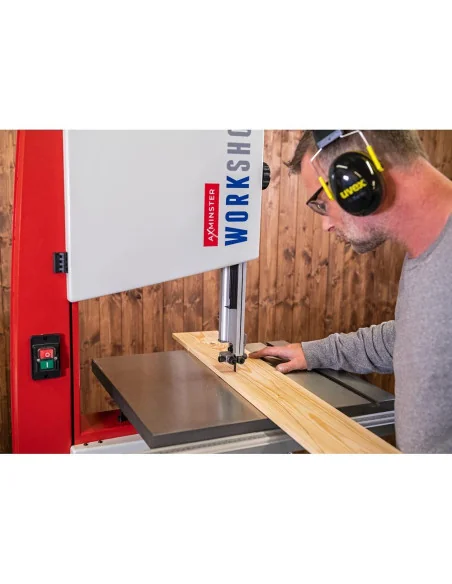

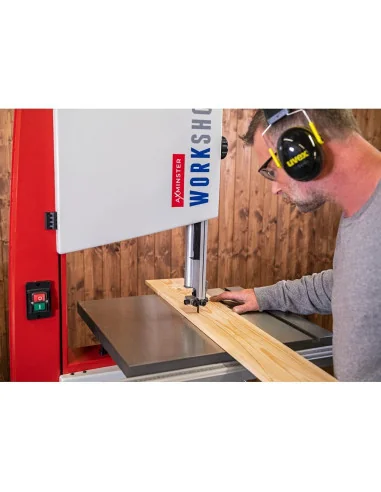

    This kit is supplied with the AW2606B Bandsaw, UJK Bandsaw Buddy, Axminster Workshop Mitre Fence for 19mm Slots and 5 Axcaliber Bandsaw Blades comprising of 1/4" x 6 tpi, 1/4" x 10 tpi, 3/8" x 4 tpi, 3/8" x 6 tpi and 1/2" x 6 tpi. Purchasing the AW2606B puts a powerful large capacity bandsaw in your workshop. A machine on which you can depend on to accurately slice thin veneers or resaw large chunks of timber, (we offer a wide range of blades for every task). A powerful, quiet and reliable alloy bodied induction motor drives the bandsaw through a multi V-belt . A choice of two blade speeds, gives you the right speed for any task. The AW2606B has a strong fabricated steel frame with a cast iron table and mountings. The generously sized, cast iron table has a standard 19mm mitre fence slot. The rip fence cam locks solidly to the front rail. Twin scales allow the fence to be used either side of the blade. Bearing guides offer excellent support for increased accuracy. A rack and pinion system provides easy adjustment of the upper blade guide. The two dust extraction points are interconnected and joined to a single 100mm outlet for coupling to a suitable extractor. Supplied with a splayed leg steel stand with rubber feet and a UK made general purpose 1/2" x 4tpi blade.-bg

    Подробности за продукта

    Височина на плота
    1,060 mm
    Максимална ширина на рязане с линеал
    260 mm
    Максимална ширина на рязане
    360 mm
    Дължина на лентовия трион
    2,606 mm (102.3/4")
    Максимална височина на рязане
    200 mm
    Размер на слота T
    19 mm x 9.5 mm (3/4" x 3/8")
    Диаметър на колелото на лентоотрезния трион
    370 mm
    Скорост на острието
    600 & 840 m/min
    Ширина на острието Min\Max
    6 mm to 19 mm
    Наклон на масата
    0° - 45°
    Размер на плота
    485 mm x 550 mm
    Височина на плота върху стойката
    N/A
    Обща дължина x ширина x височина
    980 mm x 760 mm x 1,740 mm
    Изход за прахоулавяне
    100 mm
    Монтиран щепсел
    UK 3 pin plug
    Захранване
    1.1 kW
    Рейтинг
    Home Workshop
    Необходим минимален въздушен поток за извличане
    1,000 m³/hr
    Ниво на звукова мощност LWA [Неопределеност K]
    98.5 dB(A) [3.0 dB]
    Ниво на звуково налягане LpA [Неопределеност K]
    84 dB(A) [3.0 dB]
    Напрежение
    230 V
    EAN Barcode
    5052511143443
    Model
    AW2606B
